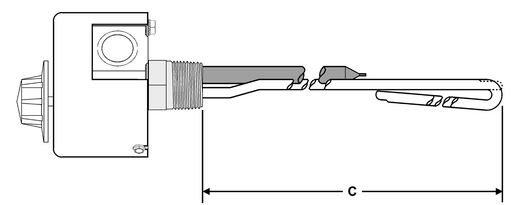

Therm Coil ESQ2 Models

Steel Sheath Elements:

If in doubt about which materials are required for your application, please contact us at 1-724-872-5007 or rheinhold@thermcoil.com.

• Steel Sheath with Steel Screw Plug (Nickel Brazed or Welded): Our SO models with 20-24 watt density (W/IN.²) are for use in lightweight oils.

 Regulated (With Thermostat):

• 60°-250°F Thermostat Control: This is the default thermostat temperature range if you choose a regulated heater.

• Alternate Temperature Ranges Are Available (Contact Us!):

            ●  30°-110°F
            ●  200°-550°F

NOTE - Regulated Models Require A Magnetic Contactor (sold separately) Unless They Are Rated:

• ≤240V And Single-Phase With An Amperage Rating Of 25 Amps Or Less.

Enclosure:

• NEMA 1, General Purpose Enclosure: the default enclosure type.

• Alternate Enclosures Are Available (Contact Us!):

            ●  Weather-Resistant Enclosures
            ●  Explosion-Resistant Enclosures (Also Dust & Weather-Resistant)
