1-1/2" Wide Chrome Steel Strip Heaters With Mounting Tabs and (2) #10-32 or #10-24 Screw Terminals Offset (Diagonal) At One End

General Product Description

Strip heaters are most commonly used in the surface heating of tanks and in industrial ovens as the heat source via flat-surface mounting and have hundreds of commercial and industrial applications.

  • Whenever the voltage to ground exceeds 300V, secondary insulators must be used.
  • All strip heaters may be used at voltages lower than rated for reduced wattage.
  • NOTE: For Units With Mounting Tabs: When supported by mounting tabs, the terminal end should be secured firmly. The opposite end should be loose to allow for thermal expansion.

Series Description

  • Chrome Steel Sheath: Suitable for applications where the sheath temperature does not exceed 1200°F MAX.
  • Mounting Tabs
  • (2x) At One End & Offset (Diagonal) Positioning: #10-32 or #10-24 Screw Terminals

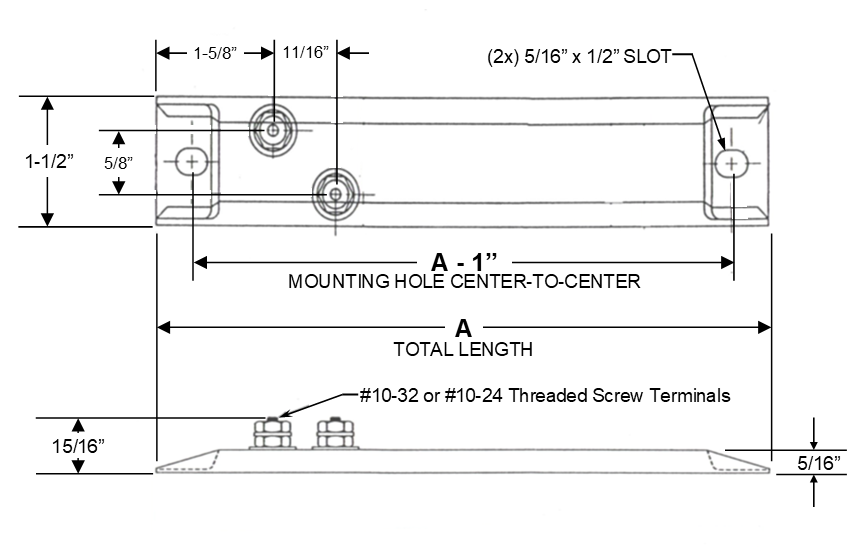

  • 1-1/2" Width x 6-1/8" to 43-1/2" Lengths: Total Length Is (A) DIM. On Diagram
  • Mounting Hole Center-to-Center: 1" Less Than Total Length
  • 175 to 2,000 Watts
  • 110, 120, 208, 240, 277, and 480 Volt

 Select Model-Specific Cross References

THERM COIL MODEL NO.

REPLACES DUKE OEM PART NO.

REPLACES SECO OEM PART NO.

STH-350H-18

TA-15A, TW-13B

0154800

STH-500L-18

TA-16

—-

STH-500H-18

TA-16B, TW-14, TW-14B

0154850

STH-750L-18

TA-17

—-

STH-750H-18

TA-17B, TW-15B

0154900

STH-1000L-18

TA-18, TW-16

—-

STH-1000H-18

TA-18B, TW-16B

0154950
