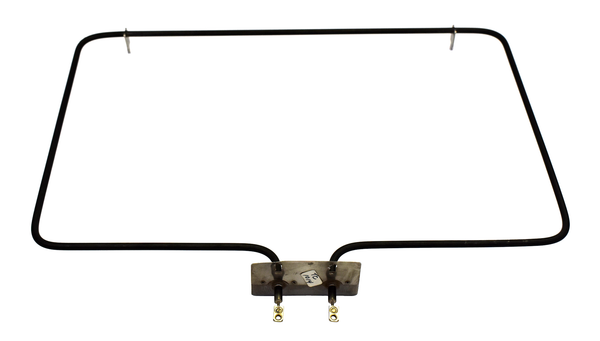

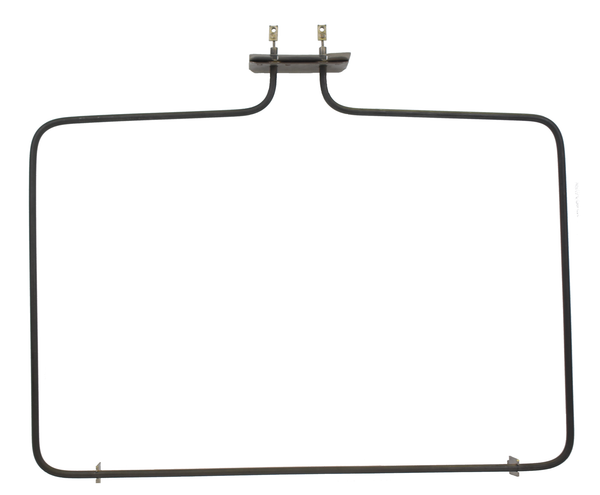

Model TC-1014: Roper / Kenmore 106618 / Whirlpool CH1014 Equivalent Range/Oven Bake Replacement Element, 1,800W @ 240V

Therm Coil Drawing No.: 366R-4133-002      Therm Coil Model No.: TC-1014

Description

• Replacement For Part Numbers:

Roper / Kenmore: 106618

Whirlpool: CH1014, 450597

Other: TS1014, TS1014/757, TS757, TS757/1014, YCH1014, AP3086745, AP3771488, 115425, TS757, TS757/1014

• 1800 W @ 240 V Rating

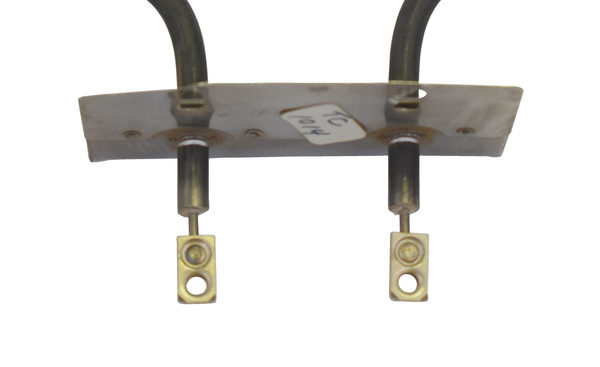

• Threaded Screw-in Terminals

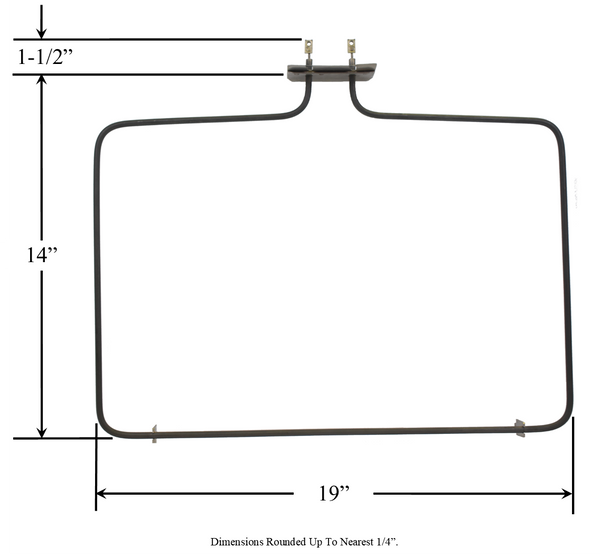

• Approx. Overall Size: 18-7/8" Width x 14" Length From Back Of Element To Mounting Brackets x 1-1/2" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.
• Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.

Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
