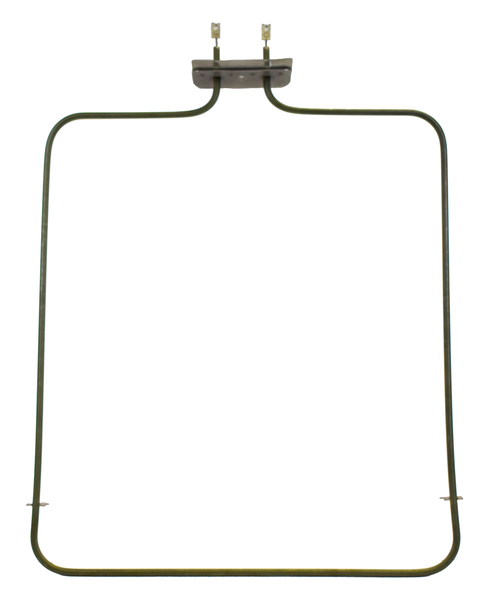

Model TC-4883: Frigidaire 6592 / Whirlpool CH4882 Equivalent Range/Oven Bake Replacement Element, 2,000W @ 208V

Therm Coil Drawing No.: 366R-4040-003      Therm Coil Model No.: TC-4883

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

• Replacement For Part Numbers:

Athens: P-141-15

Kenmore / Frigidaire: 5916, 6592

Whirlpool: CH4883, 457940

Other: AP4650649, AP3087004, AP3956029, 115701

• 2000 W @ 208 V Rating.

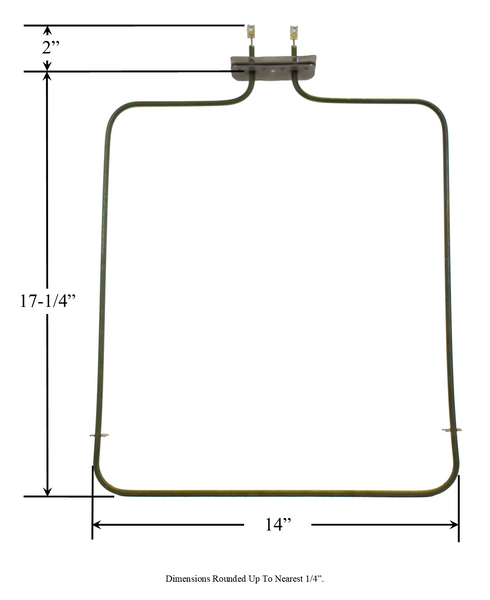

• Approx. Overall Size: 14" Width x 17-1/4" Length From Back Of Element To Mounting Brackets x 1-7/8" Insert From Bracket To Terminal Ends x 1-3/4' Center-to-Center Terminal Width.

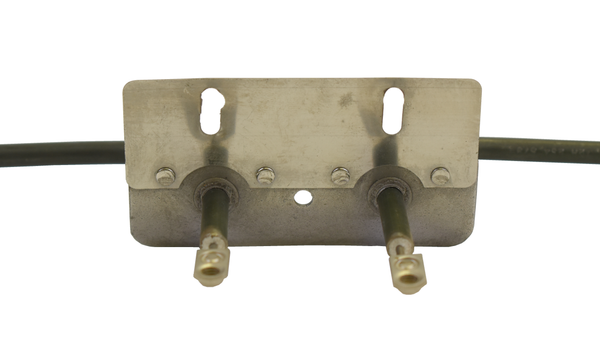

• Threaded Screw-In Terminals
• Used in various models of  Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, General Electric, Hotpoint, RCA, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
