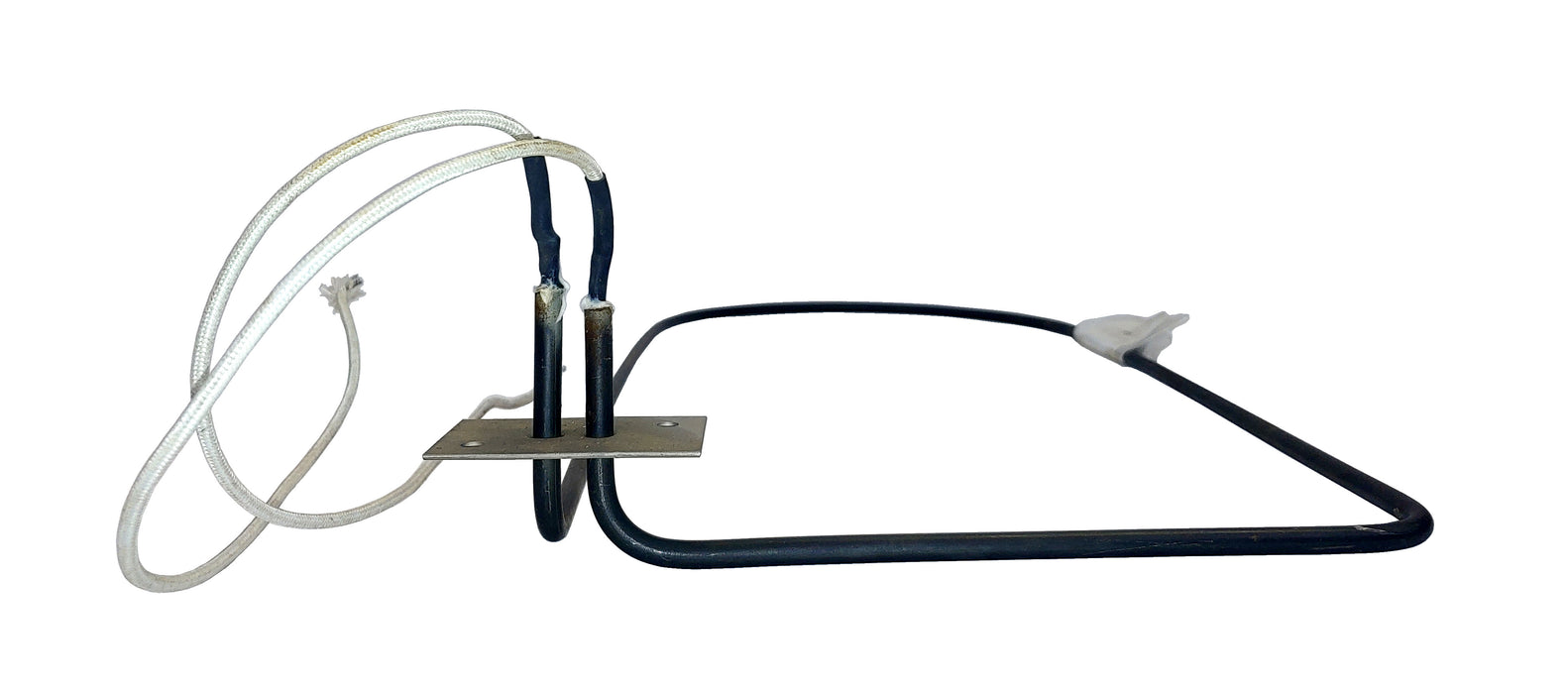

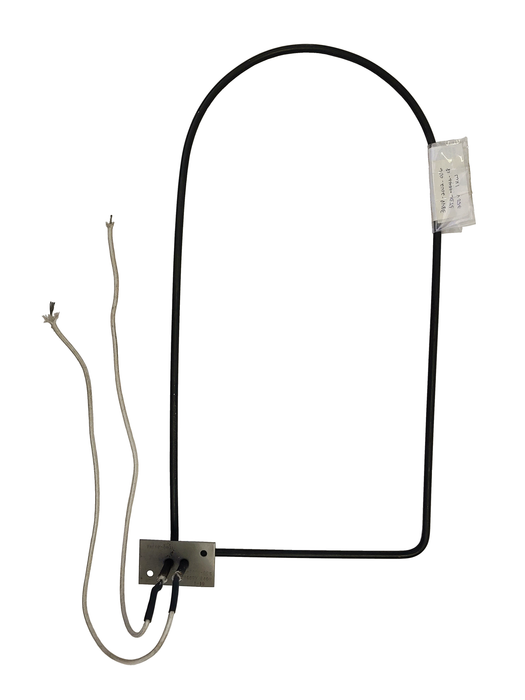

Duke Electric Sealed Food Warmer Replacement Equivalent Element - Dome Type, Corner Wired

General Description

  • For use in Duke Dome-type food warmers with corner wiring
  • High-Performance Incoloy alloy sheath element for long life
  • Rating: See Below For Individual Model Info

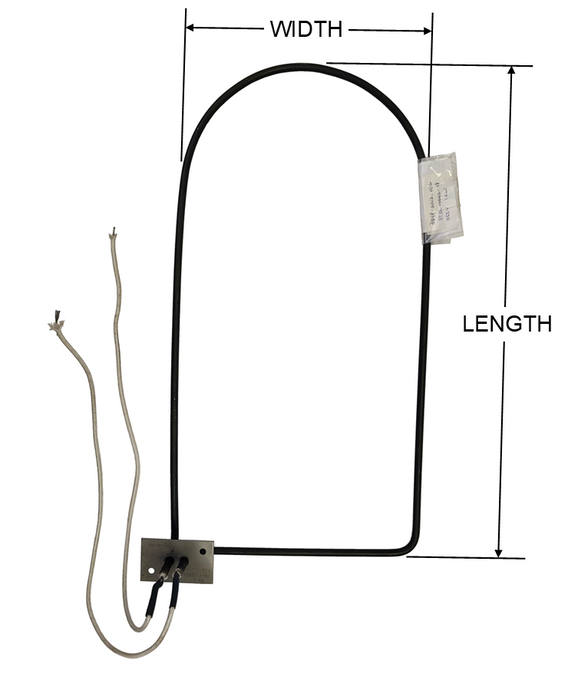

  • Approximate Overall Dimensions: See Below For Individual Model Info
  • Part Number Cross-References: See Below For Individual Model Info
  • Appliance Model Compatibility Cross-Reference: See Below For Individual Model Info
  • HELPFUL HINT: Use CTRL+F to use the search function for your Part Number or Appliance Model Number to quickly locate your part.

Model STDL-511-18B (Duke 212942 Equivalent)

  • Rating: 500 W @ 120 V (118 V)
  • Approximate Dimensions: 16-1/2" L x 8-1/2" W
  • Therm Coil Drawing Number: 384P-2002-014
  • STDL-1011-18B Replaces Part Numbers:

Duke 212942, Duke 2942-2, Duke 2402-2, Duke 2402, STDL-511-18, 342246, 876171001, 34-1367, ASC-341-367, HP212942, DUK2402-2, DUK2942-2, DUK2402

  • STDL-1011-18B Is Compatible With Duke Electric Sealed Well Food Warmer Models With Applicable Wattage and Voltage Rating:

ADI-1E-SW, ADI5ESW, ASI-1E-SW, ASI5ESW, E-2-CBPG, E-2-CBSS, E-6-CBPG, E-6-CBSS, E302-25, E302SW,E305-25, E305SW, HB2HF, HB5HF, NG32HF, NG74HF, TEHF-32, TEHF88, ADI1E, ADI2E, ADI3E, ADI4E, ADI5E, ASI1E, ASI2E, ASI3E, ASI4E, ASI5E, E302, E303, E304, E305, OPAH2, OPAH3, OPAH4, SUB-CP-TC, SUB-CP-TC48, SUB-CP-TC60, SUB-CP-TC74, SUB-CP-TC86, SUB-CU, SUB-C

Model STDL-711-18B (Duke 212943 Equivalent)

  • Rating: 750 W @ 120 V (118 V)
  • Approximate Dimensions: 16-1/2" L x 8-1/2" W
  • Therm Coil Drawing Number: 384P-2002-009
  • STDL-711-18B Replaces Part Numbers:

Duke 212943, Duke 2943-2, Duke 2403-2, Duke 2403, STDL-711-18, 342123, 876171003, 34-1256, ASC-341-256, HP212943, DUK2403-2, DUK2943-2, DUK2403

  • STDL-711-18B Is Compatible With Duke Electric Sealed Well Food Warmer Models With Applicable Wattage and Voltage Rating:

ADI-1E-SW, ADI5ESW, ASI-1E-SW, ASI5ESW, E-2-CBPG, E-2-CBSS, E-6-CBPG, E-6-CBSS, E302-25, E302SW,E305-25, E305SW, HB2HF, HB5HF, NG32HF, NG74HF, TEHF-32, TEHF88, ADI1E, ADI2E, ADI3E, ADI4E, ADI5E, ASI1E, ASI2E, ASI3E, ASI4E, ASI5E, E302, E303, E304, E305, OPAH2, OPAH3, OPAH4, SUB-CP-TC, SUB-CP-TC48, SUB-CP-TC60, SUB-CP-TC74, SUB-CP-TC86, SUB-CU, SUB-C

Model STDL-741-18 (Duke 2405 / 2405-2 Equivalent)

  • Rating: 750 W @ 240 V
  • Approximate Dimensions: 17-3/4" L x 9" W
  • Therm Coil Drawing Number: 384P-2002-003
  • STDL-741-18 Replaces Part Numbers:

Duke 2405-2, Duke 2405, DUK2405-2

  • STDL-741-18 Is Compatible With Duke Electric Sealed Well Food Warmer Models With Applicable Wattage and Voltage Rating:

ADI-1E-SW, ADI5ESW, ASI-1E-SW, ASI5ESW, E-2-CBPG, E-2-CBSS, E-6-CBPG, E-6-CBSS, E302-25, E302SW, E305-24, E305SW, HB2HF, HB5HF, NG32HF, NG74HF, TEHF-32, TEHF88

Model STDL-741-18B (Duke 212945 Equivalent)

  • Rating: 750 W @ 240 V (236 V)
  • Approximate Dimensions: 16-1/2" L x 8-1/2" W
  • Therm Coil Drawing Number: 384P-2002-011
  • STDL-741-18B Replaces Part Numbers:

Duke 212945, Duke 2945-2, Duke 2405-2, Duke 2405, STDL-741-18, 502270, 876171008, 34-1258, HP212945, DUK2405-2, DUK2945-2, DUK2405

  • STDL-741-18B Is Compatible With Duke Electric Sealed Well Food Warmer Models With Applicable Wattage and Voltage Rating:

ADI-1E-SW, ADI5ESW, ASI-1E-SW, ASI5ESW, E-2-CBPG, E-2-CBSS, E-6-CBPG, E-6-CBSS, E302-25, E302SW,E305-25, E305SW, HB2HF, HB5HF, NG32HF, NG74HF, TEHF-32, TEHF88, ADI1E, ADI2E, ADI3E, ADI4E, ADI5E, ASI1E, ASI2E, ASI3E, ASI4E, ASI5E, E302, E303, E304, E305, OPAH2, OPAH3, OPAH4, SUB-CP-TC, SUB-CP-TC48, SUB-CP-TC60, SUB-CP-TC74, SUB-CP-TC86, SUB-CU, SUB-C

Model STDL-1011-18B (Duke 212948 Equivalent)

  • Rating: 1000 W @ 120 V (118 V)
  • Approximate Dimensions: 16-1/2" L x 8-1/2" W
  • Therm Coil Drawing Number: 384P-2002-013
  • STDL-1011-18B Replaces Part Numbers:

Duke 212948, Duke 2948-2, Duke 2408-2, Duke 2408, STDL-1011-18, 342166, 876171007, 34-1913, ASC-341-913, HP212948, DUK2408-2, DUK2948-2, DUK2408

  • STDL-1011-18B Is Compatible With Duke Electric Sealed Well Food Warmer Models With Applicable Wattage and Voltage Rating:

ADI-1E-SW, ADI5ESW, ASI-1E-SW, ASI5ESW, E-2-CBPG, E-2-CBSS, E-6-CBPG, E-6-CBSS, E302-25, E302SW,E305-25, E305SW, HB2HF, HB5HF, NG32HF, NG74HF, TEHF-32, TEHF88, ADI1E, ADI2E, ADI3E, ADI4E, ADI5E, ASI1E, ASI2E, ASI3E, ASI4E, ASI5E, E302, E303, E304, E305, OPAH2, OPAH3, OPAH4, SUB-CP-TC, SUB-CP-TC48, SUB-CP-TC60, SUB-CP-TC74, SUB-CP-TC86, SUB-CU, SUB-C

Model STDL-1021-18 (Duke 2406 / 2406-2 Equivalent)

  • Rating: 1000 W @ 208 V
  • Approximate Dimensions: 17-3/4" L x 9" W
  • Therm Coil Drawing Number: 384P-2002-005
  • STDL-1021-18 Replaces Part Numbers:

Duke 2406-2, Duke 2406, DUK2406-2

  • STDL-1021-18 Is Compatible With Duke Electric Sealed Well Food Warmer Models With Applicable Wattage and Voltage Rating:

ADI-1E-SW, ADI5ESW, ASI-1E-SW, ASI5ESW, E-2-CBPG, E-2-CBSS, E-6-CBPG, E-6-CBSS, E302-25, E302SW, E305-24, E305SW, HB2HF, HB5HF, NG32HF, NG74HF, TEHF-32, TEHF88

Model STDL-1021-18B (Duke 212946 Equivalent)

  • Rating: 1000 W @ 208 V
  • Approximate Dimensions: 16-1/2" L x 8-1/2" W
  • Therm Coil Drawing Number: 384P-2002-012
  • STDL-1021-18B Replaces Part Numbers:

Duke 212946, Duke 2946-2, Duke 2406-2, Duke 2406, STDL-1021-18, 342140, 876171005, 34-1259, ASC-341-259, HP212946, DUK2406-2, DUK2946-2, DUK2406

  • STDL-1021-18B Is Compatible With Duke Electric Sealed Well Food Warmer Models With Applicable Wattage and Voltage Rating:

ADI-1E-SW, ADI5ESW, ASI-1E-SW, ASI5ESW, E-2-CBPG, E-2-CBSS, E-6-CBPG, E-6-CBSS, E302-25, E302SW,E305-25, E305SW, HB2HF, HB5HF, NG32HF, NG74HF, TEHF-32, TEHF88, ADI1E, ADI2E, ADI3E, ADI4E, ADI5E, ASI1E, ASI2E, ASI3E, ASI4E, ASI5E, E302, E303, E304, E305, OPAH2, OPAH3, OPAH4, SUB-CP-TC, SUB-CP-TC48, SUB-CP-TC60, SUB-CP-TC74, SUB-CP-TC86, SUB-CU, SUB-C

Model STDL-1041-18 (Duke 2404 / 2404-2 & 2407 / 2407-2 Equivalent)

  • Rating: 750 W @ 208 V or 1,000 W @ 240V (236V)
  • Approximate Dimensions: 17-3/4" L x 9" W
  • Therm Coil Drawing Number: 384P-2002-006
  • STDL-1021-18 Replaces Part Numbers:

Duke 2404-2, Duke 2407-2, Duke 2404, Duke 2407, DUK2404-2, DUK2407-2, STDL-721-18

  • STDL-1041-18 Is Compatible With Duke Electric Sealed Well Food Warmer Models With Applicable Wattage and Voltage Rating:

ADI-1E-SW, ADI5ESW, ASI-1E-SW, ASI5ESW, E-2-CBPG, E-2-CBSS, E-6-CBPG, E-6-CBSS, E302-25, E302SW, E305-24, E305SW, HB2HF, HB5HF, NG32HF, NG74HF, TEHF-32, TEHF88

Model STDL-1041-18B (Duke 212944 & 212947 Equivalent)

  • Rating: 750 W @ 208 V or 1,000 W @ 240V (236V)
  • Approximate Dimensions: 16-1/2" L x 8-1/2" W
  • Therm Coil Drawing Number: 384P-2002-008
  • STDL-1021-18B Replaces Part Numbers:

Duke 212944, Duke 212947, Duke 2404-2, Duke 2407-2, Duke 2404, Duke 2407, Duke 2944-2, Duke 2947-2, STDL-721-18, STDL-1041-18, 342158, 342123, 876171006, 876171003, 34-1257, 34-1260, ASC-341-257, ASC-341-260, HP212944, HP212947, DUK212944, DUK212947, DUK2944-2, DUK2947-2, DUK2407-2, DUK2404-2, DUK2407, DUK2404

  • STDL-1021-18B Is Compatible With Duke Electric Sealed Well Food Warmer Models With Applicable Wattage and Voltage Rating:

ADI-1E-SW, ADI5ESW, ASI-1E-SW, ASI5ESW, E-2-CBPG, E-2-CBSS, E-6-CBPG, E-6-CBSS, E302-25, E302SW,E305-25, E305SW, HB2HF, HB5HF, NG32HF, NG74HF, TEHF-32, TEHF88, ADI1E, ADI2E, ADI3E, ADI4E, ADI5E, ASI1E, ASI2E, ASI3E, ASI4E, ASI5E, E302, E303, E304, E305, OPAH2, OPAH3, OPAH4, SUB-CP-TC, SUB-CP-TC48, SUB-CP-TC60, SUB-CP-TC74, SUB-CP-TC86, SUB-CU, SUB-C







Disclaimers: Duke is a registered trademark of Duke Manufacturing Co. Corporation.  Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name steam tables and food warmers.
