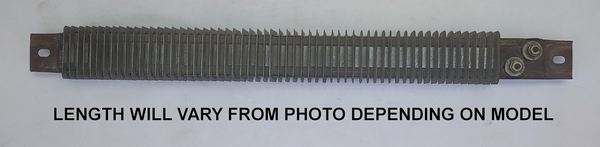

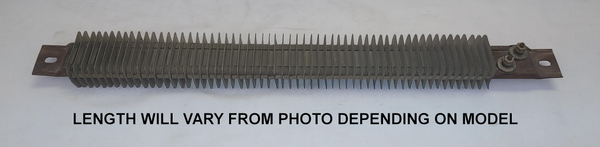

Finned Chrome Steel Strip Heaters With Mounting Tabs and (2) #10-32 or #10-24 Screw Terminals Offset (Diagonal) At One End

General Product Description

Finned Strip heaters are most commonly used for natural convection air heating (mounted at the bottom inside cabinet-type ovens) and forced air heating (mounted inside a duct).

  • Whenever the voltage to ground exceeds 300V, secondary insulators must be used.
  • All strip heaters may be used at voltages lower than rated for reduced wattage.
  • NOTE: For Units With Mounting Tabs: When supported by mounting tabs, the terminal end should be secured firmly. The opposite end should be loose to allow for thermal expansion.

Series Description

  • Chrome Steel Sheath With Fins
  • Mounting Tabs
  • (2x) At One End & Offset (Diagonal) Positioning: #10-32 or #10-24 Screw Terminals

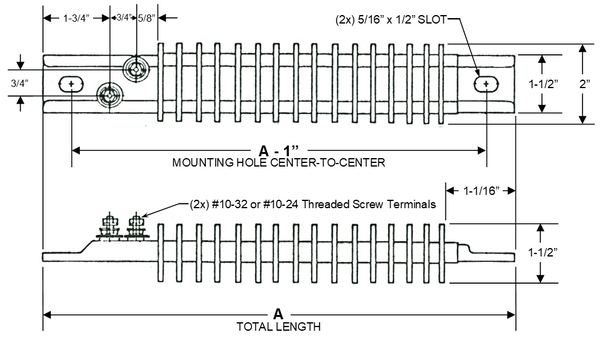

  • 12" to 42-1/2" Lengths: Total Length Is (A) DIM. On Diagram
  • 2" Fin Width x 1-1/2" Fin Height
  • Mounting Hole Center-to-Center: 1" Less Than Total Length
  • 250 to 3,450 Watts
  • 120, 200, 208, 230, 240, 380, and 480 Volt
