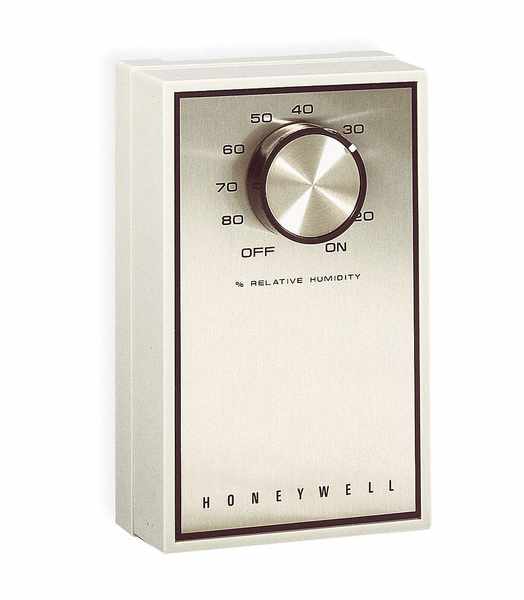

Therm Coil Drawing No.: 337T-3003-003

Therm Coil Model No: H46C1166

Honeywell Model No.: H46C1166

Features

• Provide automatic control of a humidifier or dehumidifier for dehumidification in air conditioning systems.
• Positive ON-OFF settings permit manual operation of controlled equipment
• Impact-resistant, molded plastic cover mounts on wall
• Fully enclosed, dust free, SPST, snap-acting switch
• Sensing element of thin, moisture sensitive nylon ribbon provides reliable operation even when ambient temperature conditions change

• 20% - 80% Relative Humidity Operating Range
• Temperature Range: 50°F to 125°F (10°C to 52°C)

Specifications

• Operating Humidity Range: 20% - 80% Relative Humidity

• Temperature Range: 50°F to 125°F (10°C to 52°C)
• Voltage: 24 VAC; 120 VAC; 240 VAC
• Electrical Ratings:  7.5 Amps @ 120 VAC Full Load
                                  12 Amps @ 120 VAC Res.
                                  30 Amps @ 240 VAC, Locked Rotor
                                  3.75 Amps @ 240 VAC Full Load
                                  6 Amps @ 240 VAC Res.
                                  15 Amps @ 240 VAC, Locked Rotor
• Scale: % Relative Humidity

• Humidity Differential: ±4-6%
• Control: Analog

• Dimensions, Approximate: 4-11/16" H x 2-15/16" W x 2-1/8" D
• Color: Premier White®

• Application: Residential, Commercial, & Industrial Dehumidification Applications

• Approvals: U.L. Approved & C.S.A. Certified

Equivalent to Part Numbers:

Honeywell: H46C1166
