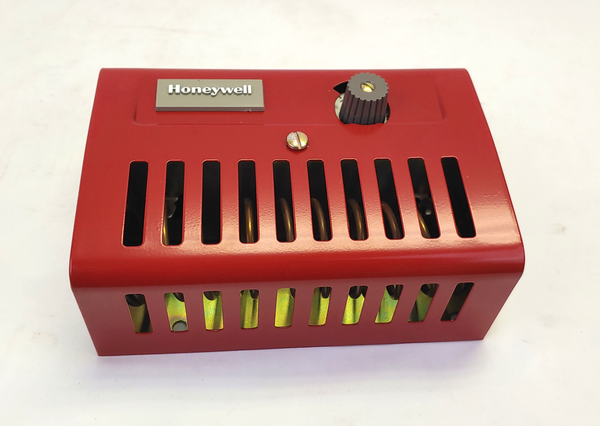

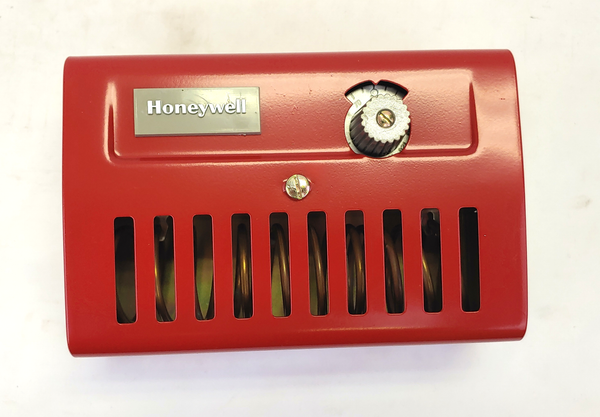

Honeywell T631A1022 Farm-O-Stat Agriculture Temperature Controller, (1x) SPDT, 70°-140°F, 120/240VAC

Therm Coil Model No.: T-631A-1022

Honeywell Model No.: T631A1022

Description

The Honeywell T631A1022 provides line voltage control of heating, cooling and ventilating systems in farm buildings or storage areas

Features

• Commonly Used In: barns, milk houses, poultry houses, crop storage houses, pump houses, and hog barns.
• Temperature Range: 70°F to 140°F
• Treated to Resist Corrosion: Treated, rugged steel case and SPDT snap switches permanently sealed against corrosion.
• Low 2°F Differential: The slots in the front and bottom of the case provide maximum air circulation over the coiled sensing element.
• Easy Mounting: screws through holes in back of case.

Specifications

• Setpoint Temperature Range: 70°F - 140°F Cool Only

• Maximum Operating Temperature: 150°F
• Voltage: 20VAC to 240VAC
• Electrical Ratings:  7.4 Amps @ 120 VAC Full Load
                                  44.4 Amps @ 120 VAC, Locked Rotor
                                  3.7 Amps @ 240 VAC Full Load
                                  22.2 Amps @ 240 VAC, Locked Rotor

• Switch: (1x) SPDT

• Switch Action: Close on Temperature Rise
• Temperature Sensor: Coiled Copper Tube
• Differential: ±2°F

• Control: Analog

• Dimensions, Approximate: 4-5/16" H x 6-1/16" W x 2-7/8" D
• Mount Type: Screws Through Holes in Back of Case
• Application: Residential, Commercial, and Industrial Agricultural Applications
