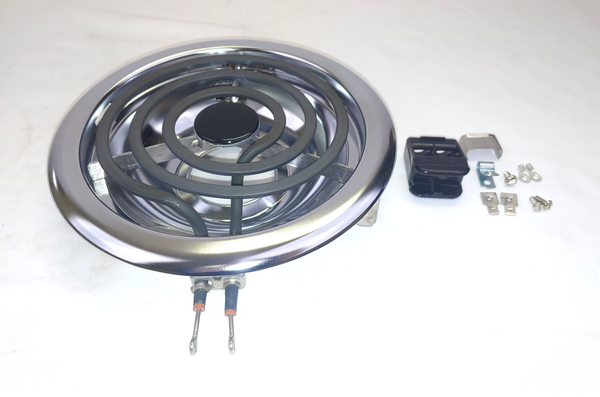

Model ASP-12YA-K: Whirlpool SP12YA Equivalent Replacement 6" Surface Element With Pan, Ring, & Conversion Kit For Ranges/Ovens, 1,250W / 940W @ 240V / 208V

List price $ 0.00

Therm Coil Drawing No.: 370D-1038-001      Therm Coil Model No.: ASP-12YA-K


  • Small 6" Surface Element Replacement With (3) Turns: Directly replaces hundreds of models.
  • Rating: 1250 W @ 240 V or 940 W @ 208 V
  • Bracket Style:  Heavy-Duty Y-Style (Wye)
  • Terminals: Push-In  Nickel Over Steel "Looped Ends" but can be converted to hard-wired terminal installation with the included conversion kit.
  • Used In Numerous Whirlpool Ranges and Stoves: Whirlpool Brands may include Whirlpool, Maytag, Kenmore, Crosley, Vesta, KitchenAid, Admiral, Amana, Caloric, Jenn-Air, Roper, Inglis, Estate, Magic Chef.

Replacement For Part Numbers:

  • Whirlpool: SP12YA, 056824-018
  • Chromalox / Supco / Emerson: SP12YA, SU201, 501022, 501024, 230-056824-018, 056824-018, 056824018
  • Other: TJ90SP12YA, TJSU201, AP6326943, 832386, AP3087711, 238001, ERS36Y12



Therm Coil MFG. Co. is not affiliated with House of Webster, Whirlpool Corporation, Sears, or any listed manufacturers of their affiliates.
