Therm Coil Drawing No.: 370D-1019-003 Therm Coil Model No.: MC45-R6R
Description

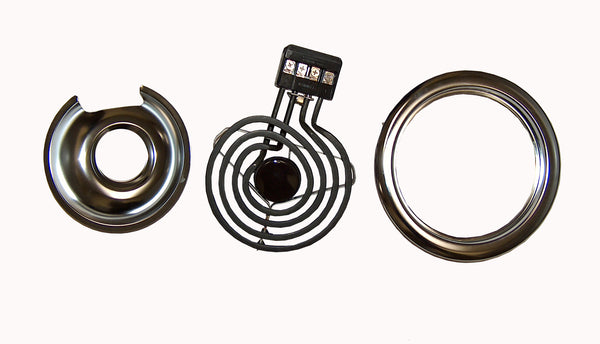

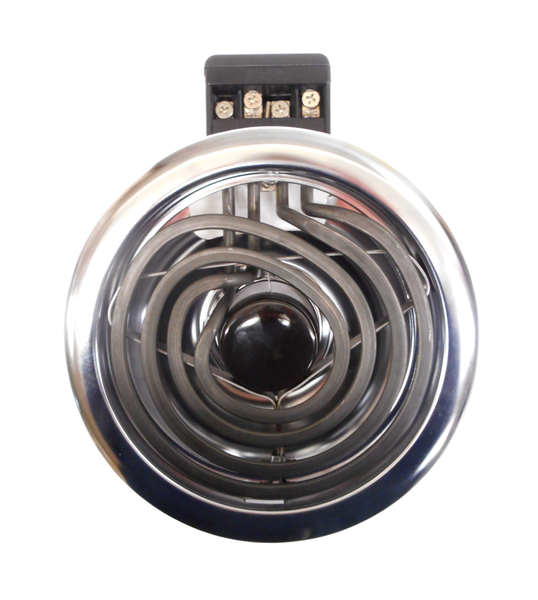

- 8" Surface Element Replacement (7-1/2" Outer DIA. Element)
- Includes: Ring and Pan
- Rating: 1500 W @ 240 V or 1040 W @ 208 V
- Bracket Style: Heavy-Duty D Style (Delta)
- Terminals: (4x) Screw-In 10-32 Lug Terminals and Includes a Terminal Block With Screws
- NOTE: This unit does include a pan and ring - if you do not need these, please order Model MC45MD (Drawing No. 370D-1019-002).
- Used In Various Ranges and Stoves With Screw-In Terminal Style Burners.
Replacement For Part Numbers:
- Whirlpool / Emerson / Supco / Chromalox: MC45R6R, MC45-R6R, MC45MD, 400047, 400186, MC45, YMC45R6R
- Other: TJMC45MD, AP5642216, AP3087480, 195411
