Model MC80-R9R: Replacement 8" (7.5" O.D.) Surface Element With Terminal Block, Ring, and Pan For Ranges/Ovens, 2,100W / 1,575W @ 240V / 208V

Therm Coil Drawing No.: 370D-1020-003      Therm Coil Model No.: MC80-R9R

Description

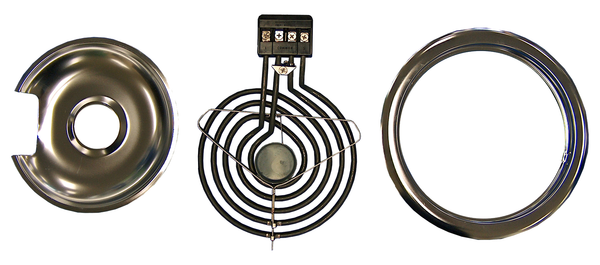

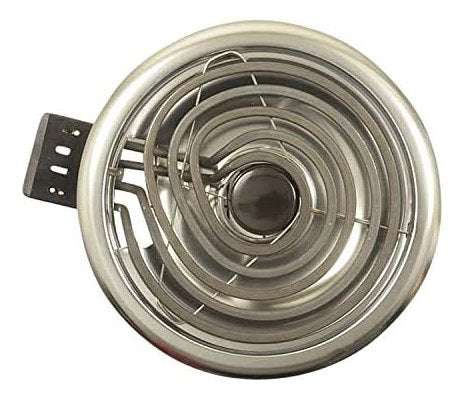

• 8" Surface Element Replacement (7-1/2" Outer DIA. Element)
• Includes: Ring and Pan
• Rating: 2100 W @ 240 V or 1575 W @ 208 V
• Bracket Style:  Heavy-Duty D Style (Delta)
• Terminals: (4x) Screw-In 10-32 Lug Terminals and Includes a Terminal Block With Screws
• NOTE: This unit does include a pan and ring - if you do not need these, please order Model MC80MD (Drawing No. 370D-1020-002).
• Used In Various Ranges and Stoves With Screw-In Terminal Style Burners.

Replacement For Part Numbers:

• Whirlpool / Emerson / Supco / Chromalox: MC80-R9R, MC80R9R, 400194, 230-023910-515, 023910-515
• Other: TJMC80R9R, AP5642222, 195416, 1153128

Therm Coil MFG. Co. is not affiliated with House of Webster, Whirlpool Corporation, Sears, or any listed manufacturers of their affiliates.
