Models AMP-21YA & MP-21YA: Whirlpool WP3191454 Equivalent Replacement 8" Surface Element For Ranges/Ovens, 2,100W / 1,575W @ 240V / 208V - Optional Terminal Conversion Kit

Call for Availability
Original price $ 0.00 - Original price $ 0.00
Original price
$ 0.00
$ 0.00 - $ 0.00
Current price $ 0.00
Availability:
Call for Availability
Availability:
Call for Availability

Models Have One Difference

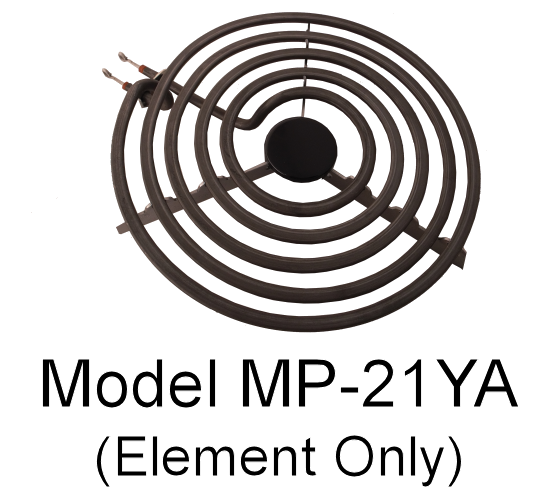

  • Model MP-21YA (Drawing No. 370D-1012-014): has terminals that are push-in nickel-over-steel "Looped Ends".

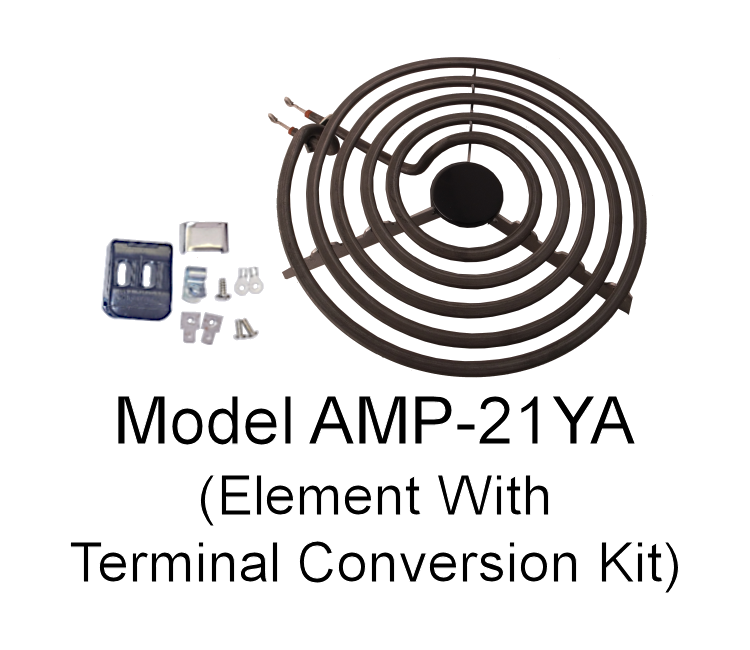

  • Model AMP-21YA (Drawing No. 370D-1035-002): comes with a conversion kit that turns the standard push-in loop terminals into screw-in wired lug terminal (flag terminal) connections.

Description

  • Large 8" Surface Element Replacement With (5) Turns: Directly replaces hundreds of models.
  • Rating: 2100 W @ 240 V or 1575 W @ 208 V
  • Bracket Style:  Heavy-Duty Y Style (Wye)
  • Used In Numerous Whirlpool Ranges and Stoves And Others With Push-In Terminal Style Burners or with Wired Connections Using the Conversion Kit: : Whirlpool Brands may include Whirlpool, Maytag, Kenmore, Crosley, Vesta, KitchenAid, Admiral, Amana, Caloric, Jenn-Air, Roper, Inglis, Estate, Magic Chef, Modern Maid, Norge, and more.

Replacement For Part Numbers:

  • Whirlpool (Including Whirlpool brands Admiral, Amana, Jenn Air, Kenmore, KitchenAid, Magic Chef, Maytag, and Norge): WP3191454, Y04000033, 3191454, 14200721, 1938249, 1938344, 19950005, 332-218, 42127, 51571, 7-3421, 74-06-217, 7406P015-60, 7406P030-60, 7406P055-60, 7406P331-60, 7406P478-60, 766327, 827667, D8549502, F80-344, PS11740903, R0167049, R0710049, W10126574, W10126575, Y0042127, Y0042131, Y0042139, Y0042164, Y0045542, Y0050259, Y0050264, Y0051570, Y0051571, Y0051572, Y0071853, Y0072549, Y0072980, Y0075356, Y0091795, Y0091801, Y0312875, Y0312877, Y04000031, Y07683300, Y0E00800699, Y0E00800799, Y0E00800899, Y0E00802099, Y0E00802599, Y703421, Y71853
  • Supco / Emerson / Chromalox: MP21YA, MP21YA-5T8, MP21YA 5T8, 230-058693-501, 058693-501
  • Other: TJMP21YA, TJ90MP21YA, AP6007782, AP6326906, 827667, 195618, 5W8221, ERS58Y21 AP3854933, AP3087499, TS5W8221









 Therm Coil MFG. Co. is not affiliated with GE, Whirlpool Corporation, Sears, or any listed manufacturers of their affiliates.
