Model TC-1042: Tappan 220T008P02 Range/Oven Broil Replacement Element, 1,650W @ 120V

Save 15% Save 15%
Original price $ 69.70
Original price $ 69.70 - Original price $ 69.70
Original price $ 69.70
Current price $ 59.25
$ 59.25 - $ 59.25
Current price $ 59.25
Availability:
4 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-4140-003      Therm Coil Model No.: TC-1042

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Tappan / Frigidaire: 220T008P02

Other: CH1042, TS1042, TS1042/750, TS750, TS750/1042, YCH1042, 453691, RP750, TS750/1042, AP3086824, AP3293792, AP3389104

  • 1650 W @ 120 V Rating

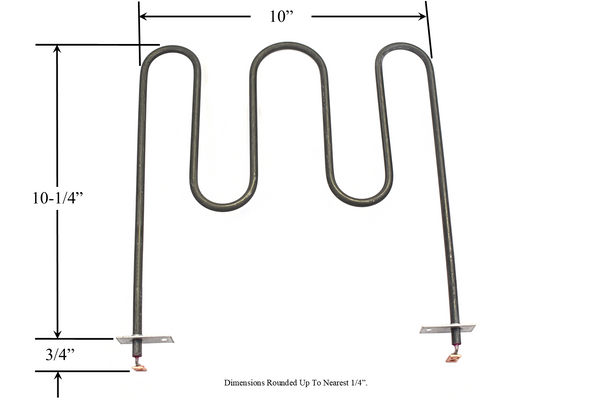

  • Approximate Overall Size: 9-7/8" Wide x 10-1/8" Length From Back Of Element To Mounting Bracket x 3/4" Insert From Bracket To Terminal Ends

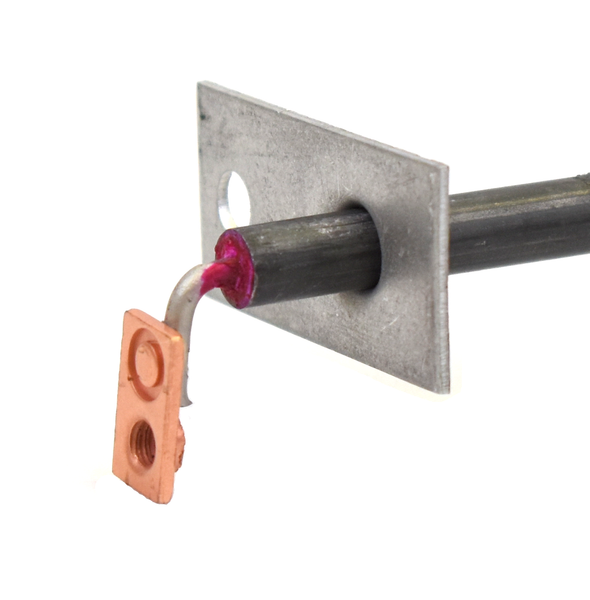

  • Screw-In Terminals
  • Used in various models of Tappan, Whirlpool, Frigidaire, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
