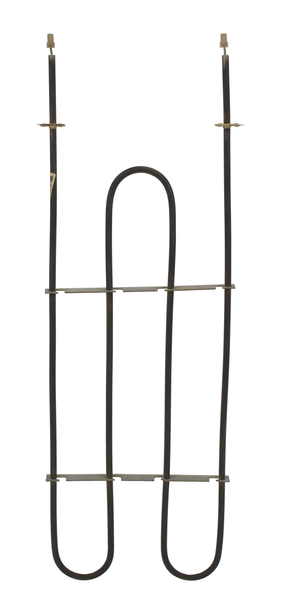

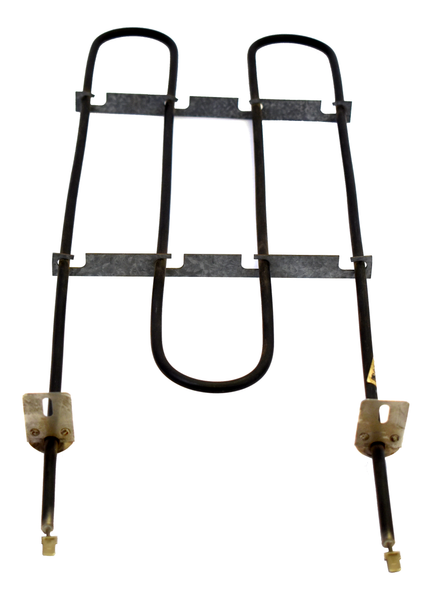

Model TC-2882: Roper 109306 / 239118 / 319844 Equivalent Range/Oven Broil Replacement Element, 2,500W @ 240V

Discounted price $ 50.79 List price $ 59.75

Therm Coil Drawing No.: 366R-4190-003      Therm Coil Model No.: TC-2882

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

G.E. / Kenmore / Roper: 109306, 239118, 319844

Other: CH2882, TS2882, TS2882/788, TS788, TS788/2882, YCH2882, AP3771456, AP2608459 , AP4620825 , AP2951083 , AP4596065 , AP2603479, AP4610832

  • 2500 W @ 240 V Rating.

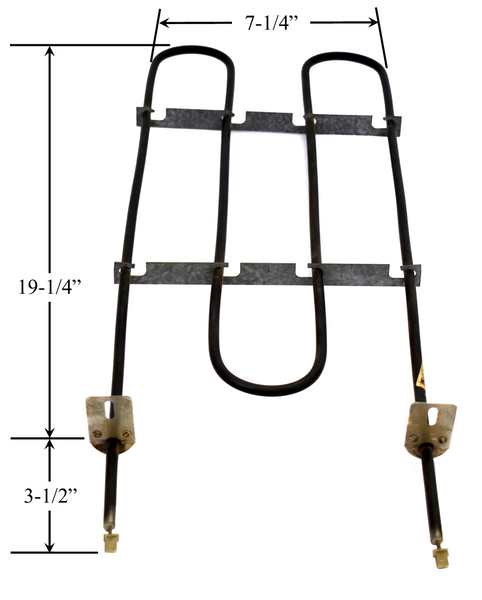

  • Approx. Overall Size: 7-1/4" Width x 19-1/4" Length From Back Of Element To Mounting Brackets x 3-1/2" Insert From Bracket To Terminal Ends.

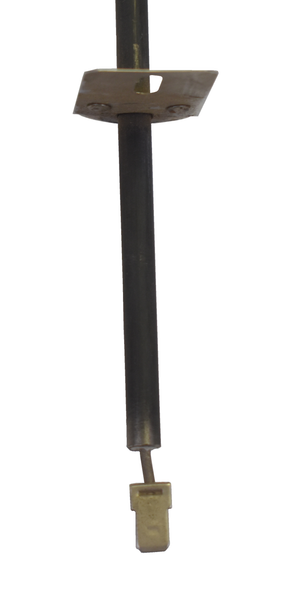

  • Threaded Screw-In Terminals
  • Used in various models of Roper, General Electric, Hotpoint, RCA, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Kenmore/Sears, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this broil element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Frigidaire Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
