Model TC-3801: Modern Maid 74-6-64 / CH3801 Equivalent Range/Oven Replacement Element, 3,000W @ 250V

Discounted price $ 49.05 List price $ 57.70

Therm Coil Drawing No.: 366R-4193-003      Therm Coil Model No.: TC-3801

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Modern Maid: 74-6-64, 74664

Other: CH3801, 454467, RP688, TS688, YCH3801, P3389111

  • 3000 W @ 250 V Rating.

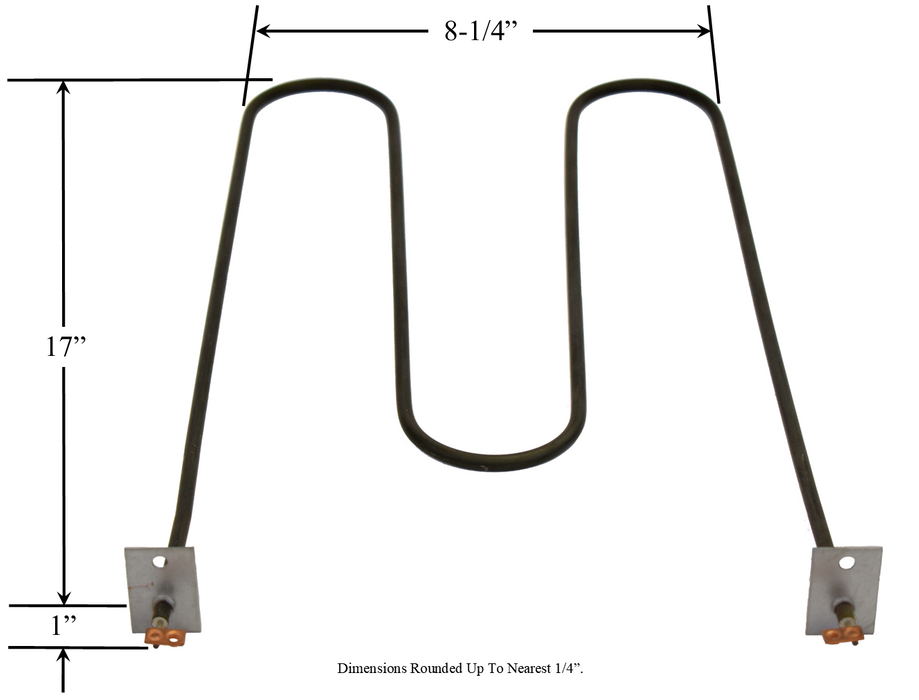

  • Approx. Overall Size: 8-1/4" Width x 17" Length From Back Of Element To Mounting Brackets x 1" Insert From Bracket To Terminal Ends.

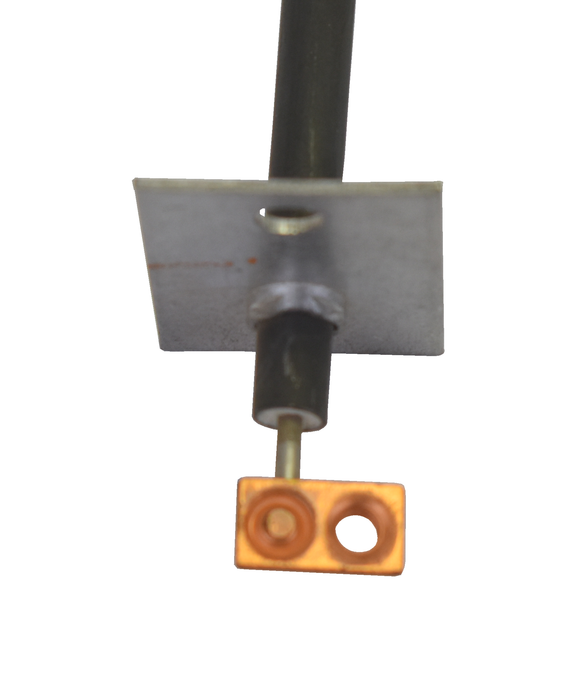

  • Threaded Screw-In Terminals
  • Used in various models of  Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
