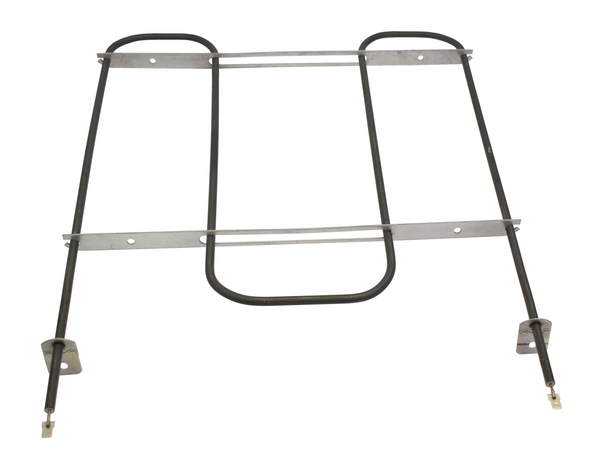

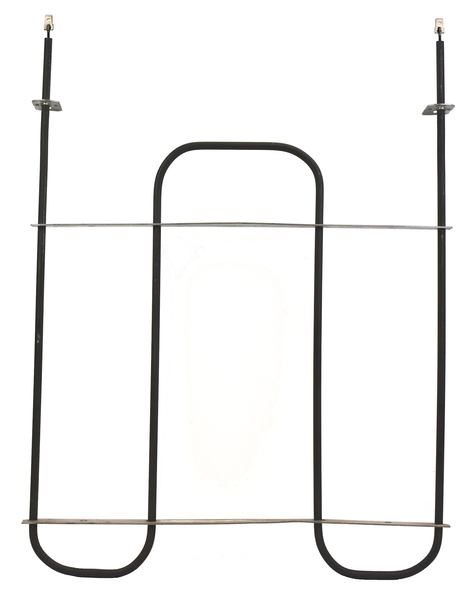

Therm Coil Drawing No.: 366R-4004-003 Therm Coil Model No.: TC-4837
Description
HELPFUL HINT: Use CTRL+F to use the search function for your part number.- Replacement For Part Numbers:
Amana / Caloric / Maytag / Whirlpool: 0091224, 0069061, 0091378, y69061, 69061, 91224, 0069061, 0091378
Philco: 3204-058-001
Other: 0069061-REPL, 0091378-REPL, CH4837, R0167082, R0167082-REPL, TS4847/835, AP138997, AP4420604, AP48610, AP3086961, AP4366412
- 3000W @ 240V Rating
-
Approximate Overall Size: 13-1/4" Wide x 15-1/4" Length From Back Of Element To Mounting Bracket x 3" Insert From Bracket To Terminal Ends

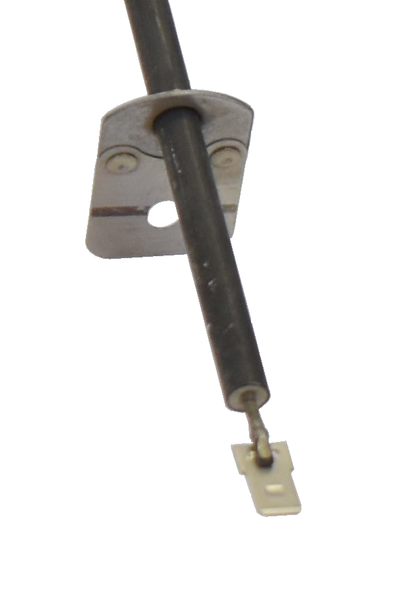

- 1/4" Male Push-In Quick-Connect Terminals
- Used in various models of Whirlpool appliances, including Amana, Whirlpool, Maytag, KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.
HELPFUL HINT: Use CTRL+F to use the search function for your appliance model number.
- Replacement For Appliance Model Numbers:
EVP394, EVP399, RCC-3 (P7277101M), RCC-3 (P7340801M), RCC-3-A (P7277101M A), RCC-3-A1 (P7340801M A), RCC-3-AG (P7277101M G), RCC-3-AG1 (P7340801M G), RCC-3-C (P7277101M C), RCC-3-C1 (P7340801M C), RCC-3-L1 (P7340801M L), RCC-4 (P7340901M), RCC-4 (P7277801M), RCC-4-A (P7277801M A), RCC-4-A1 (P7340901M), RCC-4-AG (P7277801M G), RCC-4-AG1 (P7340901M), RCC-4-C (P7277801M C), RCC-4-C1 (P7340901M), RCC-4-L1 (P7340901M)
Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
