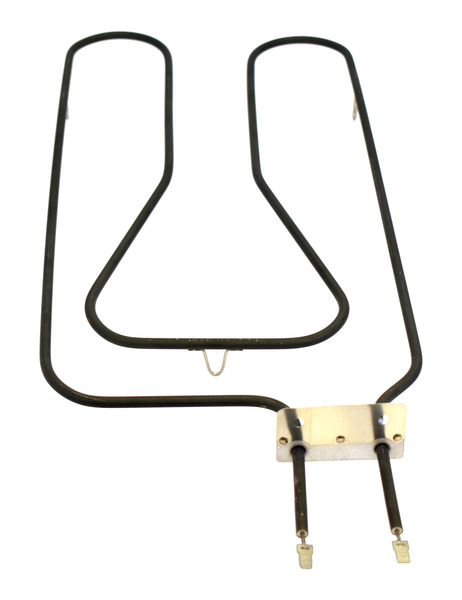

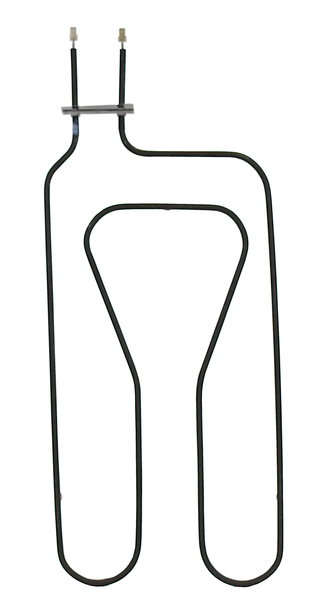

Model TC-4856: GE / Roper / Kenmore: 303801 Equivalent Range/Oven Broil Replacement Element, 2,300W @ 240V

Discounted price $ 30.82 List price $ 36.25

Therm Coil Drawing No.: 366R-4019-003      Therm Coil Model No.: TC-4856


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Roper / G.E.: 303801, 302342, 299043, 239120, 237572, 319843

Kenmore / G.E.: 303801, 299043, 237572, 319843

Whirlpool: CH4856, 457668

Other: 115676, 850, TS850, YCH4856, AP3770587, AP3086979, AP4620823, AP4610281, AP2603480, AP4610834, AP4890459, AP4617701

  • 2300 W @ 240 V Rating.

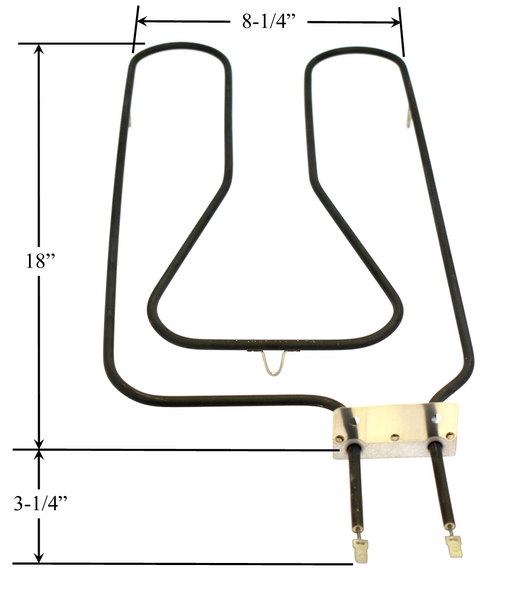

  • Approx. Overall Size: 8-1/4" Width x 18" Length From Back Of Element To Mounting Brackets x 3-1/4" Insert From Bracket To Terminal Ends x 1-3/4" Center-To-Center Terminal Width

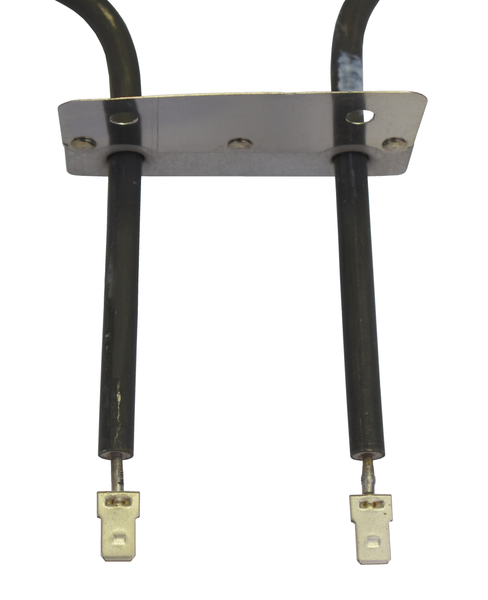

  • Male quick-Connect Push-In Terminals
  • Used in various models of  Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, General Electric, Hotpoint, RCA, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
