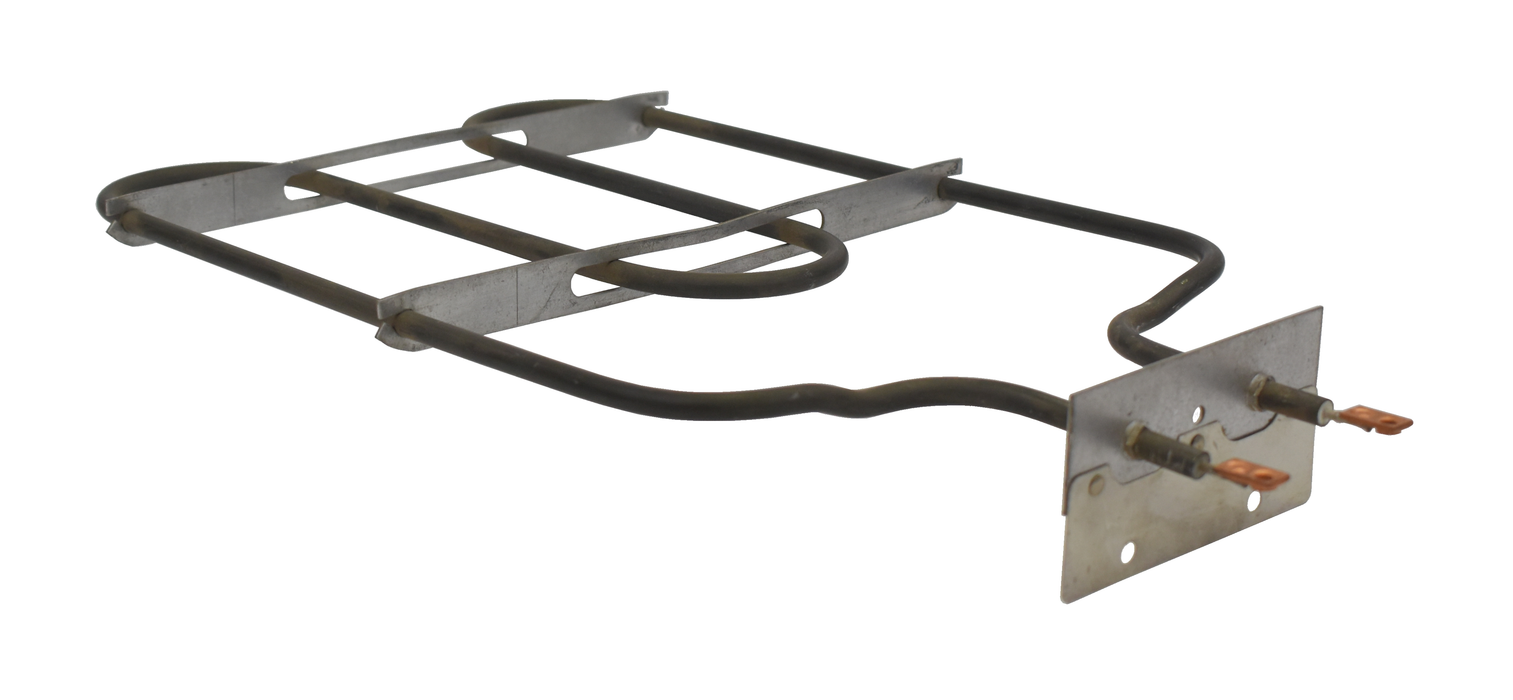

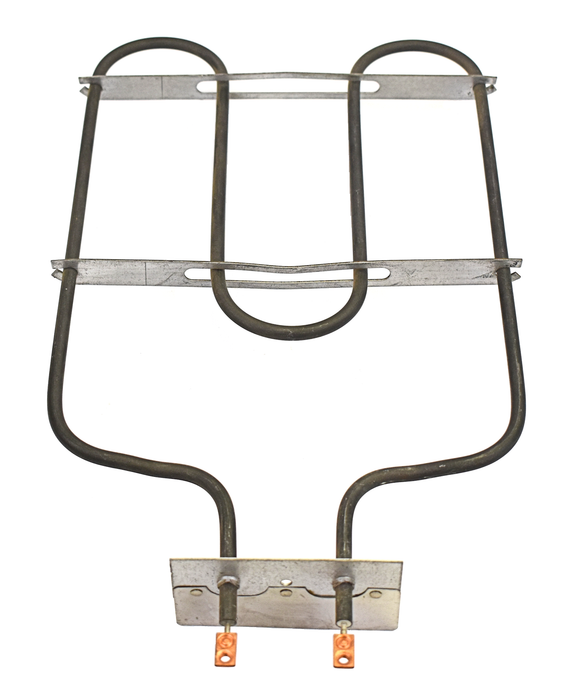

Model TC-4866: Kenmore/Roper 41996 / 457617 Equivalent Range/Oven Broil Replacement Element, 1,800W @ 240V

Call for Availability
Original price $ 51.20
Original price $ 51.20 - Original price $ 51.20
Original price $ 51.20
Current price $ 43.52
$ 43.52 - $ 43.52
Current price $ 43.52
Call for Availability

Therm Coil Drawing No.: 366R-4027-003      Therm Coil Model No.: TC-4866


  • Replacement For Part Numbers:

Kenmore / Roper / Whirlpool: 41996, 457617

Whirlpool: CH4866, 457617

Other: AP3086987, AP3956005, 115684

  • 1800W @ 240V

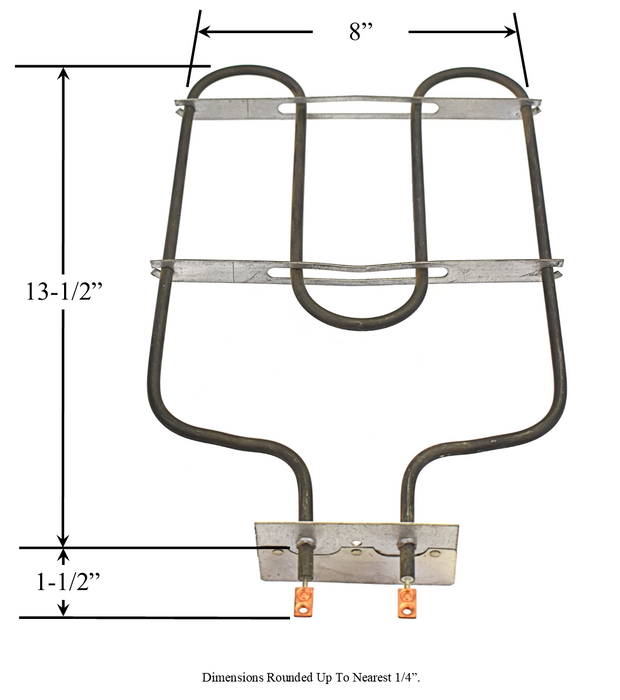

  • Approximate Overall Size:  8" Wide 13-3/8" From Back Of Element To Bracket x 1-1/2" Insert (From Bracket to End of Terminals) x 1-3/4" Center-to-Center Of Terminals.

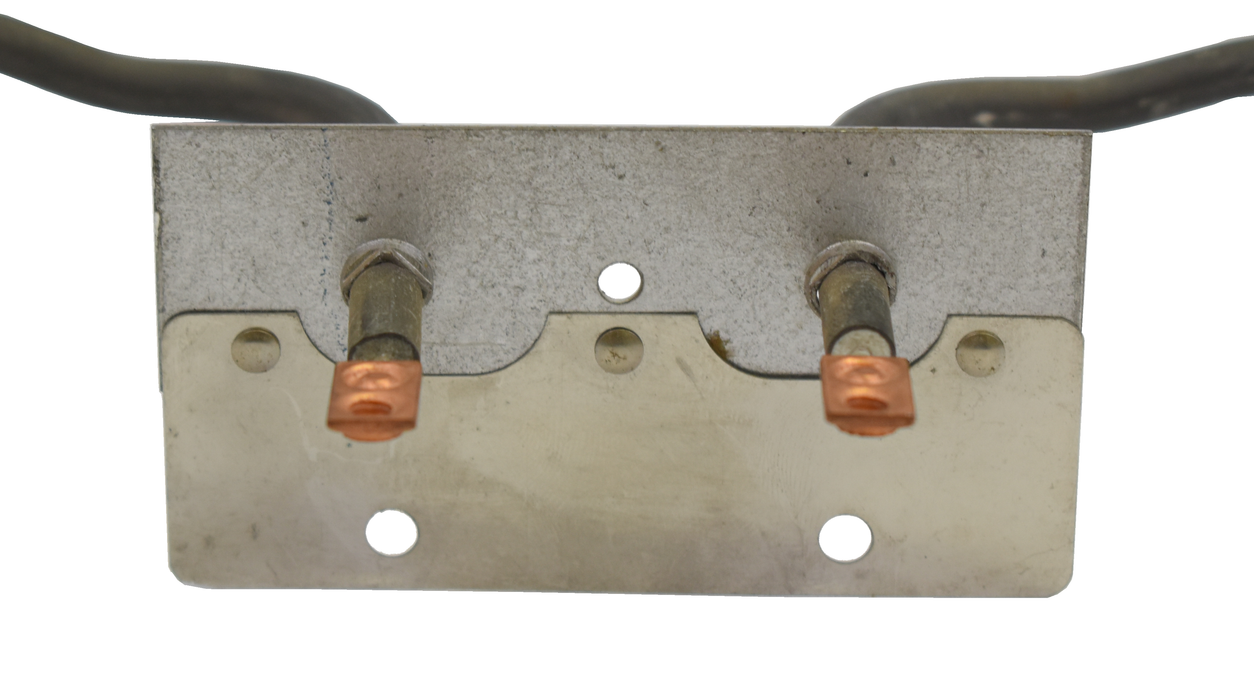

  • Right-Angle Screw-In Terminal Connections
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and othersIf your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
Therm Coil MFG. Co. is not affiliated with Whirlpool, Kenmore, Sears, or any of their affiliates.
