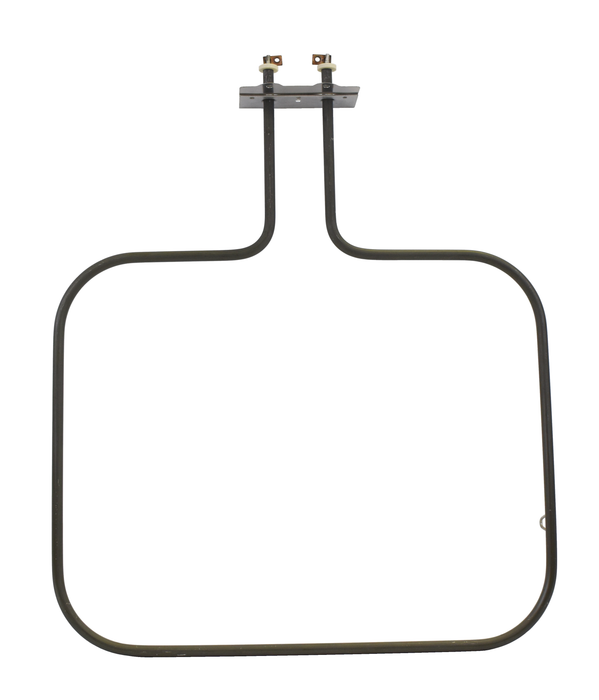

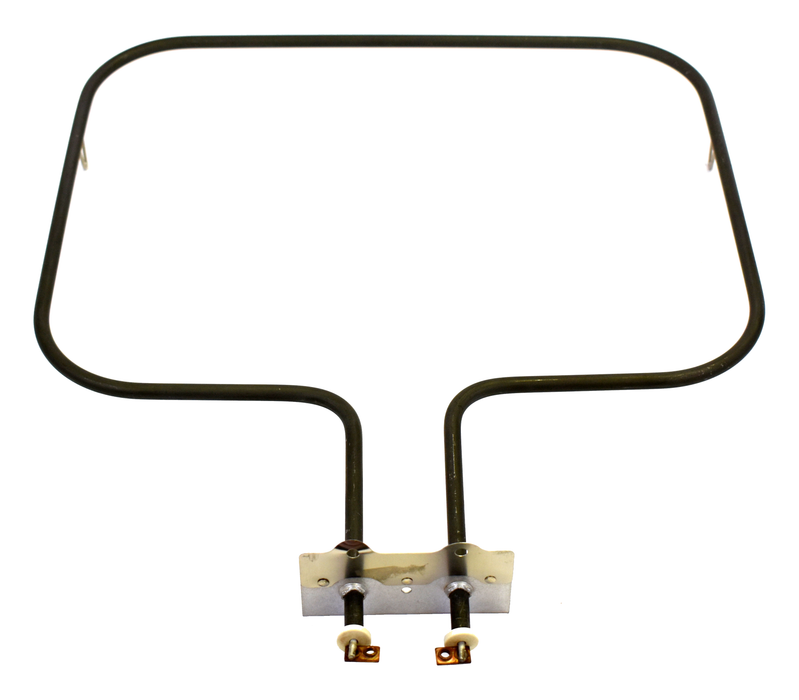

Model TC-4868: Whirlpool / Kenmore 249613 / CH4868 Equivalent Range/Oven Broil Replacement Element, 1,900W @ 240V

Discounted price $ 27.20 List price $ 32.00

Therm Coil Drawing No.: 366R-4029-003      Therm Coil Model No.: TC-4868


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Whirlpool / Kenmore:  249613, 248216, 248509

Whirlpool:  CH4868, 456817

Other:  TS4868, AP3769883, AP3086989, AP3155397

  • 1900 W @ 240 V Rating

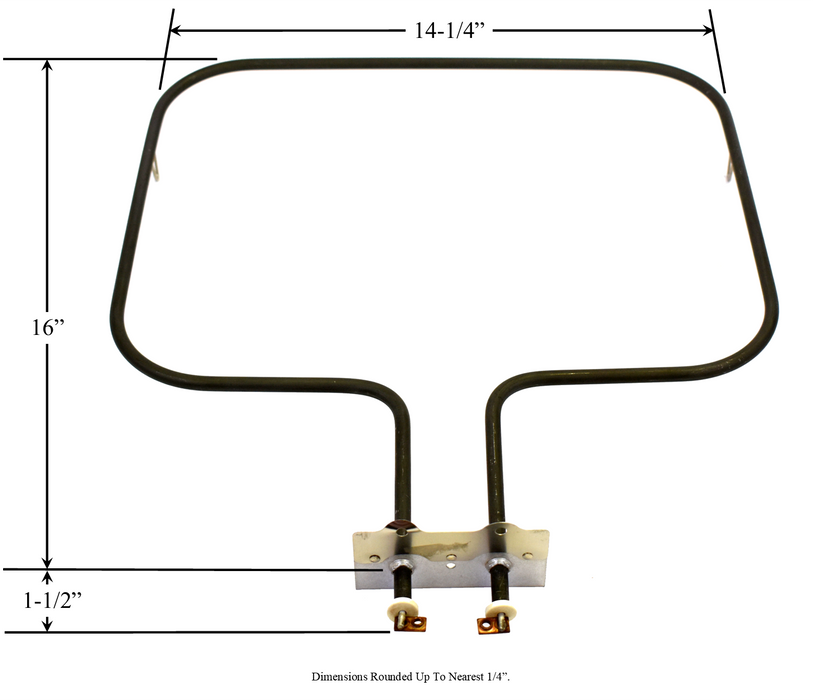

  • Approx. Overall Size: 14-1/4" Width x 16" Length From Back Of Element To Mounting Brackets x 1-3/8" Insert From Bracket To Terminal Ends x 1-3/4" Center-To-Center Terminal Width.

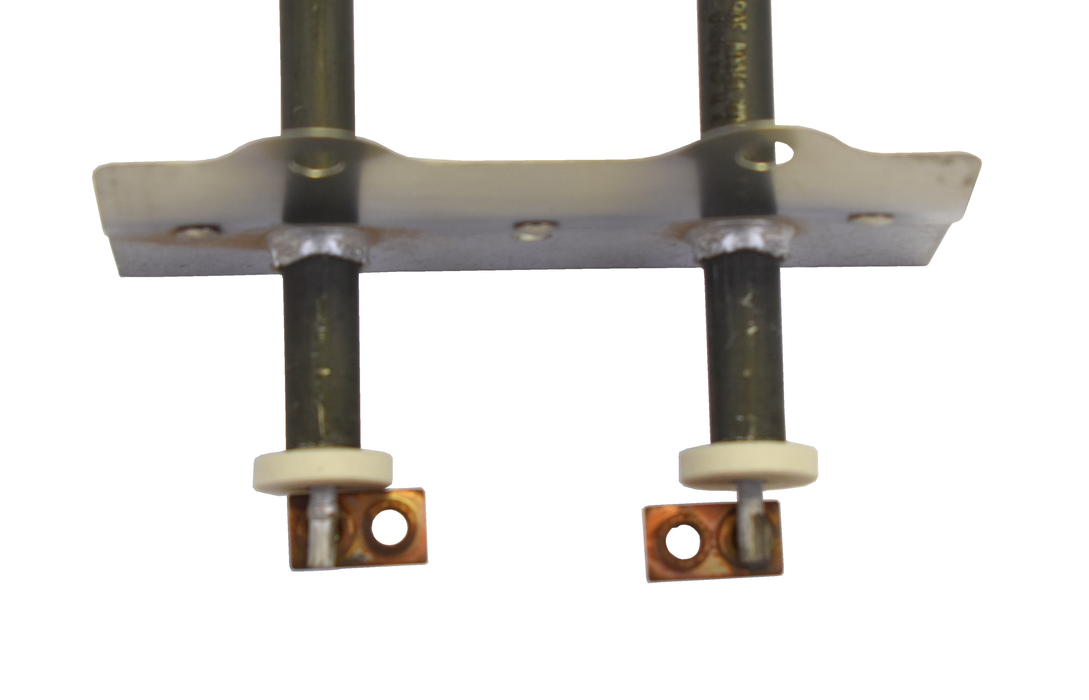

  • Threaded Screw-In Terminals
  • Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
