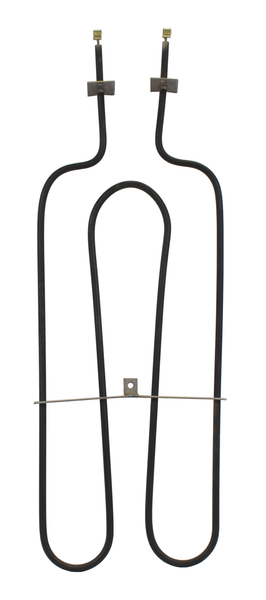

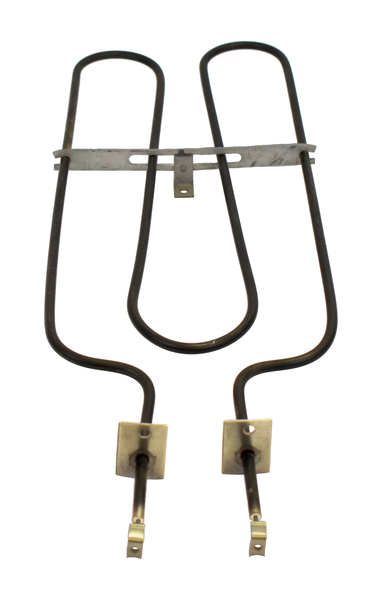

Model TC-4872: Frigidaire / Kelvinator / Kenmore 5301309020 Equivalent Range/Oven Vintage Broil Replacement Element, 1,500W @ 208V

Therm Coil Drawing No.: 366R-4033-003      Therm Coil Model No.: TC-4872

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

• Replacement For Part Numbers:

Frigidaire / Kelvinator / Kenmore: 5301309020, K1309020, 1309020

Whirlpool: CH4872, 457887, 029-874872-001, 874872-001

Other:  AP4601121, AP3086993, AP3771877, AP3354593, 115690

• 1500 W @ 208 V Rating

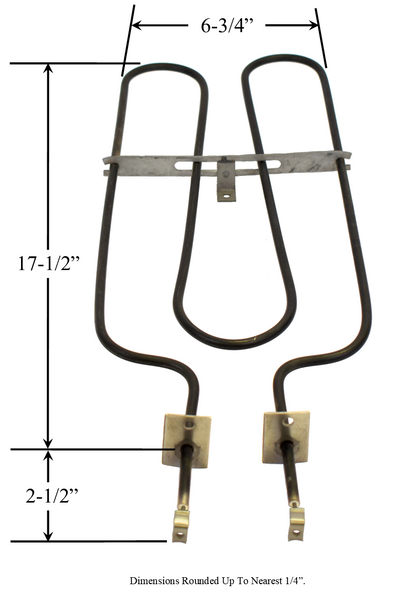

• Approx. Overall Size: 6-5/8" Width x 17-1/2" Length From Back Of Element To Mounting Brackets x 2-1/2" Insert From Bracket To Terminal Ends x 1-3/4" Center-To-Center Terminal Width.

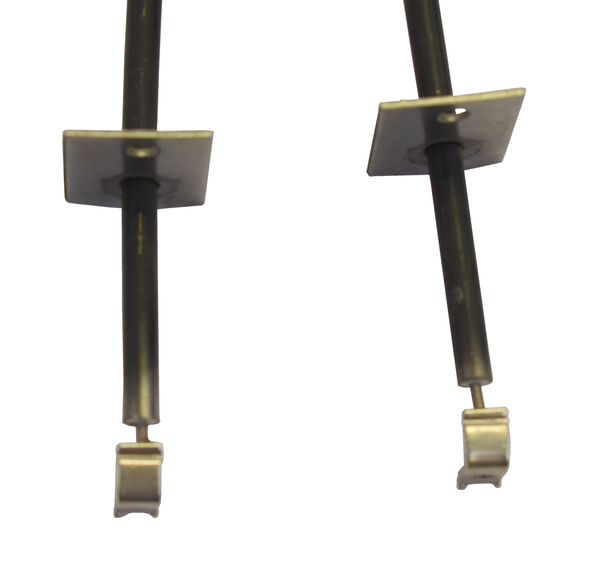

• Right-Angle Threaded Screw-In Terminals
• Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance.

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

• Used In Appliance Model Numbers:

628.9437910, 628.9447210, 628.9447220, 628.9447240, 628.9447260, 628.9447310, 628.9447313, 628.9447315, 628.9447320, 628.9447323, 628.9447325, 628.9447340, 628.9447343, 628.9447345, 628.9447360, 628.9447363, 628.9447365, 628.9447610, 628.9447710, 628.9447711, 628.9447810, 628.9447910, 628.9447911, 628.9457710, 628.9467810, 628.9467811, 628.9467910, 628.9468110, 628.9468211, 628.9468212, 628.9468213, 628.9468214, 628.9468215, 628.9477710, 628.9487510, 628.9487520, 628.9487540, 628.9487560, 628.9487619, 628.9487810, 628.9487811, 628.9497210, 628.9497220, 628.9497240, 628.9497260, 628.9497310, 628.9497311, 628.9497312, 628.9497313, 628.9497315, 628.9497320, 628.9497321, 628.9497322, 628.9497323, 628.9497325, 628.9497340, 628.9497341, 628.9497342, 628.9497343, 628.9497345, 628.9497360, 628.9497361, 628.9497362, 628.9497363, 628.9497365, 628.9497610, 628.9497710, 628.9497890, 628.9497891, 628.9507710

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
