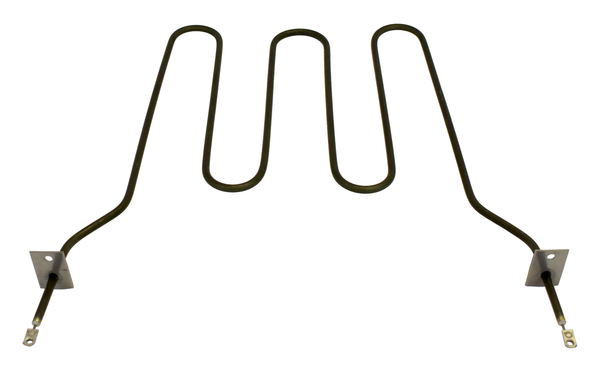

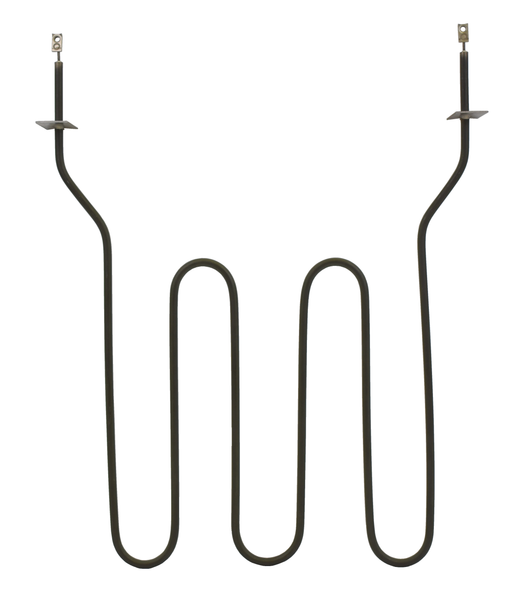

Model TC-554: Modern Maid: 74-6-49 Equivalent Range/Oven Broil Replacement Element, 3,000W @ 250V

Therm Coil Drawing No.: 366R-1554-003      Therm Coil Model No.: TC-554

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

• Replacement For Part Numbers:

Modern Maid: 74-6-49, 74649

Other: CH554, 453042, RP554, TS554, YCH554, AP3087025, AP3770849, 115743

• 3000 W @ 250 V Rating

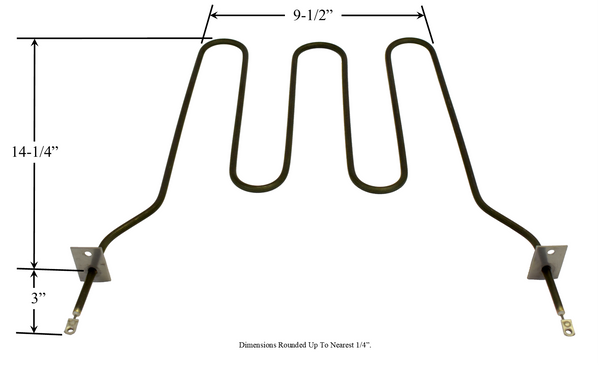

• Approx. Overall Size: 9-3/8" Width x 14-1/4" Length From Back Of Element To Mounting Brackets x 3" Insert From Bracket To Terminal Ends x 13" Center-to-Center Terminal Width.

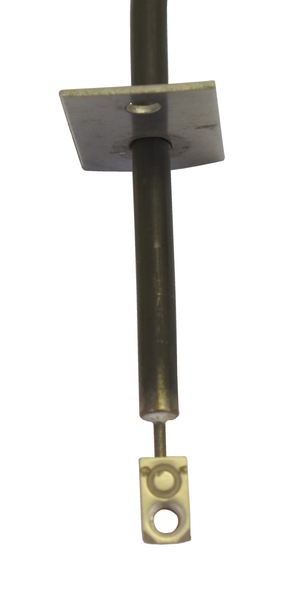

• Threaded Screw-In Terminals
• Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
