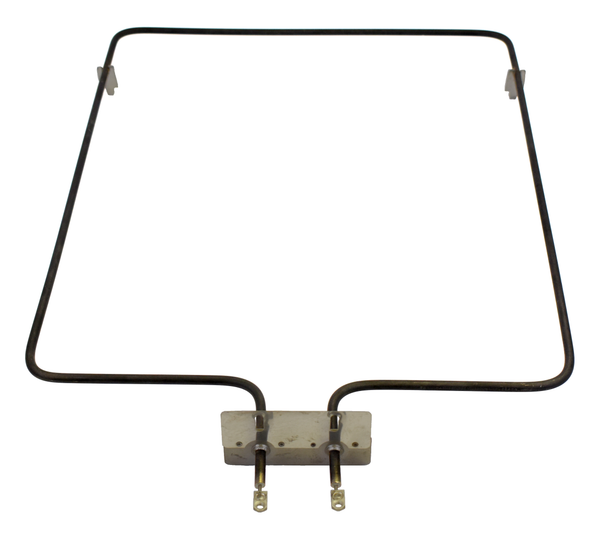

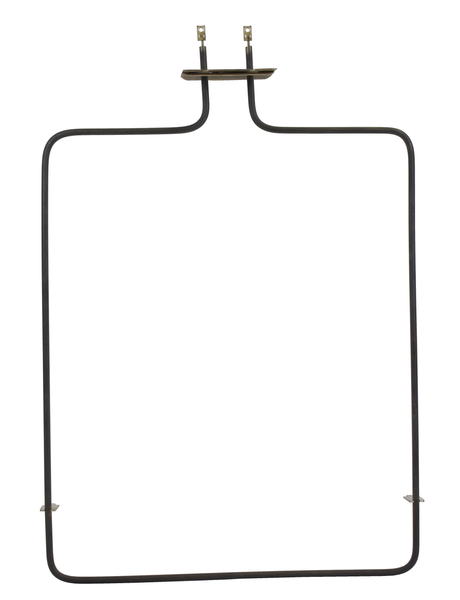

Therm Coil Drawing No.: 366R-1564-003 Therm Coil Model No.: TC-564
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Enterprise: 150612
Other: CH564, 202-873810-002, 453085, RP564, TS564, YCH564, AP3389481, 115751
- 2000 W @ 240 V Rating

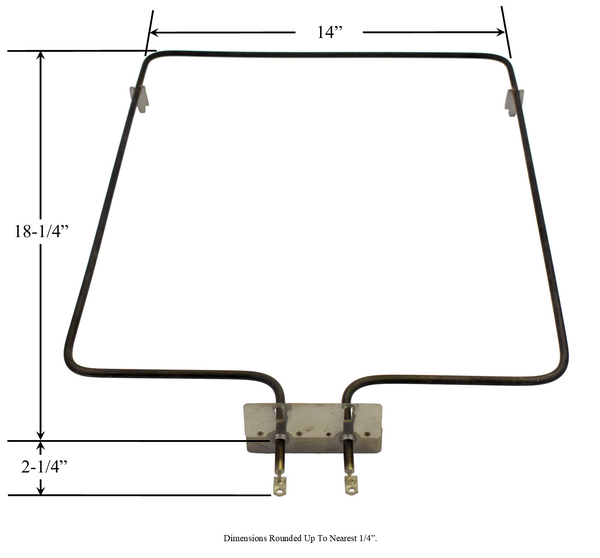

- Approx. Overall Size: 13-7/8" Width x 18-1/4" Length From Back Of Element To Mounting Brackets x 2-1/4" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

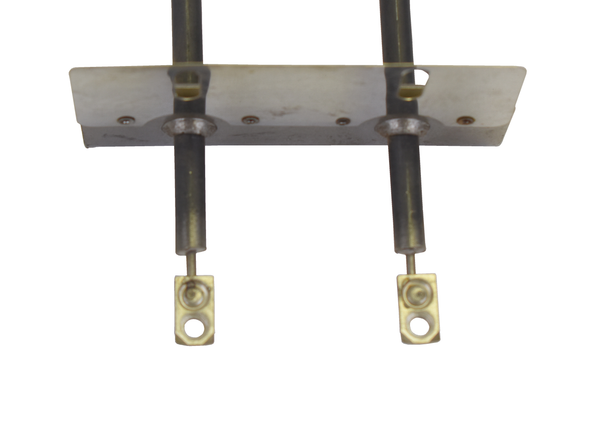

- Threaded Screw-In Terminals
- Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.
