Therm Coil Drawing No.: 366R-1581-003 Therm Coil Model No.: TC-581
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Admiral: 34055
Chromalox: ROP-T, 400485
Montgomery WardL 88-6796
Other: 34055, RP581, AP3389506, 219015
- 2500 W @ 250 V Rating

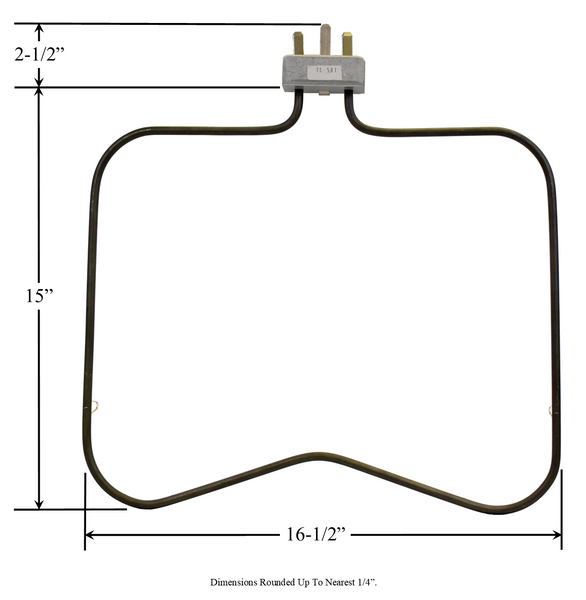

- Approx. Overall Size: 16-1/2" Width x 15" Length From Back Of Element To Mounting Brackets x 2-1/2" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

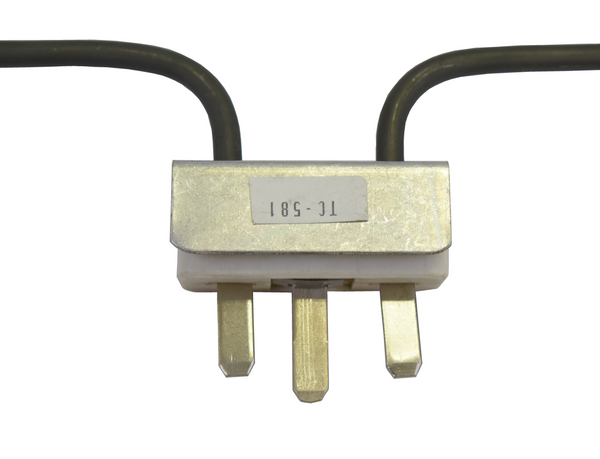

- Prong Terminals With Ground
- Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: This is a universal bake element and is compatible with numerous appliances - use dimensions to determine if this element will fit your appliance.
