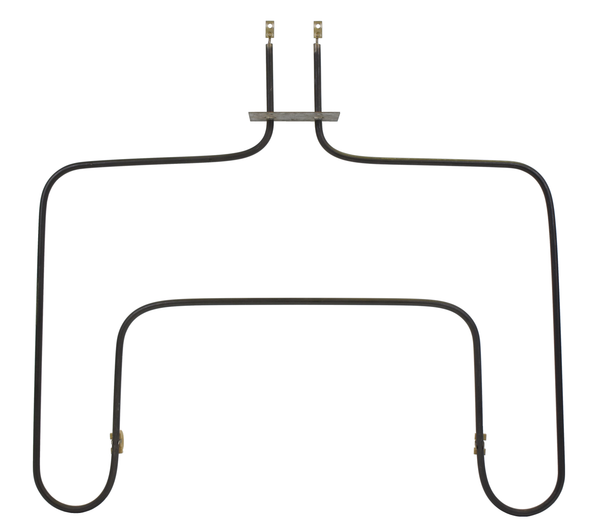

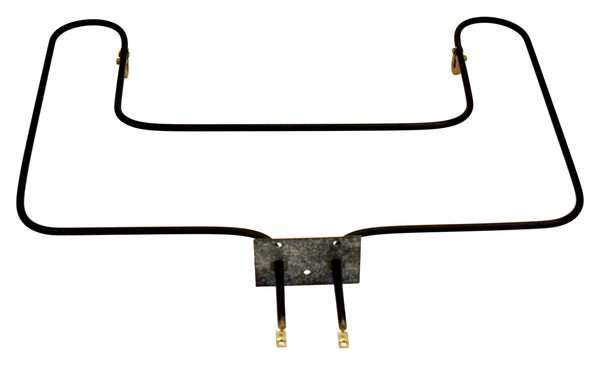

Model TC-5864: Litton / Maytag 41650P01 Equivalent Range/Oven Bake Replacement Element, 1,920W @ 240V

Sale price $ 55.68 Regular price $ 65.50

Therm Coil Drawing No.: 366R-4087-003      Therm Coil Model No.: TC-5864

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Litton / Maytag: 41650P01, M61D64

Whirlpool: CH5864, 458601

Other:  TS5864, YCH5864, AP3087076, AP3843826, AP2537920, 558822, 115794

  • 1920 W / 2100 W @ 240 V Rating

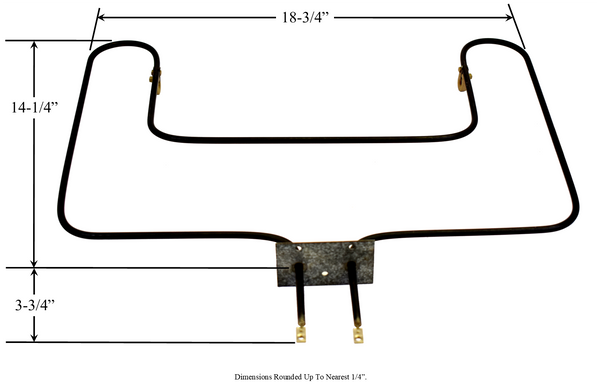

  • Approx. Overall Size: 18-3/4" Width x 14-1/4" Length From Back Of Element To Mounting Brackets x 3-5/8" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

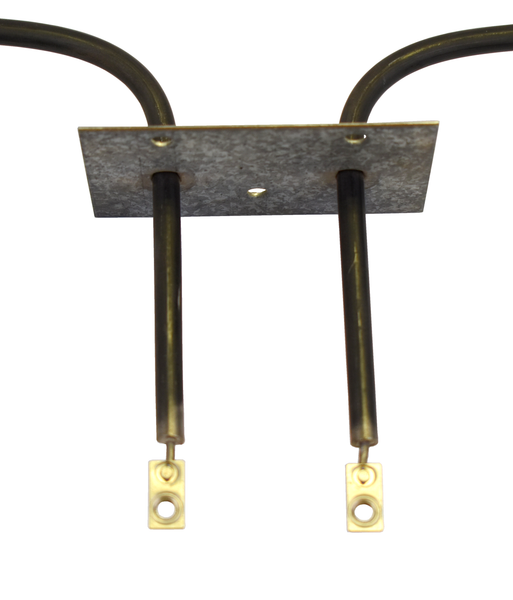

  • Screw-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.
  • Used In Appliance Model Numbers:

Amana 1995.000



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
