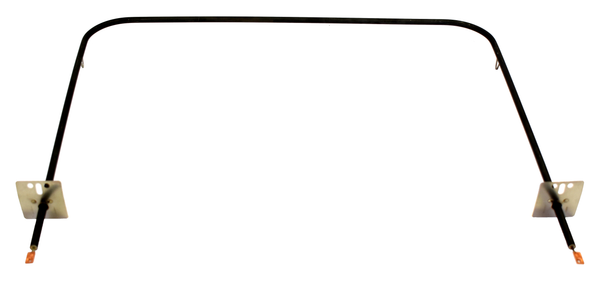

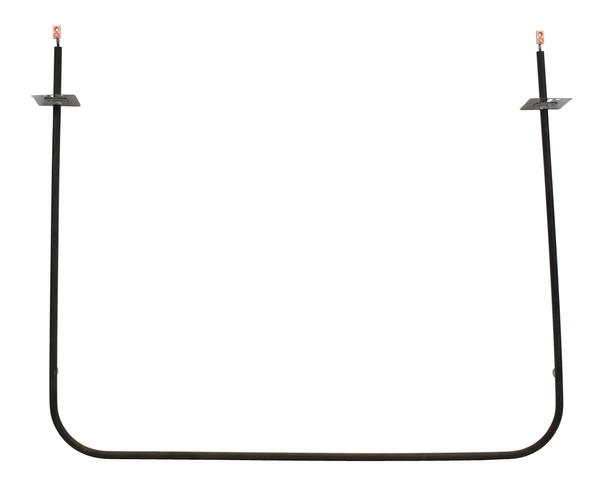

Model TC-609: Modern Maid 74-6-6 / Whirlpool CH609 Range/Oven Bake Replacement Element, 2,200W @ 240V

Discounted price $ 67.15 List price $ 79.00

Therm Coil Drawing No.: 366R-1609-002      Therm Coil Model No.: TC-609


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Modern Maid / Sunray / Wizard: 74-6-6, 7466

Whirlpool: CH609, 454045

Other: TS609, YCH609, AP3086766, AP3843853, 115835

  • 2200 W @ 240 V Rating

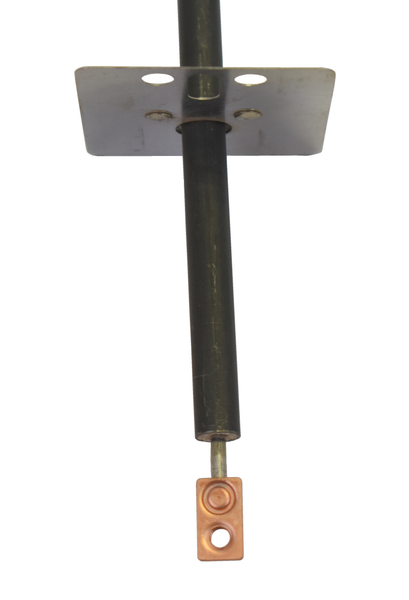

  • Threaded Screw-In Terminals

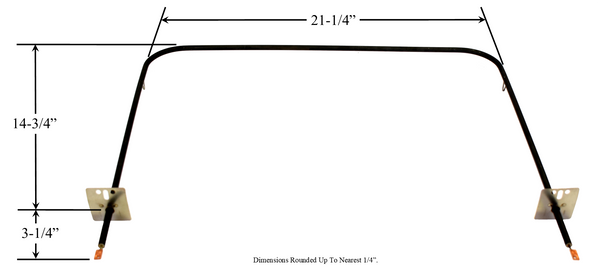

  • Approx. Overall Size: 21-1/4" Width x 14-3/4" Length From Back Of Element To Mounting Brackets x 3-1/8" Insert From Bracket To Terminal Ends.
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.



    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
