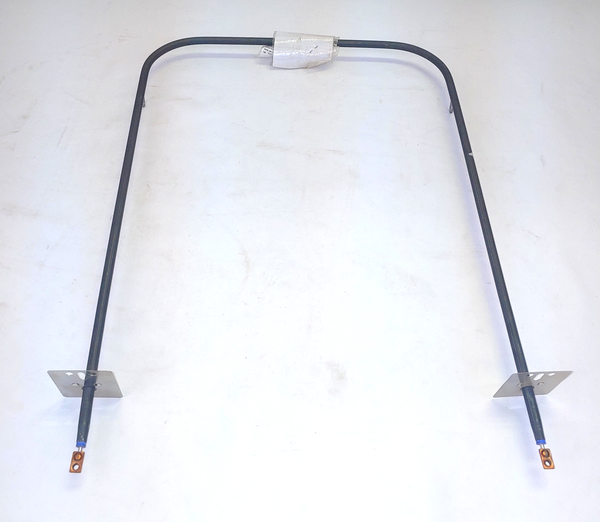

Model TC-620: Sunray 3002 / CH620 Equivalent Range/Oven Bake Replacement Element, 2,200W @ 240V

Sale price $ 56.74 Regular price $ 66.75

Therm Coil Drawing No.: 366R-1620-003      Therm Coil Model No.: TC-620

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Kelvinator: 1168623

Modern Maid: 74-6-45, 74645

Sunray: 03002, 3002

Gibson: 39542, 41035

Suburban: R23220

Other:  CH620, TJ90CH620, 453843, B620, RP620, TS620, YCH620, AP4502584, 115841

  • 2200 W @ 240 V Rating

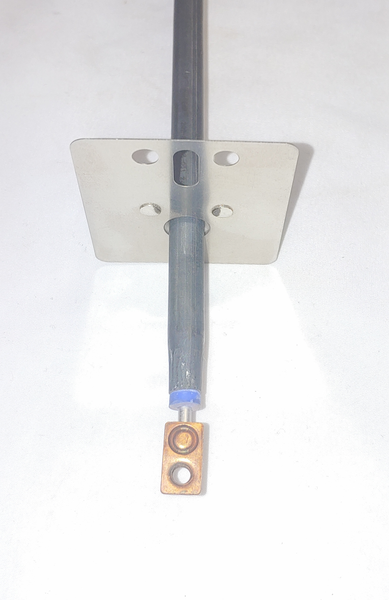

  • Threaded Screw-In Terminals
  • Approx. Overall Size: 13" Width x 16-3/16" Length From Back Of Element To Mounting Brackets x 2-3/8" Insert From Bracket To Terminal Ends.
  • Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.





    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
