Model TC-6803: Whirlpool CH6803 / Roper 113965 Equivalent Range/Oven Bake Replacement Element, 3,600W @ 240W

Sale price $ 27.20 Regular price $ 32.00

Therm Coil Drawing No.: 366R-4111-003      Therm Coil Model No.: TC-6803

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Roper: 113965, 113966, 237571

Whirlpool: CH6803

Others: YCH6803, 440170, AP4597751, AP4610280, AP3087117, AP3769551, 115902

  • 3600 W @ 240 V Rating

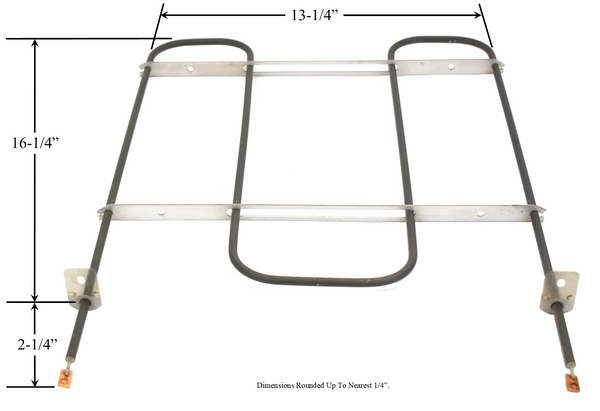

  • Approx. Overall Size: 13-1/4" Width x 16-1/4" Length From Back Of Element To Mounting Brackets x 2-1/8" Insert From Bracket To Terminal Ends.

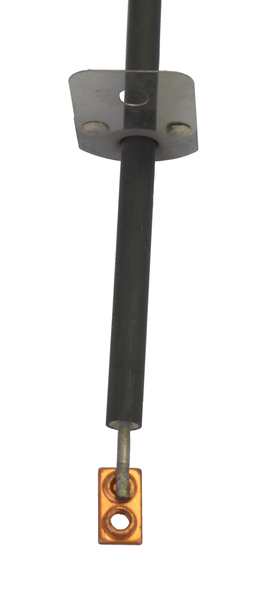

  • Threaded Screw-In Terminals
  • Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
