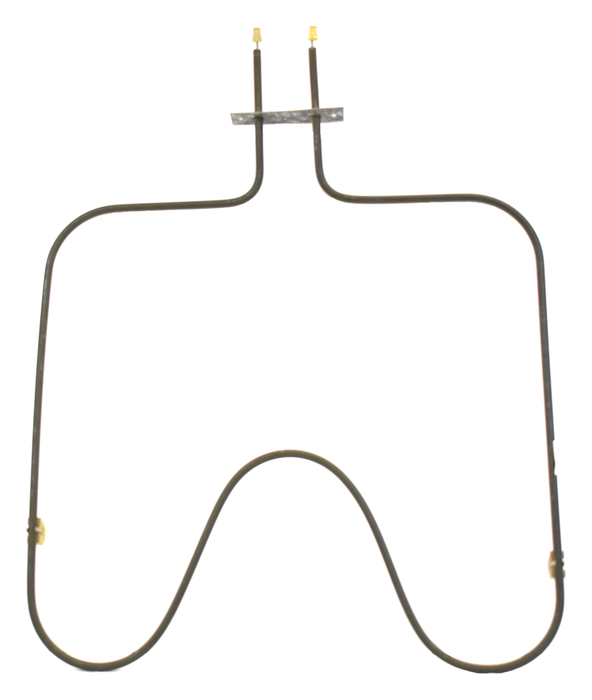

Model TC-6804: Whirlpool CH6804 / Chambers CC70907 Equivalent Range/Oven Bake Replacement Element, 2,200W @ 208W

Discounted price $ 27.20 List price $ 32.00

Therm Coil Drawing No.: 366R-4112-003      Therm Coil Model No.: TC-6804

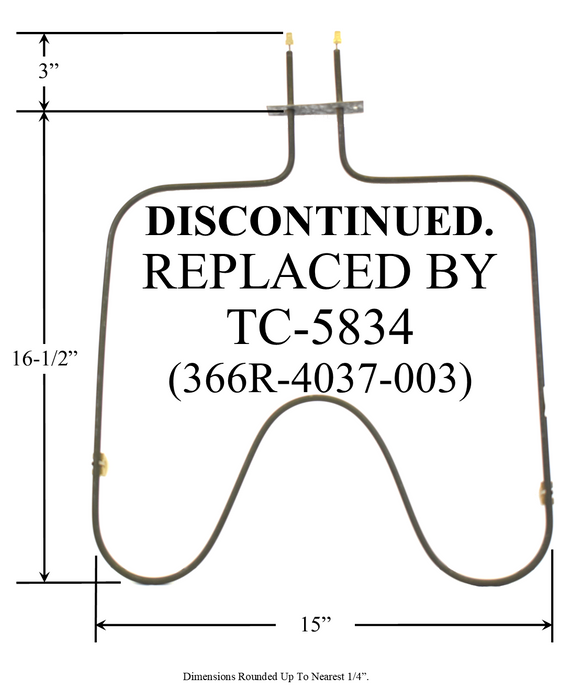

TC-6804 is Discontinued, please see TC-5834 (366R-4037-003) which is the replacement.


TC-6804 Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Chambers: CC70907, CC305337-3, CC305337-2

Whirlpool: CH6804

Others: AP3087118, AP3956048, 115903

  • 2200 W @ 208 V Rating

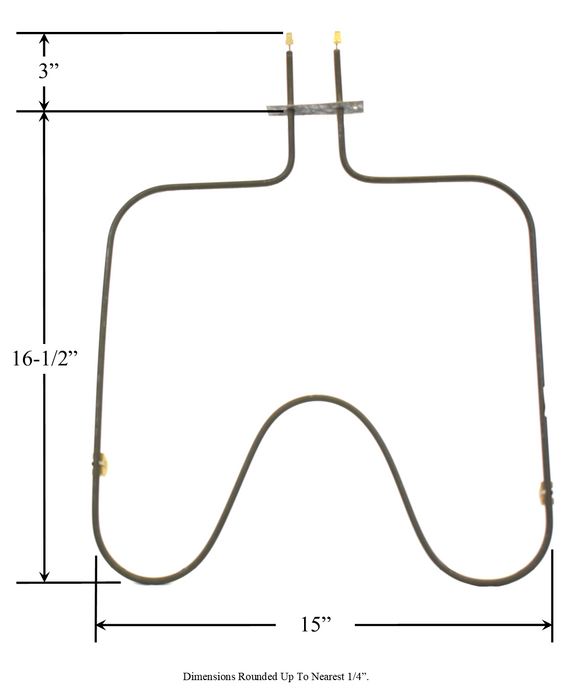

  • Approx. Overall Size: 14-7/8" Width x 16-1/2" Length From Back Of Element To Mounting Brackets x 3" Insert From Bracket To Terminal Ends x  1-3/4" Center-to-Center Terminal Width.

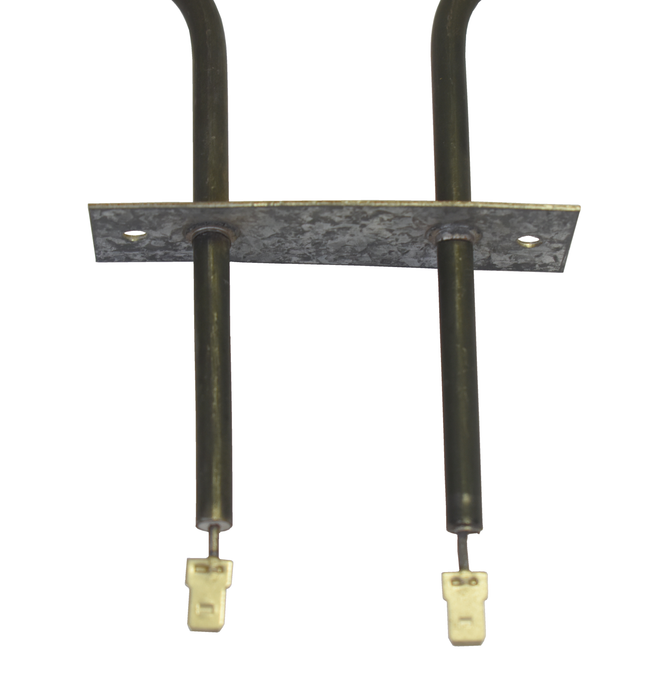

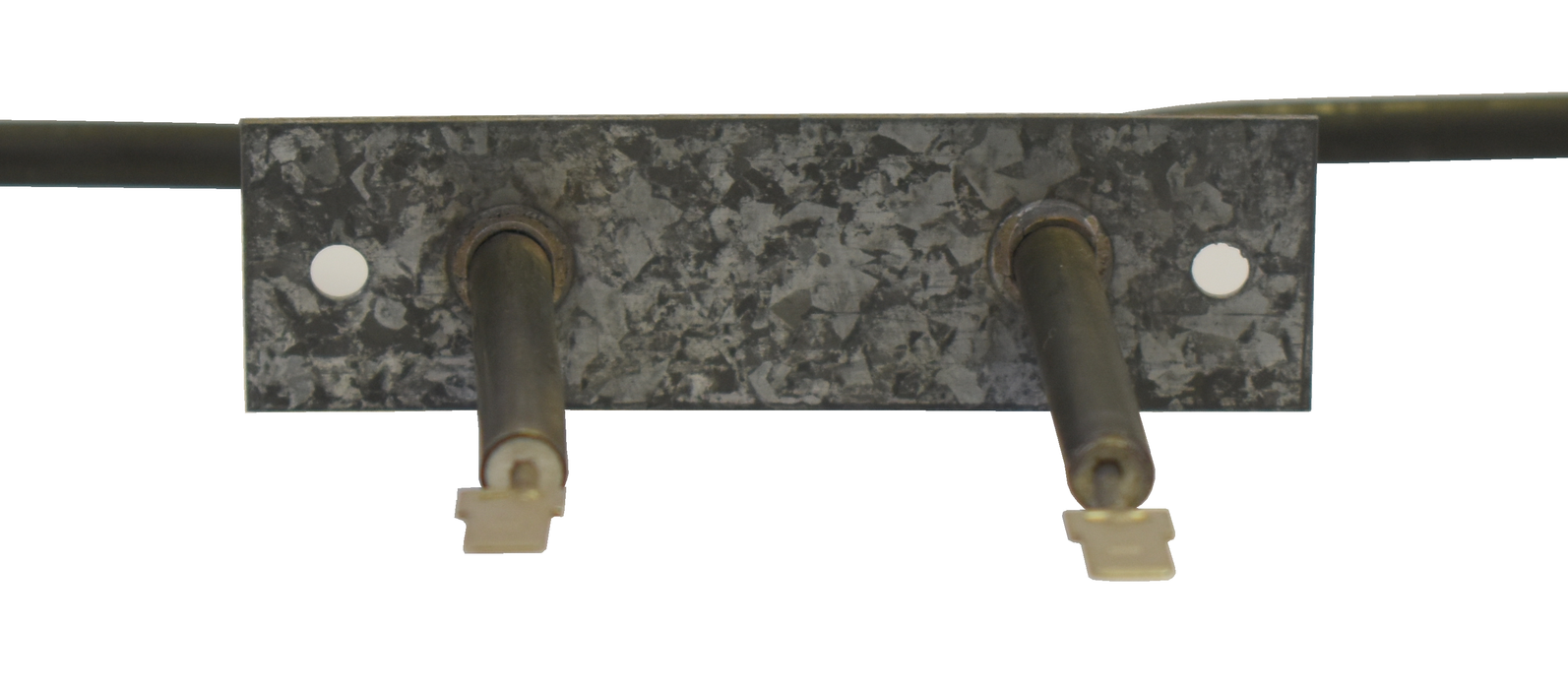

  • Male Quick-Connect Push-In Terminals
  • Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
