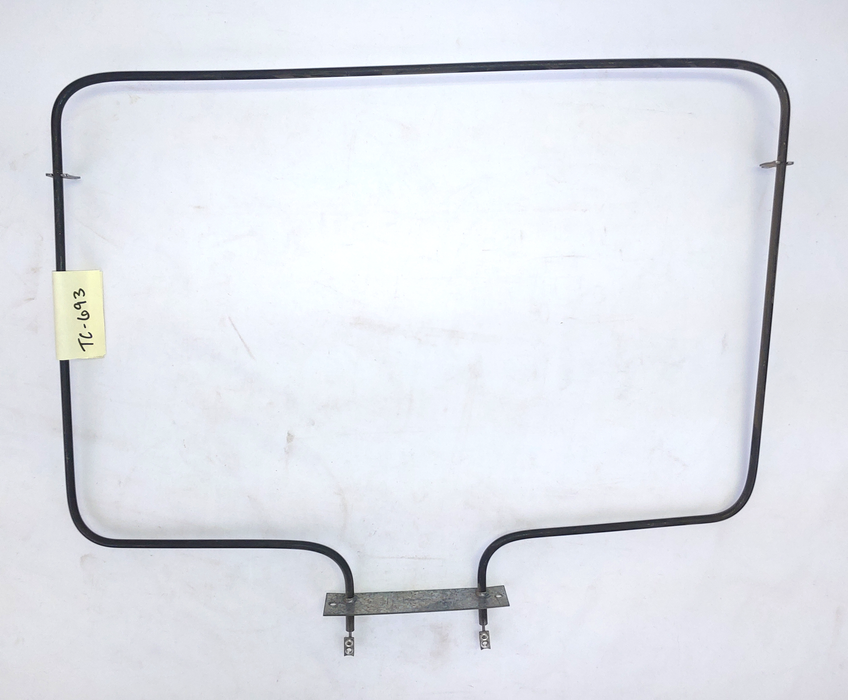

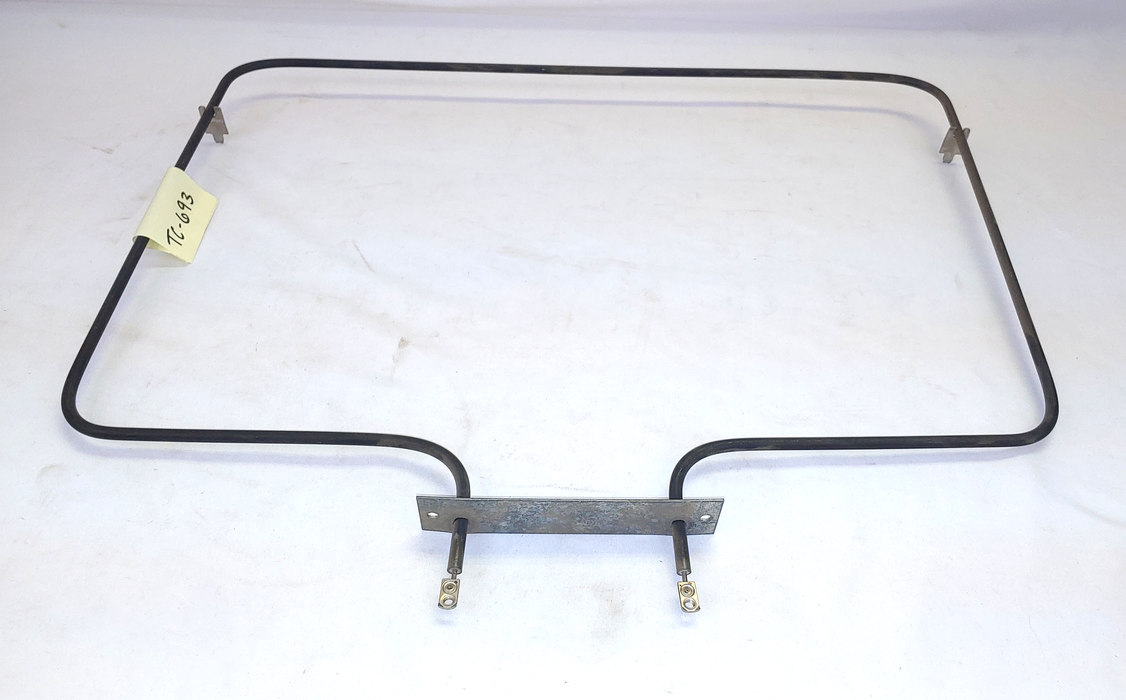

Therm Coil Drawing No.: 366R-1693-003 Therm Coil Model No.: TC-693
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.-
Replacement For Part Numbers:
Frigidaire / Tappan: 221L006P01, 221L006P02
Whirlpool: CH693, 453296, 202-873853-001, 873853-001
Other: AP3293803, AP3925514, AP3087143, TS693, F83-286, 456119, 115930
- 3000 W @ 250 V Rating

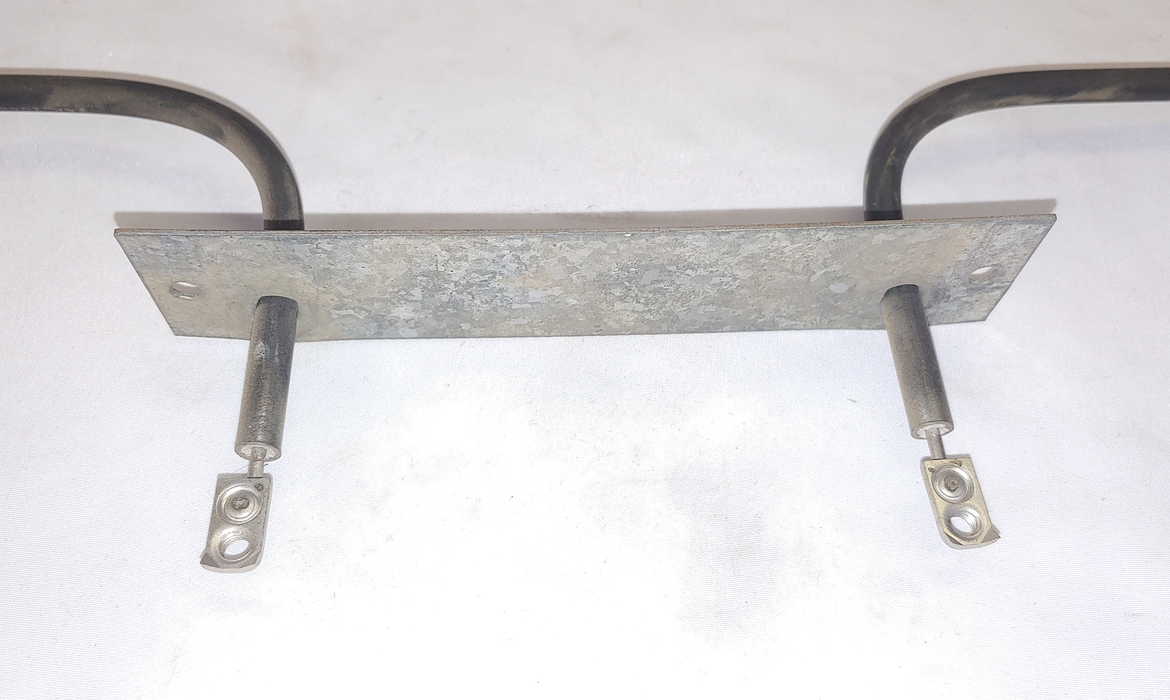

- Threaded Screw-In Terminals
- Approx. Overall Size: 21" Element Width x 15-5/8"" Length From Back Of Element To Mounting Brackets x 2" Insert From Bracket To Terminal Ends x 3-15/16" Center-to-Center Terminal Distance.
- Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed. If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.
