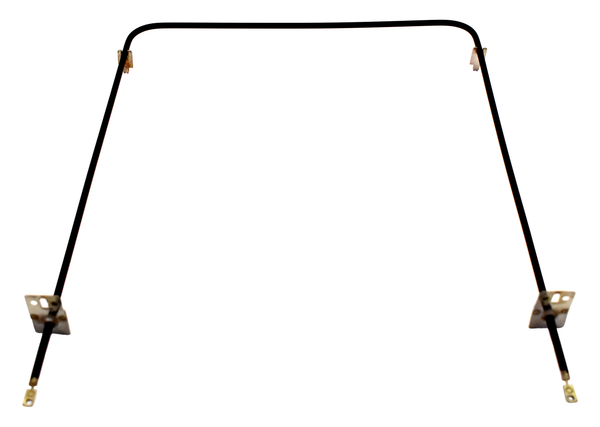

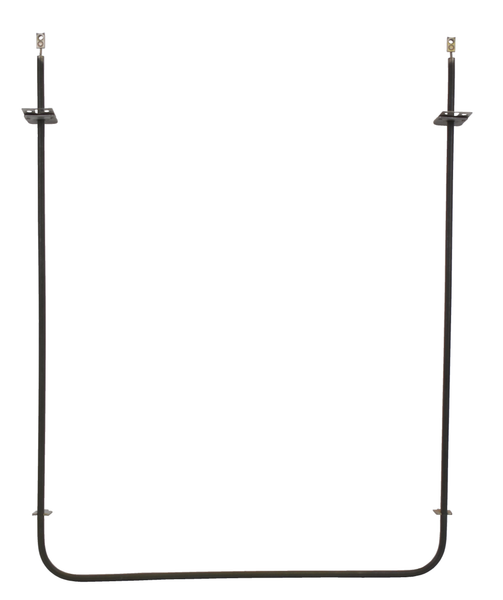

Model TC-707: Enterprise 150616 / CH707 Equivalent Range/Oven Bake Replacement Element, 2,200W @ 240V

Therm Coil Drawing No.: 366R-1707-003      Therm Coil Model No.: TC-707

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

• Replacement For Part Numbers:

Enterprise: 150616

Other: CH707, 453763, RP707, TS707, YCH707, AP3389330, 115939

• 2200 W @ 240 V Rating

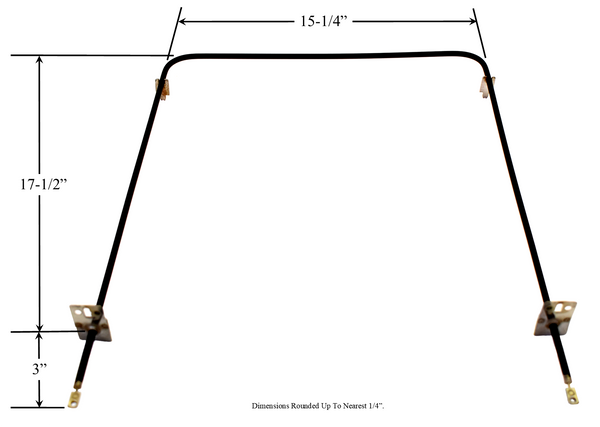

• Approx. Overall Size: 15-1/4" Width x 17-1/2" Length From Back Of Element To Mounting Brackets x 3" Insert From Bracket To Terminal Ends.
• Threaded Screw-In Terminals
• Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
