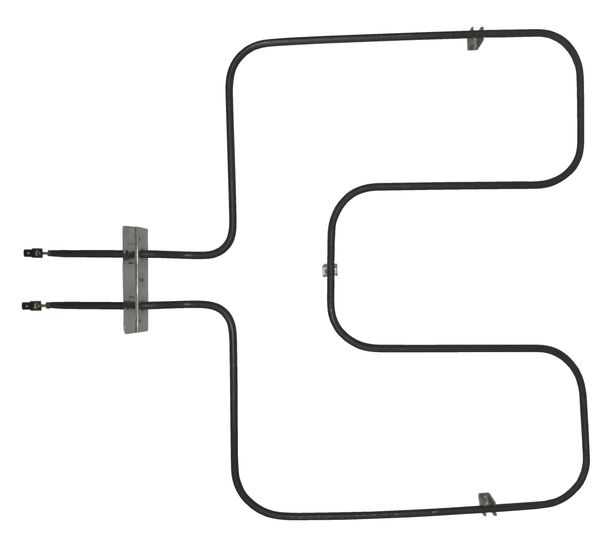

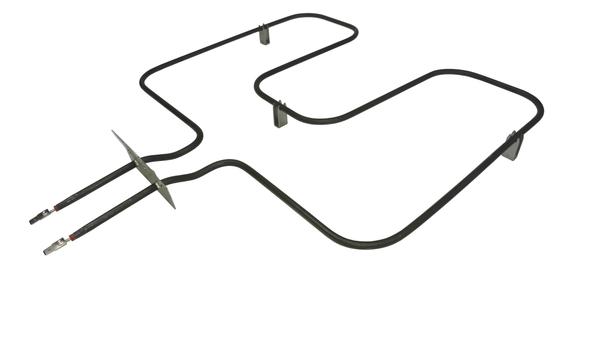

Model TC-74011047: Whirlpool/Maytag WP7406P438-60 / 74011047 Range/Oven Bake Replacement Element, 1,939W/2,585W @ 208V/240V

Therm Coil Drawing No.: 366R-3050-003      Therm Coil Model No.: TC-74011047

Description

• Replacement For Part Numbers:

Whirlpool / Maytag: WP7406P438-60, 7406P438-60, 74011047, WP7406P43860, 7406P43860

Other: 490206, 202-877943-001, 877943-001, AP6011324, PS11744520, 1544404

• 1,939 / 2,585 W @ 208 / 240 V Rating
• Overall Size: 16-1/4" Width, 18-11/32" Length, 3-11/64" From Mounting Bracket to Sheath End, 1-3/4" Terminal Center-to-Center

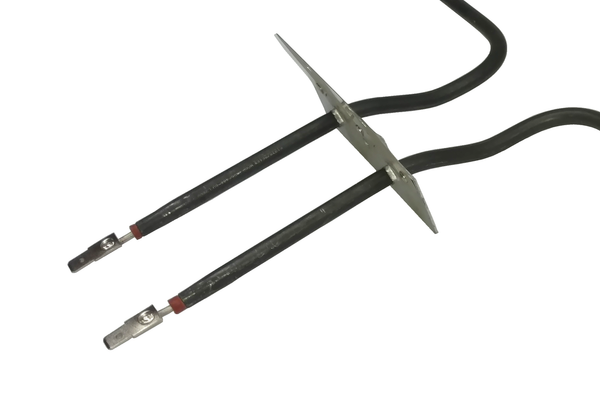

• Male Quick-Connect Push-In Terminals
• Used In: Maytag, Whirlpool, Amana, and Kenmore ovens. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others.
  Whirlpool also makes various appliance models for Sears / Kenmore.

Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any of their affiliates.
