Athena Series 88: 0° to 800°F Electronic Temperature Controller, Setpoint on PCB

Call for Availability
Original price $ 150.00
Original price $ 150.00 - Original price $ 150.00
Original price $ 150.00
Current price $ 127.50
$ 127.50 - $ 127.50
Current price $ 127.50
Availability:
Call for Availability

Therm Coil Drawing No.: 337T-1211-003

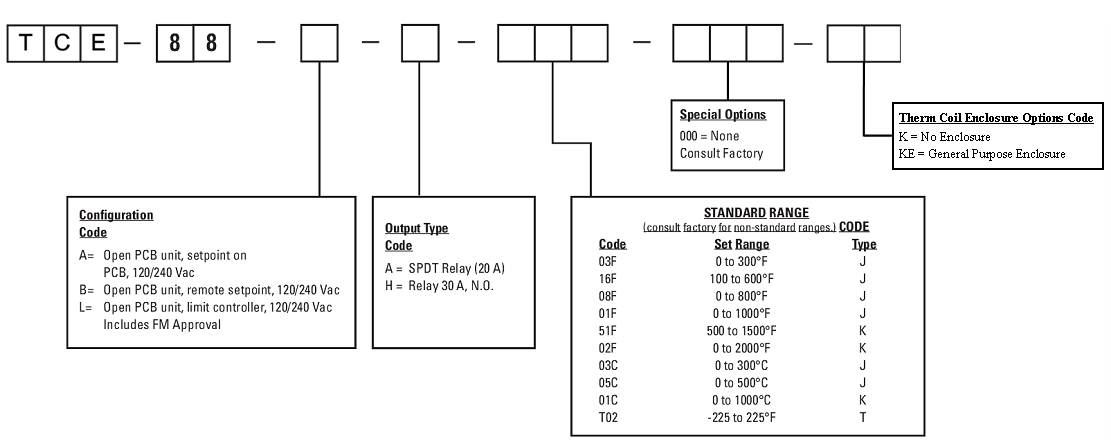

Therm Coil Model No: TCE-88-A-A-08F-000-K

Athena Model No.: 88-A-A-08F-000

Description

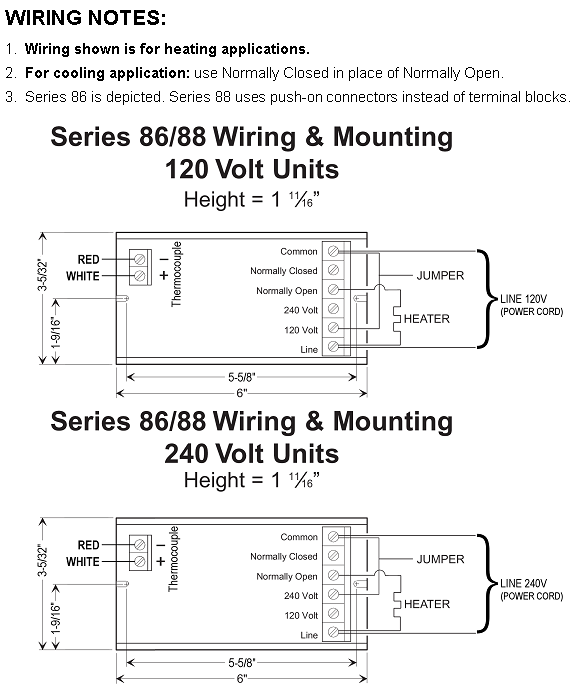

   This model can be wired for either heating or cooling applications, has a temperature range of 0° to 800°F, a PCB-mounted setpoint, and has a SPDT 30A relay rated for 120/240V use.  If you'd like this model, but with a remote setpoint, click here.

   The Athena Series 88 is a non-indicating, track mounted temperature controller that can be used as a superior replacement for bulb and capillary controllers. The controller accepts thermocouple input, and offers a 20 Amp relay output.

  • On-Off or Time Proportioning
  • Failsafe on Open Sensor
  • No Calibration Necessary
  • 1% Accuracy
  • Thermocouple Input
  • Track Mounted
  • Cooling Processes

Technical Specifications

  • Temperature Range: 0° to 800°F
  • Setpoint: Single-turn, 270° rotation potentiometer (local)
  • Setpoint Resolution: 1% with circuit board potentiometer
  • Calibration Accuracy: 2% at calibration points, potentiometer on circuit board
  • Ambient Temperature: 32°F to 130°F (0°C to 55°C)
  • Humidity Tolerance: 5 to 95%, non-condensing
  • Cold Junction Compensation: Internal electrical bridge
  • Hysteresis/ Proportional Band: Thermocouple adjustable from hysteresis of 5° to proportional band of 25° RTD deadband is 3° to proportional band of 10°
  • Thermocouple Break Protection: Output power off with open sensor
  • Hysteresis/ Proportional Band: Thermocouple adjustable from hysteresis of 5° to proportional band of 25° RTD deadband is 3° to proportional band of 10°
  • Thermocouple Break Protection: Output power off with open sensor
  • Output: Type A Relay - S.P.D.T. 20 A @ 120/240 V




Disclaimers: Athena is a registered trademark of Athena Controls Inc..
Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries.
