Finned Strip Heaters With Mounting Tabs
Finned Channel Strip heaters are most commonly used for natural convection air heating (mounted at the bottom inside cabinet-type ovens) and forced air heating (mounted inside a duct).
- Whenever the voltage to ground exceeds 300V, secondary insulators must be used.
- All strip heaters may be used at voltages lower than rated for reduced wattage.
- NOTE: For Units With Mounting Tabs: When supported by mounting tabs, the terminal end should be secured firmly. The opposite end should be loose to allow for thermal expansion.

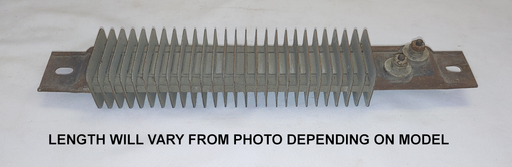

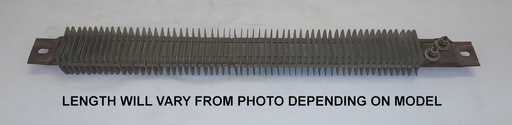

Finned Steel Strip Heaters With Mounting Tabs and (2) #10-32 or #10-24 Screw Terminals Offset (Diagonal) At One End

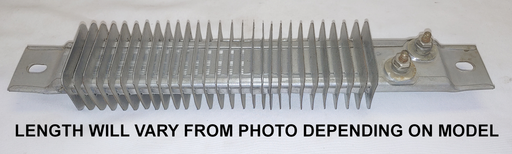

Finned Aluminized Steel Strip Heaters With Mounting Tabs and (2) #10-32 or #10-24 Screw Terminals Offset (Diagonal) At One End
