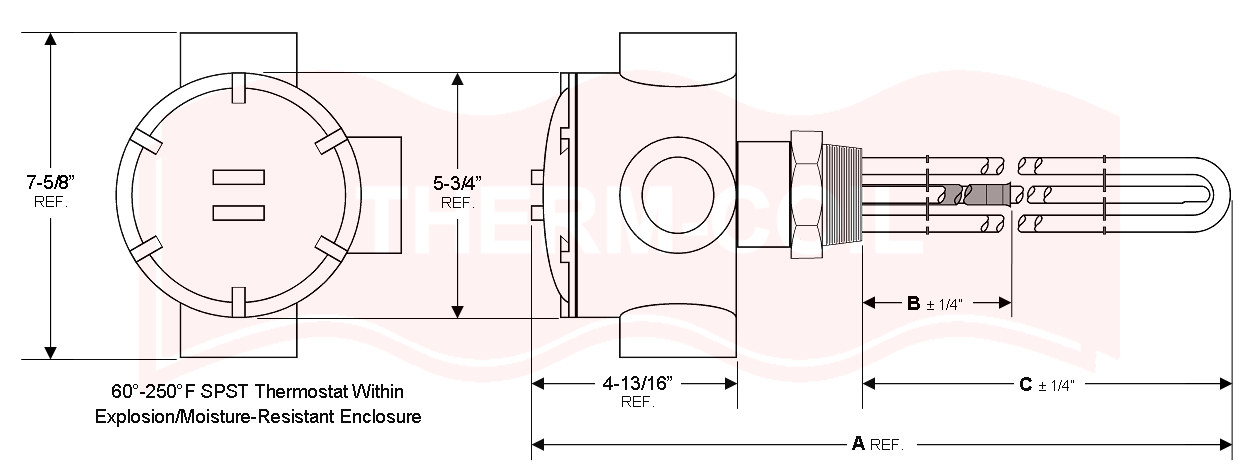

Regulated Ammonia Heaters (With Thermostat)

Therm Coil ES-WPT Models

2" NPT Steel Screw Plug With Steel Sheath Elements:

If in doubt about which materials are required for your application, please contact us at 1-724-872-5007 or customer.service@thermcoil.com.

  • Steel Sheath with 2" NPT Steel Screw Plug (Nickel Brazed or Welded): Our ES-WPT models with 26-49 watt density (W/IN.²) are suitable for heating ammonia (NH3).

 Regulated (With Thermostat):

  • 60°-250°F Thermostat Control: This is the default thermostat temperature range if you choose a regulated heater.
  • Alternate Temperature Ranges Are Available (Contact Us!):

            ●  30°-110°F
            ●  200°-550°F

NOTE - Regulated Models Require A Magnetic Contactor (sold separately) Unless They Are Rated:

  • ≤240V And Single-Phase With An Amperage Rating Of 25 Amps Or Less.

Explosion-Resistant Enclosure (Also Moisture-Resistant and Dust-Proof)
