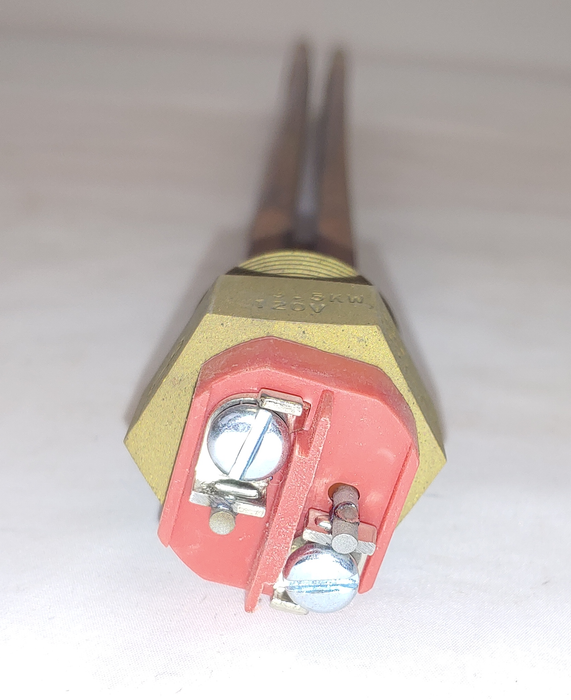

1" NPT Brass plug With 12" Copper Immersion Element: 3,500W @120V; 107W/IN.² For Small Tank Applications

List price $ 0.00

Description

  • High Watt Density With Superior Quality .315" diameter Copper Sheath Elements: Unlike many others, our replacement elements use commercial-grade .315" diameter elements for longer life.
  • 1" NPT Brass Screw Plug installation.
  • (2x) #8-32 Screw Terminal Connections.
  • Various Small Tank Applications Including Clean Water Heating.

Technical Specifications

  • Quantity Of Elements: 1
  • Element Sheath Material: .315" DIA. Copper
  • Element Immersion Length (Below Plug): (C) DIM.
  • Rating: 3,500W @ 120V (29.2A)
  • Watt Density: 108 W/IN.²
  • Mount Style: 1" NPT Brass Screw Plug
  • Terminals: (2x) #8-32 Round Screw
  • Enclosure: None
  • Thermostat: None
  • Thermowell: None
