Model CES-20053: 20kW, 480V, 4-1/2" Square Flange Incoloy Alloy Boiler Replacement Element

Save 20% Save 20%
Original price $ 751.00
Original price $ 751.00 - Original price $ 751.00
Original price $ 751.00
Current price $ 600.80
$ 600.80 - $ 600.80
Current price $ 600.80
Availability:
3 in stock, ready to be shipped

Therm Coil Drawing No.: 378F-1500-016A      Therm Coil Model No.: CES-20053

NOTE: Please call us at 724-872-5007 for a quote on lead time and to order.

Product Description

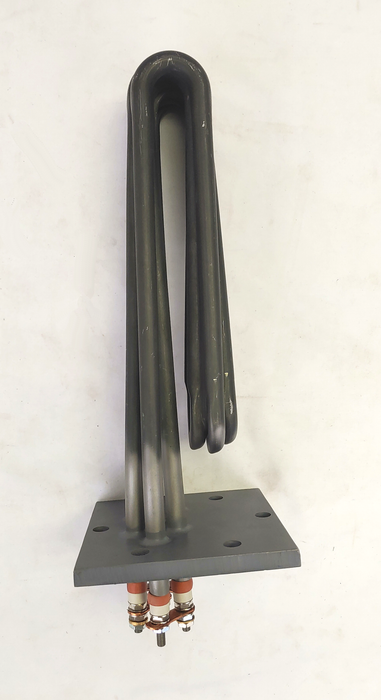

  • 20 kW @ 480 V With 10-3/8" Immersion Length (C) and 4-1/2" SQ. Steel Flange
  • Application: Replacement element compatible with various electric boilers, steam generators, sterilizers, and pressure vessels.
  • OEM-Superior Quality High-Performance Incoloy Alloy Sheath Elements For Long Life
  • Includes (1) Gasket and Hardware

Technical Specifications

  • Element Sheath Material: Incoloy 800
  • Quantity Of Elements: 3
  • Voltage: 480V
  • Wattage: 20,000 W (20 kW)
  • Immersion Length (C DIM.): 10-3/8"

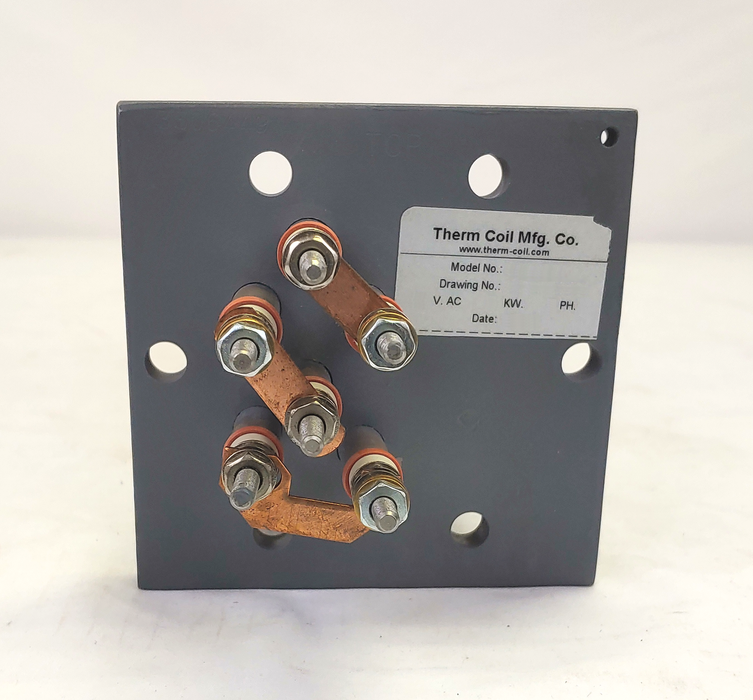

  • Terminal Connections: #10-32 Stud Terminals (Hardware Included)

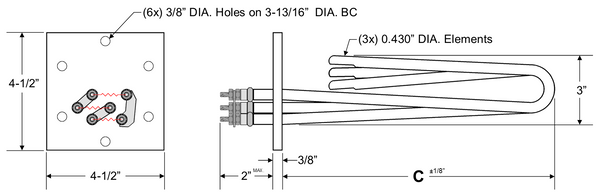

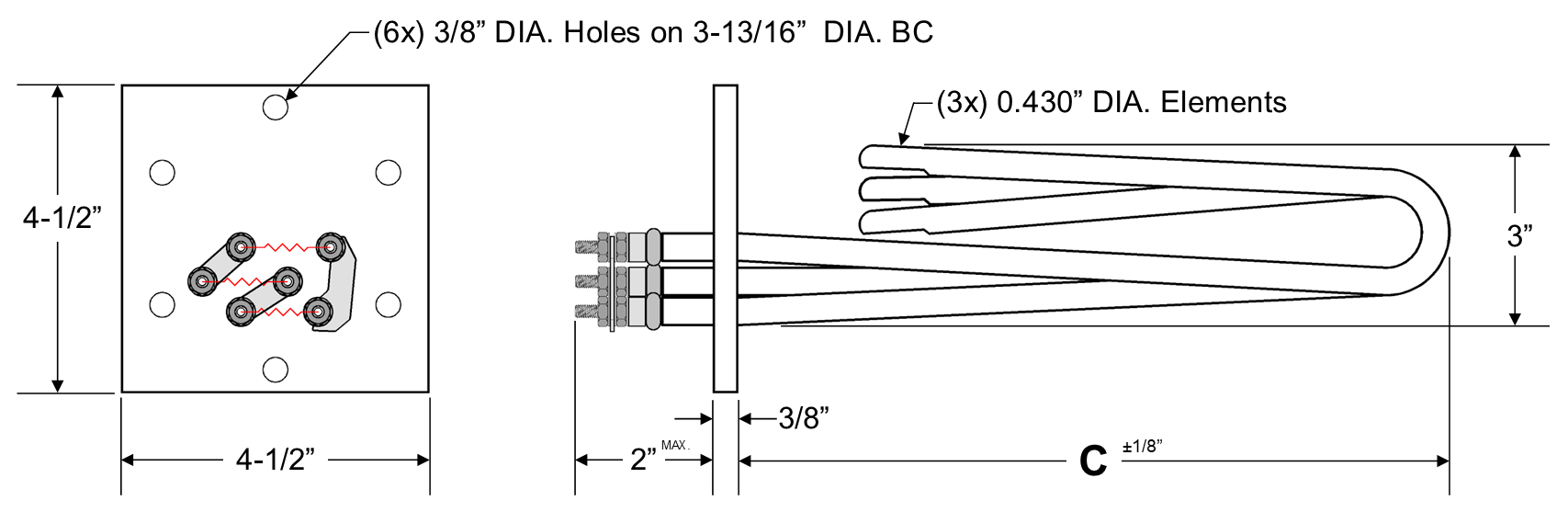

  • Flange Mounting Holes: (6x) .375" DIA. Holes On 3.8125" Bolt Circle Diameter

Equivalent Or Superior Replacement For Part Numbers:

    • Chromalox 155-554735-030
    • Chromalox 806397
    • Chromalox WC-SF-340-200B-45 480V 20KW
    • Eichenauer 300544H








         Disclaimers: Chromalox is a registered trademarks of Chromalox Inc. Corporation. Eichenauer is a registered trademark of Eichenauer Heizelemente GmbH & Co..

          Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name electric boilers, steam generators, sterilizers, and pressure vessels.

        Note: Image(s) may not represent exact item, but one in the same series.
