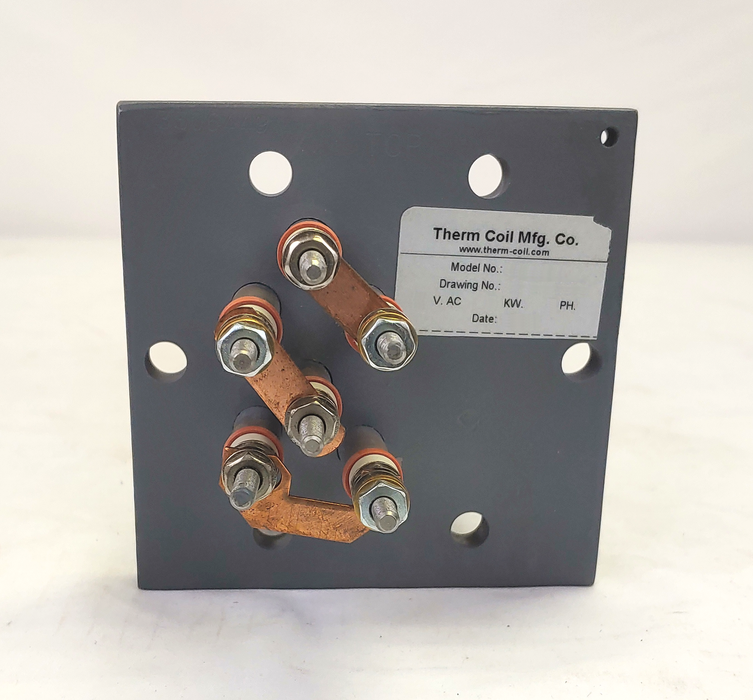

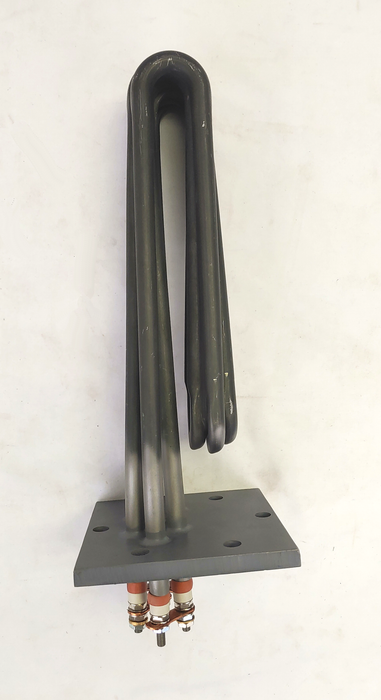

Model CES-22543: 22.5kW, 240V, 4-1/2" Square Flange Incoloy Alloy Boiler Replacement Element

Discounted price $ 575.66 List price $ 677.25

Therm Coil Drawing No.: 378F-1500-018A      Therm Coil Model No.: CES-22543

NOTE: Please call us a724-872-5007 for a quote on lead time and to order.

Product Description

  • 22.5 kW @ 240 V With 15-5/16" Immersion Length (C) and 4-1/2" SQ. Steel Flange
  • Application: Replacement element compatible with various electric boilers, steam generators, sterilizers, and pressure vessels.
  • OEM-Superior Quality High-Performance Incoloy Alloy Sheath Elements For Long Life
  • Includes (1) Gasket and Hardware
  • If you need extra gaskets, we sell them under our drawing no. 314E-1047-001 in 6, 12, and 24 packs.

Technical Specifications

  • Element Sheath Material: Incoloy 800
  • Quantity Of Elements: 3
  • Voltage: 240V
  • Wattage: 22,500 W (22.5 kW)

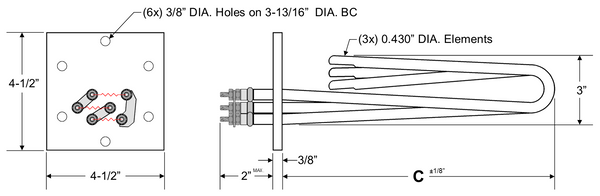

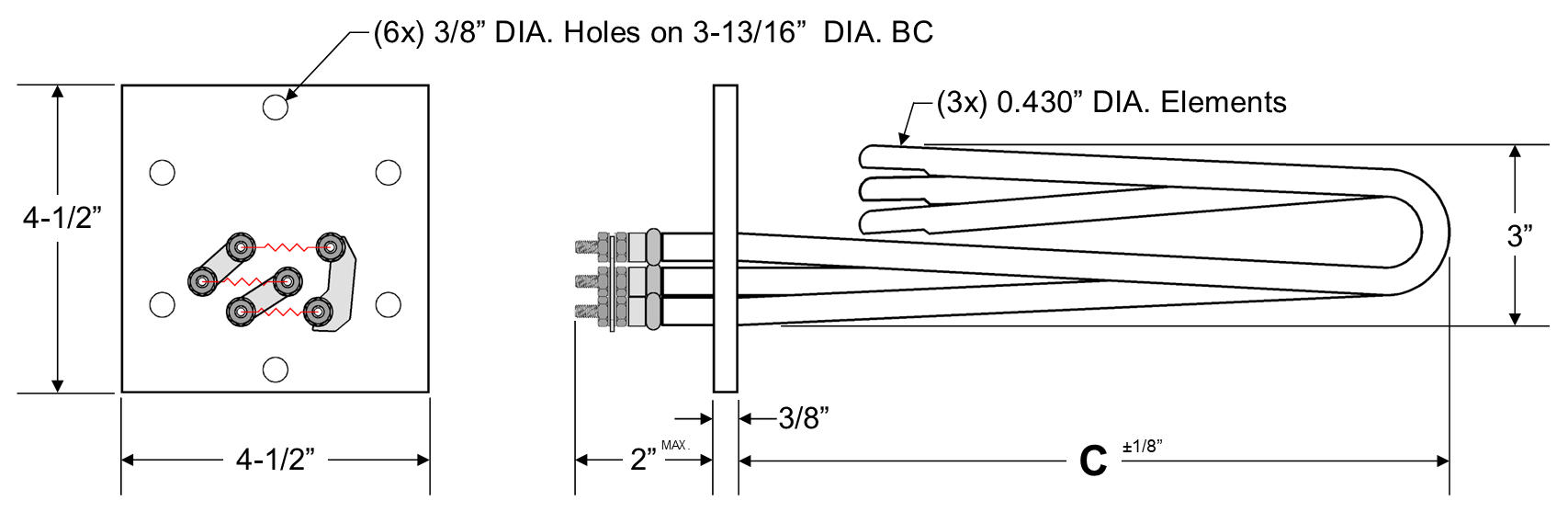

  • Immersion Length (C DIM.): 15-5/16"
  • Terminal Connections: #10-32 Stud Terminals (Hardware Included)
  • Flange Mounting Holes: (6x) .375" DIA. Holes On 3.8125" Bolt Circle Diameter

Equivalent Or Superior Replacement For Part Numbers:

    • Chromalox 155-554735-021
    • Chromalox WC-SF-347-225B-45, 240V, 22.5KW
    • Eichenauer 300475H (rated 24kW)



         Disclaimers: Chromalox is a registered trademarks of Chromalox Inc. Corporation. Eichenauer is a registered trademark of Eichenauer Heizelemente GmbH & Co..

          Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name electric boilers, steam generators, sterilizers, and pressure vessels.

        Note: Image(s) may not represent exact item, but one in the same series.
