18KW, 480V, 4-1/2" Square Flange Incoloy Alloy Boiler Element

Discounted price $ 375.70 List price $ 442.00

Therm Coil No.: 378F-1455-020

Product Description

  • 18KW @ 480V With 10-1/8" Immersion Length and 4-1/2" SQ. Steel Flange.
  • Application: Replacement element compatible with various electric boilers, steam generators, sterilizers, and pressure vessels.
  • Superior Quality High-Performance Incoloy Alloy Sheath Elements For Long Life
  • Includes Gasket and Hardware Kit

Technical Specifications

  • Element Sheath Material: Incoloy
  • Quantity Of Elements: 3
  • Voltage: 480V
  • Wattage: 18,000 W (18 KW)
  • Immersion Length: 10-1/8"
  • Terminal Connections: #10-32 Stud Terminals (Hardware Included)
  • Flange Mounting Holes: (6x) .375" DIA. Holes On 3.8125" Bolt Circle Diameter

Superior Or Equivalent Replacement For Part Numbers:

    • Sussman / Mr. Steam 39183F, 39183FSS
    • Getinge/Castle by Getinge 536520
    • Eichenauer 300603H
    • Eichenauer/Creative Assemblies 51A-1002-06
    • and others.

    Compatible With Sussman 480V 3-Phase Electric Boiler Models:

    • ES-18HU-18, and SSB-18: uses one heater total; (1x) 18KW
    • ES-30HU-30, and SSB-30: uses two heaters total; (1x) 12KW + (1x) 18KW
    • ES-36HU-36, and SSB-36: uses two heaters total; (2x) 18KW
    • ES-48HU-48, and SSB-48: uses three heaters total; (1x) 12KW + (2x) 18KW
    • ES-60HU-60, and SSB-60: uses four heaters total; (2x) 12KW + (2x) 18KW
    • ES-72HU-72, and SSB-72: uses four heaters total; (4x) 18KW
    • ES-85 and SSB-85: uses five heaters total; (5x) 18KW
    • ES-100HU-100, and SSB-100: uses six heaters total; (6x) 18KW
    • ES-135HU-135, and SSB-135: uses eight heaters total; (8x) 18KW

    Compatible With Mr. Steam 480V 3-Phase Steam Bath Generator Models:

    • CU-750: uses one heater total; (1x) 18KW
    • CU-1250: uses two heaters total; (1x) 12KW + (1x) 18KW
    • CU-1400: uses two heaters total; (2x) 18KW
    • CU-2000: uses three heaters total; (1x) 12KW + (2x) 18KW
    • CU-2500: uses four heaters total; (2x) 12KW + (2x) 18KW
    • CU-3000: uses four heaters total; (4x) 18KW
    • CU-4500: uses six heaters total; (6x) 18KW

    Disclaimers: Sussman / Mr Steam are registered trademarks of Sussman-Automatic Corporation. Getinge / Castle by Getinge are registered trademarks of Getinge AB or its subsidiaries. Eichenauer is a registered trademark of Eichenauer Heizelemente GmbH & Co..  Creative Assemblies Inc. / Allied Sales Corp. are copyrighted to same.

      Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name electric boilers, steam generators, sterilizers, and pressure vessels.

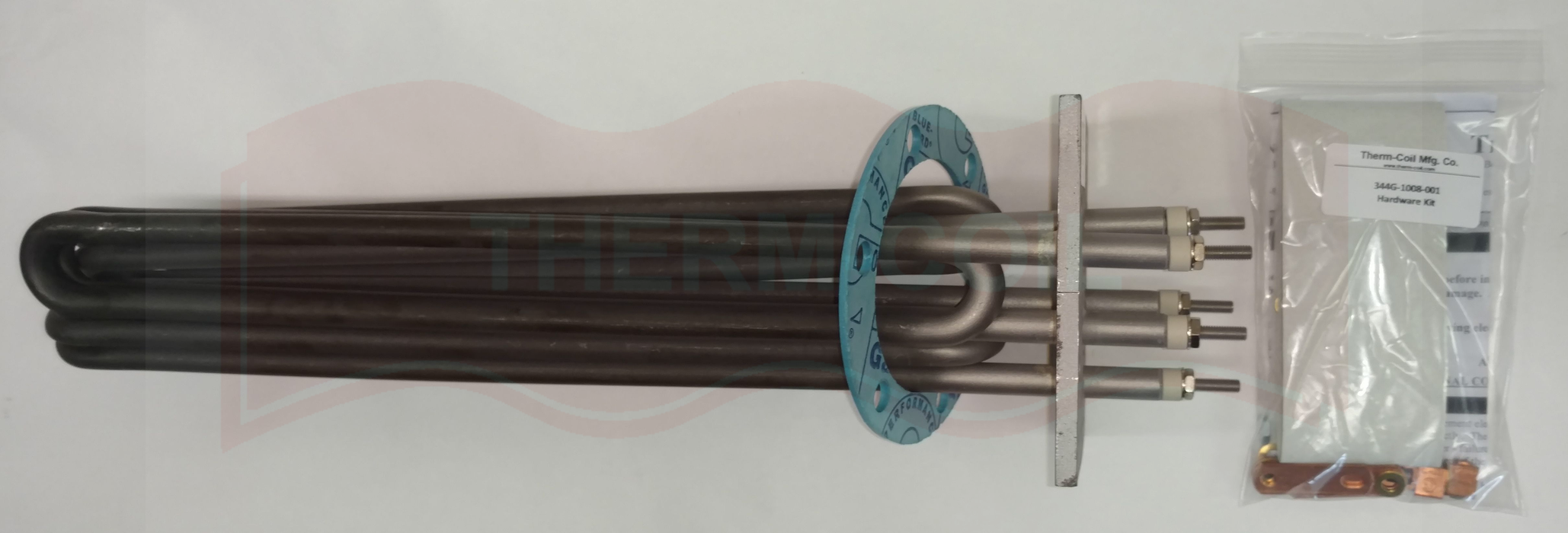

    Note: Image(s) may not represent exact item, but one in the same series.
