22.5KW, 480V, 4-1/2" Square Flange Incoloy Alloy Boiler Element

Save 15% Save 15%
Original price $ 630.50
Original price $ 630.50 - Original price $ 630.50
Original price $ 630.50
Current price $ 535.93
$ 535.93 - $ 535.93
Current price $ 535.93
5 in stock, ready to be shipped

Therm Coil No.: 378F-1455-025A

Product Description

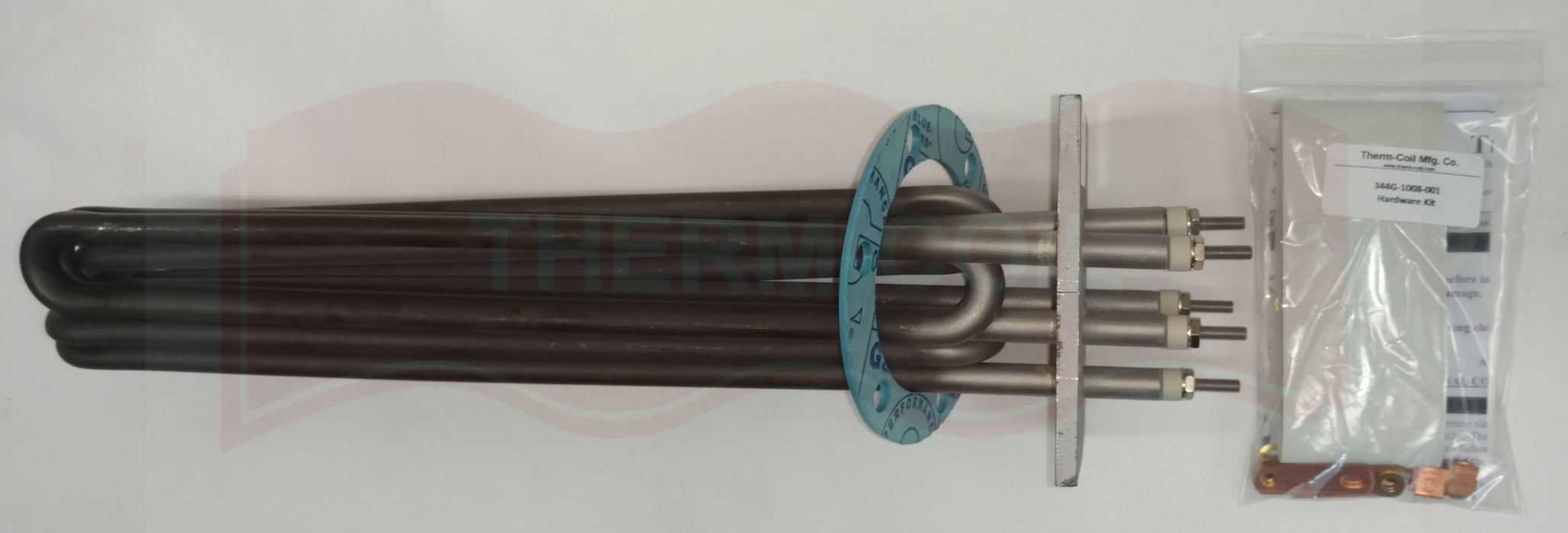

  • 22.5KW @ 480V With 15" Immersion Length and 4-1/2" SQ. Steel Flange.
  • Application: Replacement element compatible with various electric boilers, steam generators, sterilizers, and pressure vessels.
  • Superior Quality High-Performance Incoloy Alloy Sheath Elements For Long Life
  • Includes (1) Gasket and Hardware Kit

Technical Specifications

  • Element Sheath Material: Incoloy
  • Quantity Of Elements: 3
  • Voltage: 480V
  • Wattage: 22,500 W (22.5 KW)
  • Immersion Length: 15"
  • Terminal Connections: #10-32 Stud Terminals (Hardware Included)
  • Flange Mounting Holes: (6x) .375" DIA. Holes On 3.8125" Bolt Circle Diameter

Superior Or Equivalent Replacement For Part Numbers:

    • Sussman / Mr. Steam 39223F, 39223FSS
    • Eichenauer 300641H
    • Therm Coil 39223F-ALLOY
    • and others.

    Compatible With Sussman 480V 3-Phase Electric Boiler Models:

    • ES-160HU-160, and SSB-160: uses seven heaters total; (7x) 22.5KW
    • ES-180HU-180, and SSB-180: uses eight heaters total; (8x) 22.5KW

      Disclaimers: Sussman / Mr Steam are registered trademarks of Sussman-Automatic Corporation. Getinge / Castle by Getinge are registered trademarks of Getinge AB or its subsidiaries. Eichenauer is a registered trademark of Eichenauer Heizelemente GmbH & Co..  Creative Assemblies Inc. / Allied Sales Corp. are copyrighted to same.

        Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name electric boilers, steam generators, sterilizers, and pressure vessels.

      Note: Image(s) may not represent exact item, but one in the same series.
