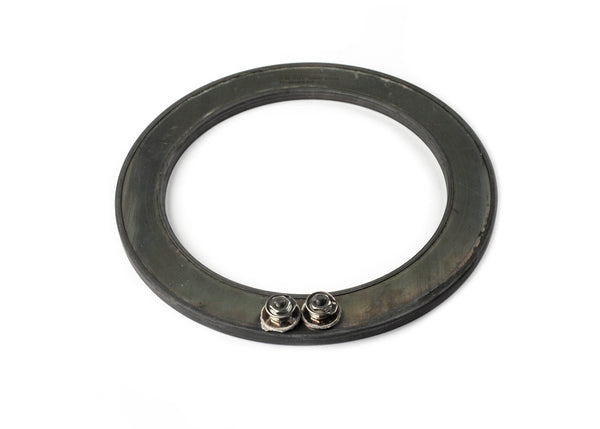

Therm Coil Drawing No.: 394R-1002-009 Therm Coil Model No.: A-60-541
- Applications: Tank Bottoms, Platens, Hot Plates, Glue & Lead Melting Pots
Alternate Part Numbers: Chromalox A-60, A-60 HT, 135968, CHROM135968
- 500 W @ 240 V Rating
Overall Size: A = 6-19/32" (Outer Diameter), B = 4-1/2" (Inner Diameter), C = 5/16" (Disc Thickness), 17/32" Terminal Height Above Disc
Chrome Steel Sheath: 1200°F max. sheath temp.
Single Heat Ring: Have two terminals for single wattage on-off switch or thermostat.
Refractory-Insulated Construction: for dependable long service life.
Therm Coil MFG. Co. is not affiliated with Chromalox, or any other listed manufacturers or their affiliates.
