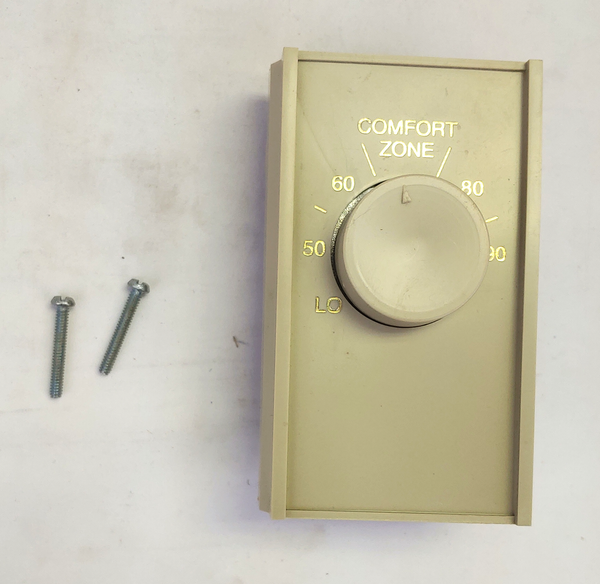

A44ANT Remote Wall-Mounted Double-Pole Single-Throw Room Thermostat, 50°-90°F

Therm Coil Model No. A44ANT      Therm Coil Drawing No. 337T-3015-001

• This controls two separate heating circuits of equal or unequal capacity.
• Switches are calibrated to operate simultaneously.
• This model permits the connection of a total of 44 Amps heating load to one thermostat.

Specifications

Switch: DPST with Anticipator

Voltage: 125/250/277 VAC

Amps: 2 - 22

Temperature Range: 50°-90°F

Cover Color: Light Ivory
