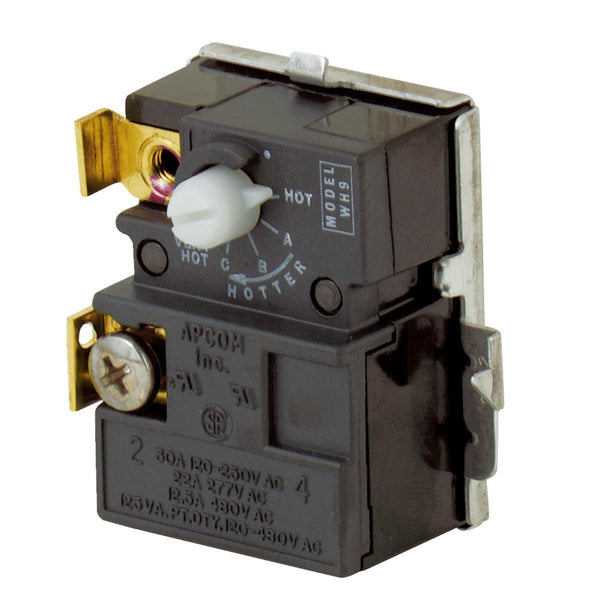

Therm Coil WH9 Lower Electric Water Heater Thermostat 110°-160°F; Bradford White Compatible

Save 20% Save 20%
Original price $ 20.45
Original price $ 20.45 - Original price $ 20.45
Original price $ 20.45
Current price $ 16.36
$ 16.36 - $ 16.36
Current price $ 16.36
11 in stock, ready to be shipped

Therm Coil Drawing No. 337T-4000-002      Therm Coil Model No. WH9

Apcom Model No. WH9


  • Replaces Models: Therm-O-Disc 7025, 8025, Apcom WH5, WH7, WH9, National Brand 559485, Reliance 9000507, and more.
  • Fits most residential water heaters including those with Apcom, National Brand, Reliance, Robertshaw, and Therm-O-Disc thermostats, including Bradford White Water Heaters.
  • For Lower Single-Element In Residential Water Heaters
  • Adjustable 110°-160°F
  • Single Pole Single Throw Thermostat Rated 208V thru 440/480V
  • Engineered to be more sensitive and accurate than conventional thermostats, APCOM water heater thermostats are the most popular in the industry. Their patented design encapsulates the bimetal thermostat sensor, protecting it from the temperature changes of other components. This feature means you get a thermostat with enhanced temperature sensitivity for accurate, reliable system control.
  • APCOM thermostats are remarkably easy to install. The wiring terminals feature "tear drop" holes that enter into the bind head screw terminal, making it easier to lock the wire into place. This speeds the assembly process, and helps ensure that connections are made properly. In addition, our limit control/safety override feature automatically trips at 180 degrees to improve safety (±5°).

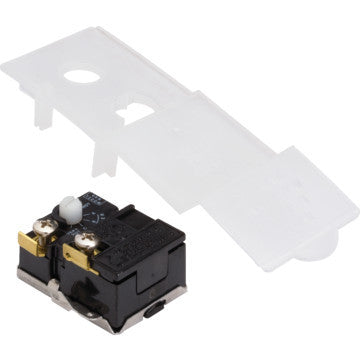

  • Includes Cover
  • Made In the U.S.A.

Electrical Rating Information

  • Calibrated to 120°±5°F at "HOT" indicator setting
  • Temperature Range: 110° to 160°F
  • Temperature Differential: 7° to 17°F below calibration temperature.
  • 30 Amps @ 120-250 VAC
  • 22 Amps @ 277 VAC
  • 12.5 Amps @ 480 VAC
  • 125 Volt Amps For Pilot Duty @ 120-480 VAC
