CC-7543 Model: 7500W @ 240V 3-Phase 16" Immersion Length Unregulated Copper Sheath With Brass 2-1/2" NPT Screw Plug Immersion Elements

Call for Availability
Original price $ 0.00 - Original price $ 0.00
Original price
$ 0.00
$ 0.00 - $ 0.00
Current price $ 0.00
Availability:
Call for Availability

Therm Coil CC-7543 Model

Drawing Number: 365E-1003-016

Copper Sheath Elements With 2-1/2" NPT Brass Plug:

If in doubt about which materials are required for your application, please contact us at 1-724-872-5007 or rheinhold@thermcoil.com.

  • Copper Sheath with Brass Screw Plug (Silver Brazed): Our CC-models with 39-66 watt density (W/IN.²) are for use in clean water.

Unregulated (No thermostat):

  • If you need this type of element but with temperature control, please see our ECC Models.

Enclosure:

  • NEMA 1, General Purpose Enclosure: the default enclosure type.

            ●  Weather-Resistant Enclosures
            ●  Explosion-Resistant Enclosures (Also Dust & Weather-Resistant)

General Information:

  • 7500W @ 240V 3-Phase
  • Includes Thermowell: accommodates up to 3/8" DIA. sensing bulb.
  • Screw plug immersion heaters must be fully covered by your liquid to prevent heater failure. (Other medium applications are possible, but require factory consultation.)
  • All 240V models have the option to be operated at 208 VAC with a 25% reduction in wattage rating.

Technical Specifications

  • Element Sheath Material: Copper
  • Quantity Of Elements: 3

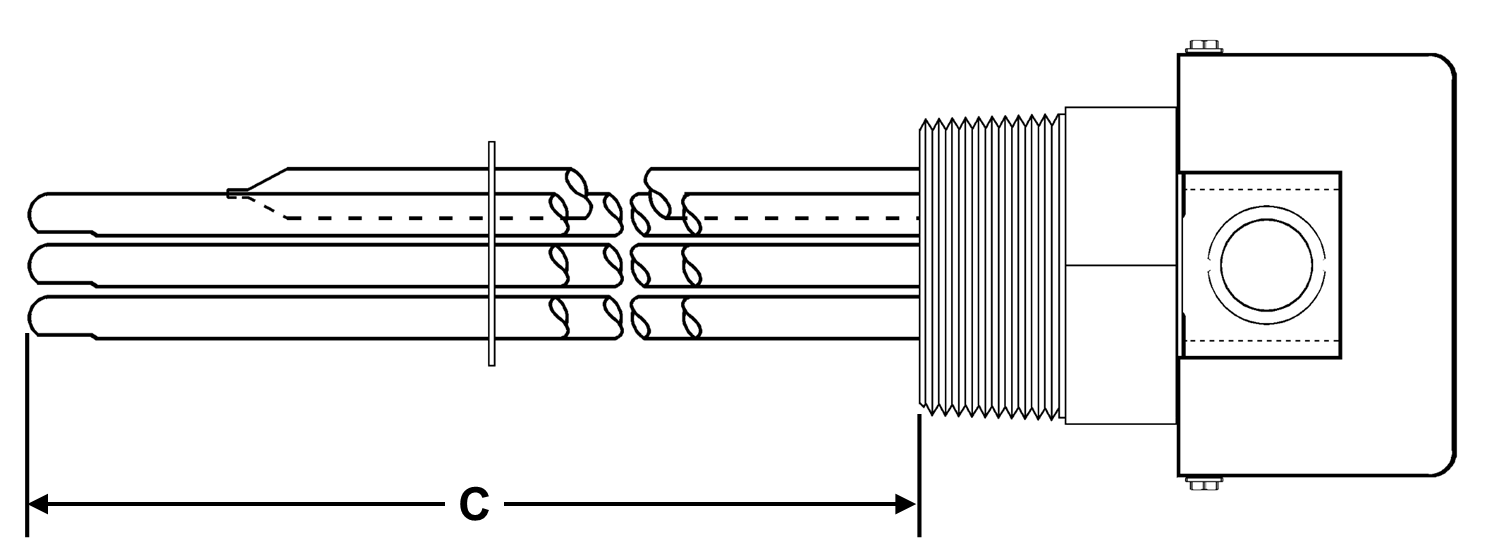

  • Immersion Length: 16" (C Dim.)
  • Terminal Connections: #10-32 Stud Terminals & Includes (3x) 7" Lead Wires
  • Screw Plug Size: 2-1/2" NPT
  • Screw Plug Material: Brass
  • Enclosure Type: NEMA 1 General Purpose
  • Thermowell Accommodates Sensing Bulb Size: .375" DIA.
  • Temperature Control Type: None
  • Temperature Control Range: N/A
