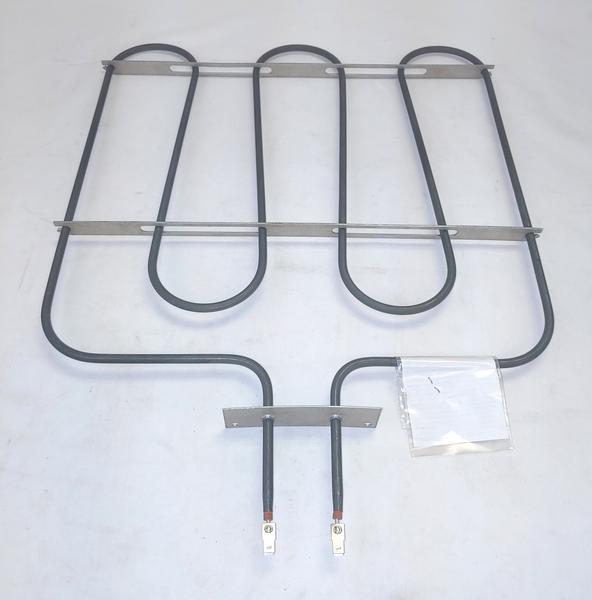

Model TC-5871: Whirlpool CH-5871 / Amana 85289-1 Range/Oven Broil Replacement Element, 3,400W @ 250V

Therm Coil Drawing No.: 366R-3047-003      Therm Coil Model No.: TC-5871

Description

• Replacement For Part Numbers:

Amana / Whirlpool: 85289-1, 852891

Whirlpool: CH5871, 029-875871-001, 875871, 029-874544-001, 874544, 85289-0810

Other: 115802 , AP3776621 , AP3087084

• 3400 W @ 250 V Rating

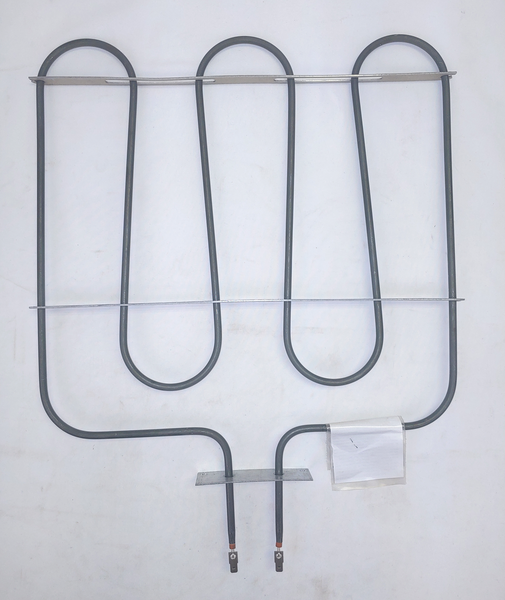

• Overall Size: 14-3/4" Element Width x 15-3/4" Back Of Element To Mounting Brackets x 3" Insert (Bracket To Terminal End) x 1-3/4" Center-to-Center Terminal Width.

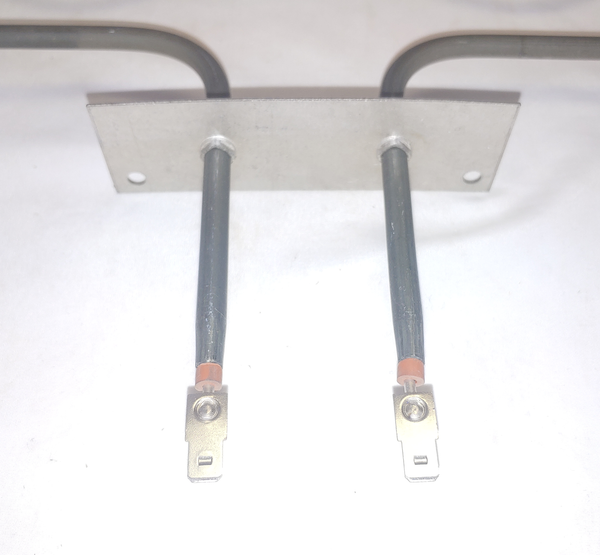

• Male Quick-Connect Push-In Terminals
• Used in various models of ovens/ranges: use part numbers and dimensions to determine if this broil element will fit your appliance.

Therm Coil MFG. Co. is not affiliated with Frigidaire, Sears, Amana, or any of their affiliates.
