Athena Series 88: 0° to 1,000°F Electronic Temperature Controller Within NEMA 1 Enclosure

Call for Availability
Original price $ 0.00 - Original price $ 0.00
Original price
$ 0.00
$ 0.00 - $ 0.00
Current price $ 0.00
Availability:
Call for Availability

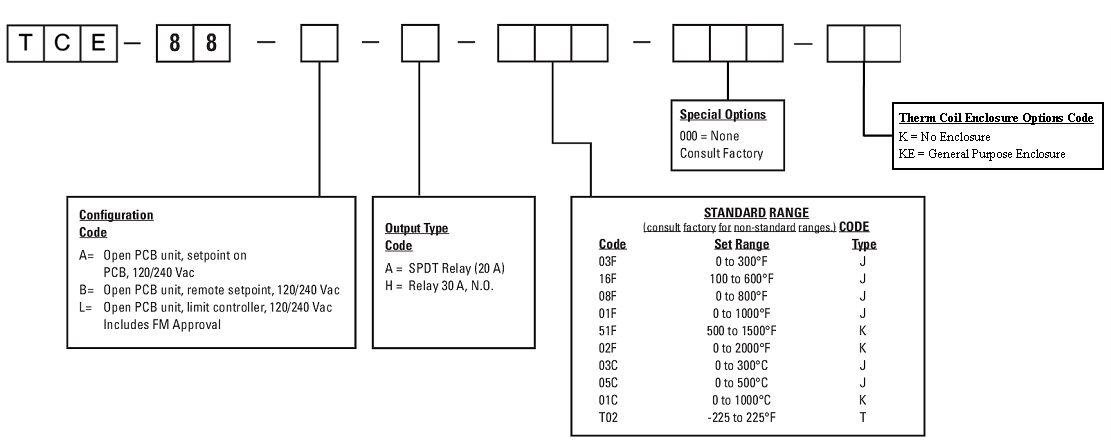

Therm Coil Drawing No.: 337T-1220-009       Therm Coil Model No: TCE-88-1000JE

Description

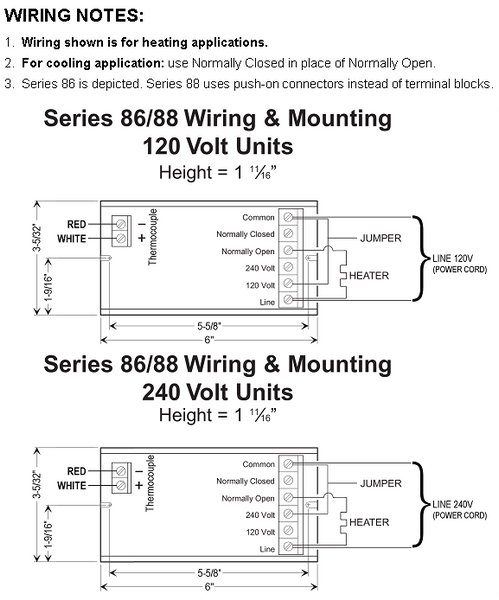

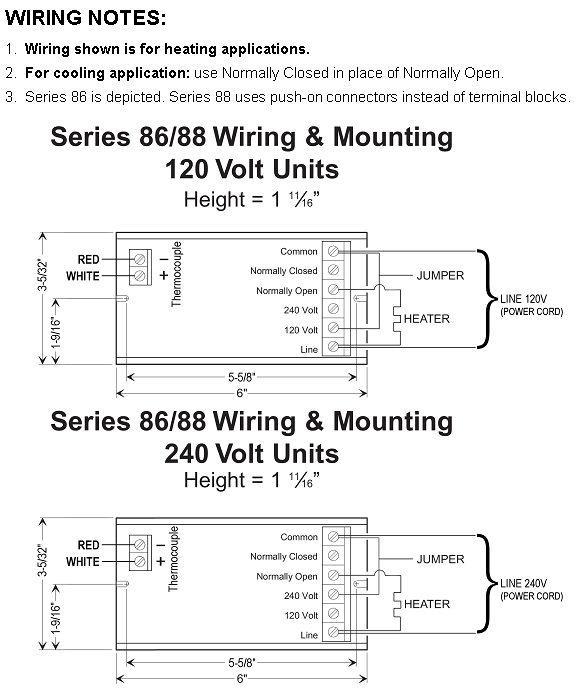

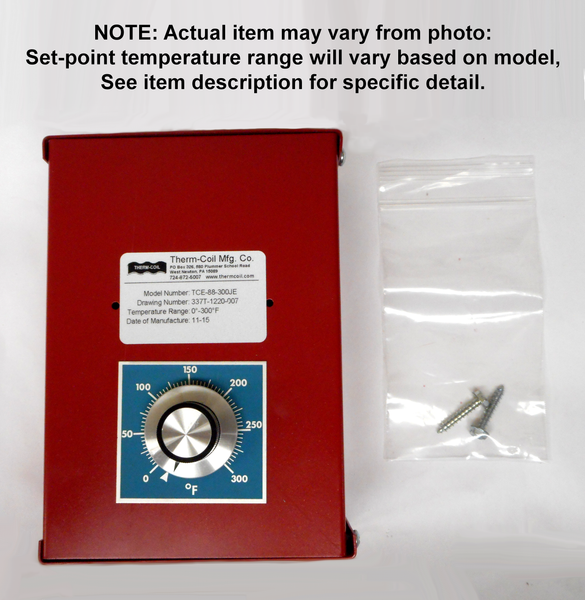

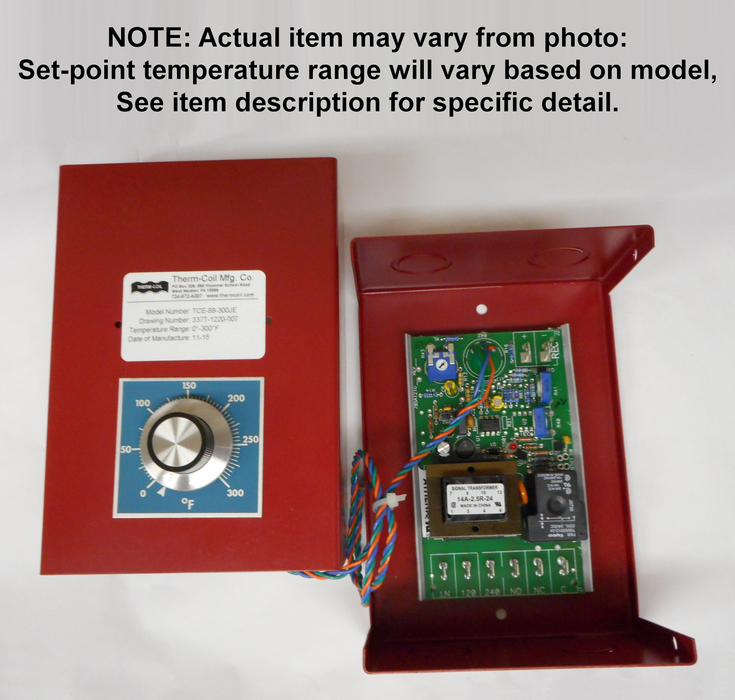

   This model comes within a NEMA 1 rated enclosure that can be wall-mounted with the included hardware and has the temperature set-point mounted on the cover for convenient access.  It can be wired for either heating or cooling applications, has a temperature range of 0° to 1,000°F, and has a SPDT 30A relay rated for 120/240V use.

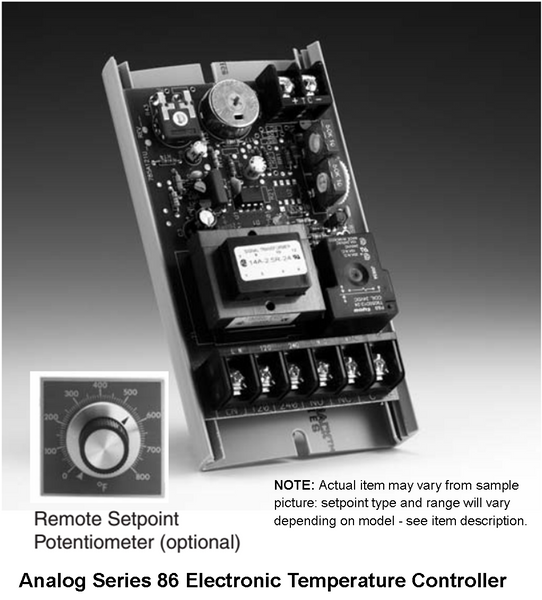

   The Athena Series 88 is a non-indicating temperature controller that can be used as a superior replacement for bulb and capillary controllers. The controller accepts thermocouple input, and offers a 20 Amp relay output.

Note: This unit does not include the thermocouple required for its operation.

  • On-Off or Time Proportioning
  • Failsafe on Open Sensor
  • No Calibration Necessary
  • 1% Accuracy
  • Thermocouple Input
  • Track Mounted
  • Cooling Processes

Technical Specifications

  • Temperature Range: 0° to 1,000°F
  • Setpoint: Single-turn, 270° rotation potentiometer (mounted to cover)
  • Setpoint Resolution: 1/4% with remote potentiometer
  • Calibration Accuracy: 1% at calibration points with remote potentiometer
  • Ambient Temperature: 32°F to 130°F (0°C to 55°C)
  • Humidity Tolerance: 5 to 95%, non-condensing
  • Cold Junction Compensation: Internal electrical bridge
  • Hysteresis/ Proportional Band: Thermocouple adjustable from hysteresis of 5° to proportional band of 25° RTD deadband is 3° to proportional band of 10°
  • Thermocouple Break Protection: Output power off with open sensor
  • Hysteresis/ Proportional Band: Thermocouple adjustable from hysteresis of 5° to proportional band of 25° RTD deadband is 3° to proportional band of 10°
  • Thermocouple Break Protection: Output power off with open sensor
  • Output: Type A Relay - S.P.D.T. 20 A @ 120/240 V
  • Enclosure: Genral Purpose, NEMA 1
  • Enclosure Dimensions: 7" H x5" W x 3" D




Disclaimers: Athena is a registered trademark of Athena Controls Inc..
Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries.
