Model HUB-11-38683N-15: 15" Immersion Boiler Replacement Element With 2-1/2" SQ. Flange

Sale price $ 222.06 Regular price $ 261.25

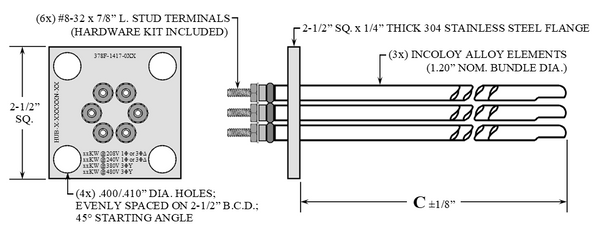

Therm Coil Drawing No.: 378F-1417-011          Therm Coil Model o: HUB-11-38683N-15

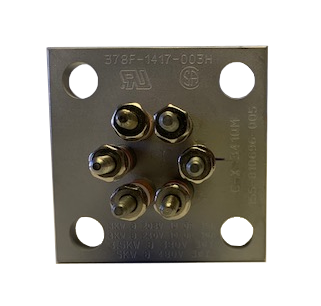

This Hubbell 11-38683N equivalent replacement element has a 15" immersion length (C DIM.), a 2-1/2" square by 1/4" thick stainless steel flange, Incoloy alloy sheath, and an electrical rating of:

  • 20,000 Watts at 208 Volts when Single Phase or Three Phase Delta
  • 20,000 Watts at 380 Volts when Three Phase Wye

  This replacement element is fully compatible with Hubbell electric water heaters that require OEM part number 11-38683N and have an immersion length of 15".





Disclaimers: Hubbell is a registered trademarks of Hubbell Incorporated Corporation. Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name water heaters, electric boilers, steam generators, sterilizers, pressure vessels, and more.





This Hubbell replacement element has a 2-1/2" square by 1/4" thick stainless steel flange, an alloy sheath, a 15" immersion length, and electrical rating of:

  • 20,000 Watts at 208 Volts when Single Phase
  • 20,000 Watts at 380 Volts when Three Phase Wye
