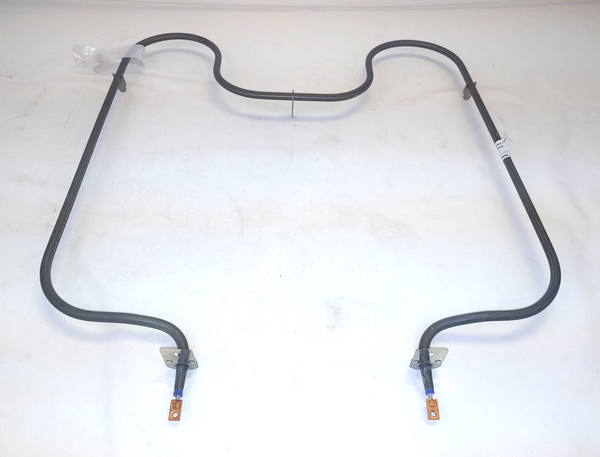

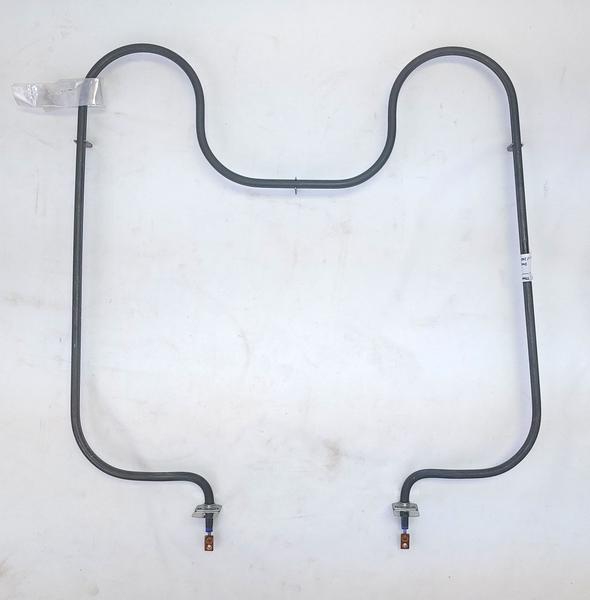

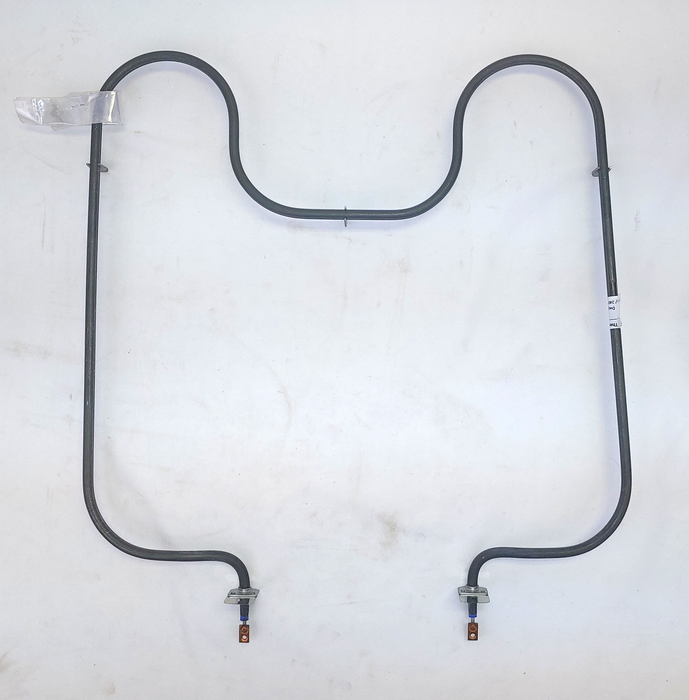

Model TC-2866: Tappan/Frigidaire 08012635 Equivalent Range/Oven Bake Replacement Element, 1,384/2,000W @ 208/240V

Discounted price $ 44.20 List price $ 52.00

Therm Coil Drawing No.: 366R-3019-003      Therm Coil Model No.: TC-2866

Description

HELPFUL HINT: Use CTRL+F to use the search function for your element part number:
  • Replacement For Part Numbers:

Frigidaire / Tappan: 08012635, 221T015P01, 221T015P02, 221T015P03, 221T015P04, 221T015P05, 221T021P01

Other: CH2866, 455080, TJ90CH2866 , AP4502543, AP2102567, P4502543, 115530 ,RP718, TS2866, TS718, YCH2866, 770, AH413410, EA413410, F83-469, PS413410, T1506838, T1506952

  • 1384W / 2000W @ 208V / 240V
  • Approximate Overall Size:  16" Wide x 17" From Back Of Element To Bracket x 6" Center-to-Center Of Terminals (This distance is flexable due to the nature of the element's design)

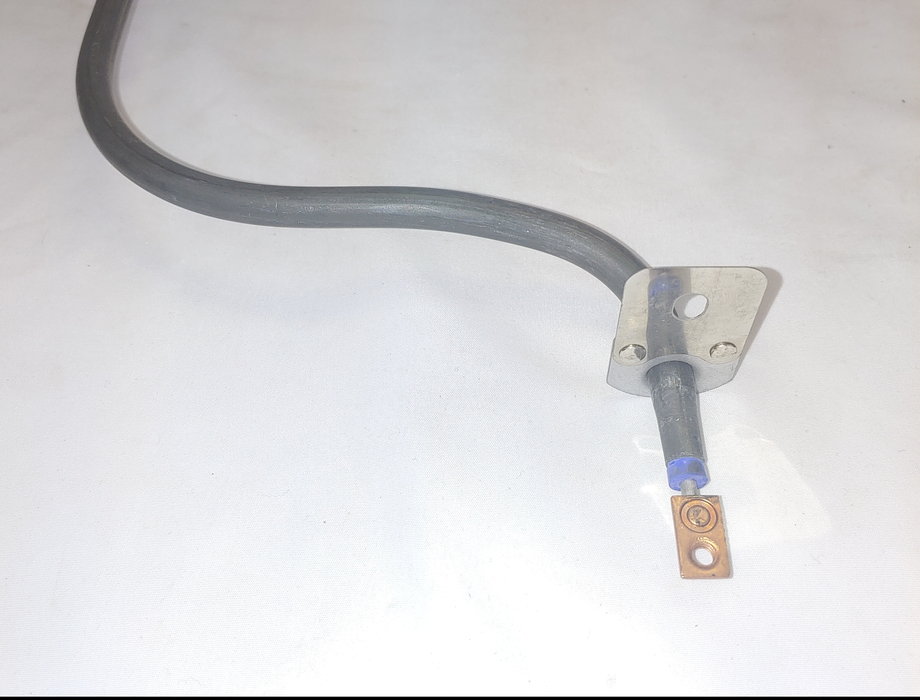

  • #8-32 Screw-In Terminals
  • Used in various models of General Electric, Hotpoint, RCA Sears / Kenmore, and othersIf your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
HELPFUL HINT: Use CTRL+F to use the search function for your appliance model number:
    • Used In The Following Frigidaire / Tappan Oven/Range Model Numbers and More:
    11-1153-00-04 , 11-1153-23-04 , 11-1153-45-04 , 11-1153-57-04 , 11-1153-66-04 , 11-1553-00-04 ,11-1553-23-04 , 11-1553-45-04 , 11-1553-57-04 , 11-1553-66-04 , 11-1653-00-04 , 11-1653-23-04 , 11-1653-45-04 , 11-1653-57-04 , 11-1653-66-04 , 11-6553-00-04 ,11-6553-23-04 , 11-6553-45-04 , 11-6553-57-04 , 11-6553-66-04 , 11-6653-00-04 , 11-6653-23-04 , 11-6653-45-04 , 11-6653-57-04 , 11-6653-66-04, KB122G0 ,KB122G1 , KB122G2 , KB122G3 , KB122G4 , RG94BAB4



      Therm Coil MFG. Co. is not affiliated with Frigidaire, Sears, or any other listed manufacturers or their affiliates.
