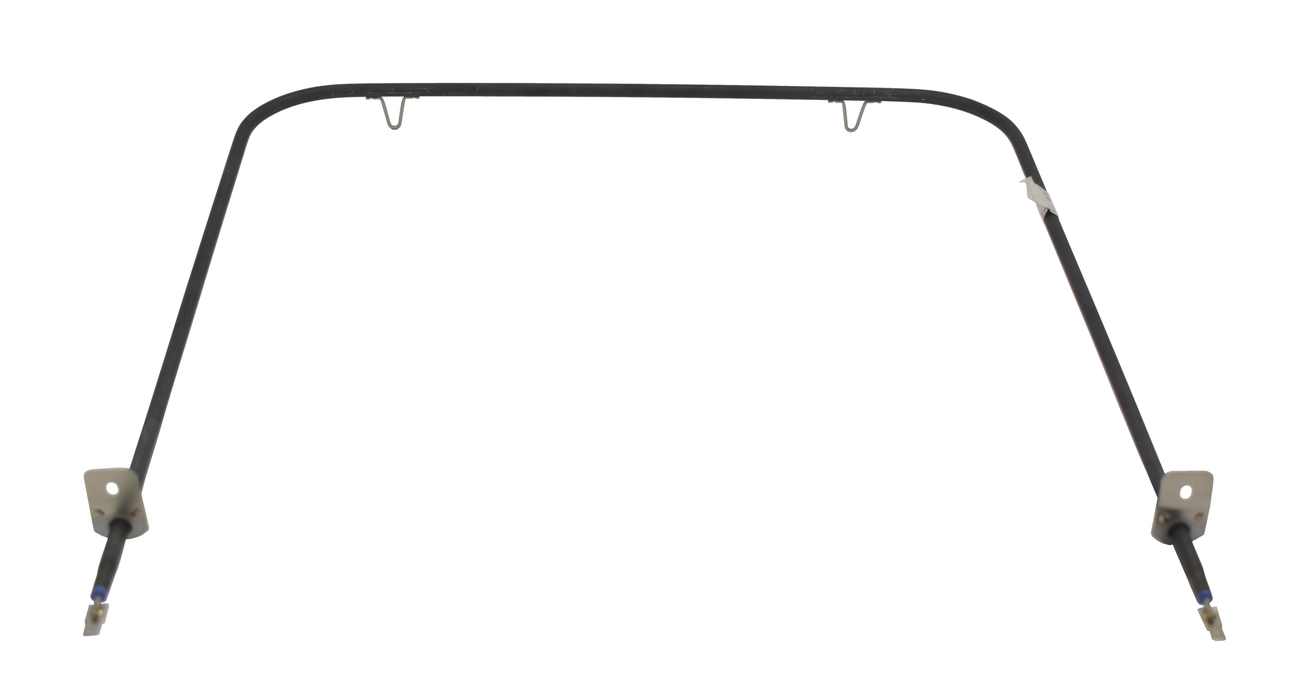

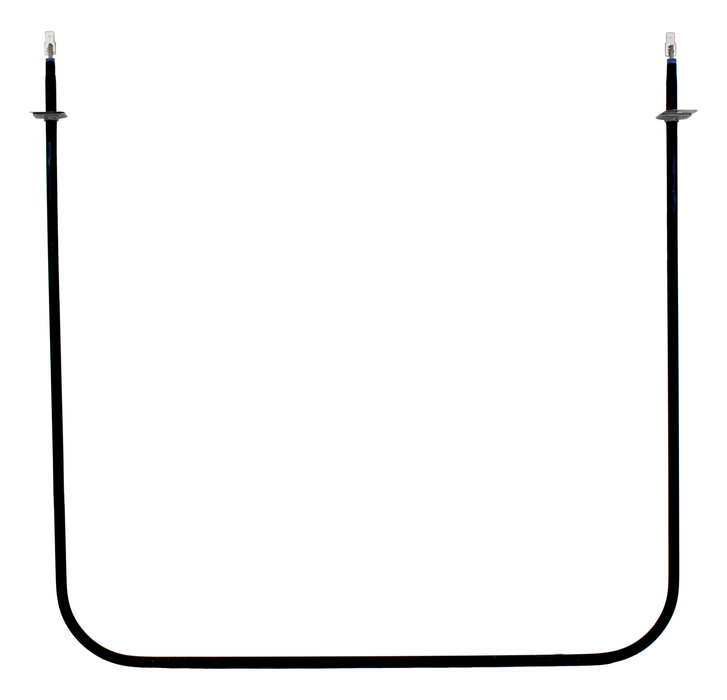

Therm Coil Drawing No.: 366R-4094-003 Therm Coil Model No.: TC-5873
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Peerless Enamel: P-143
Whirlpool: CH5873, 458695
Other: YCH5873, AP3770881, 115804
- 2300 W @ 250 V Rating
-

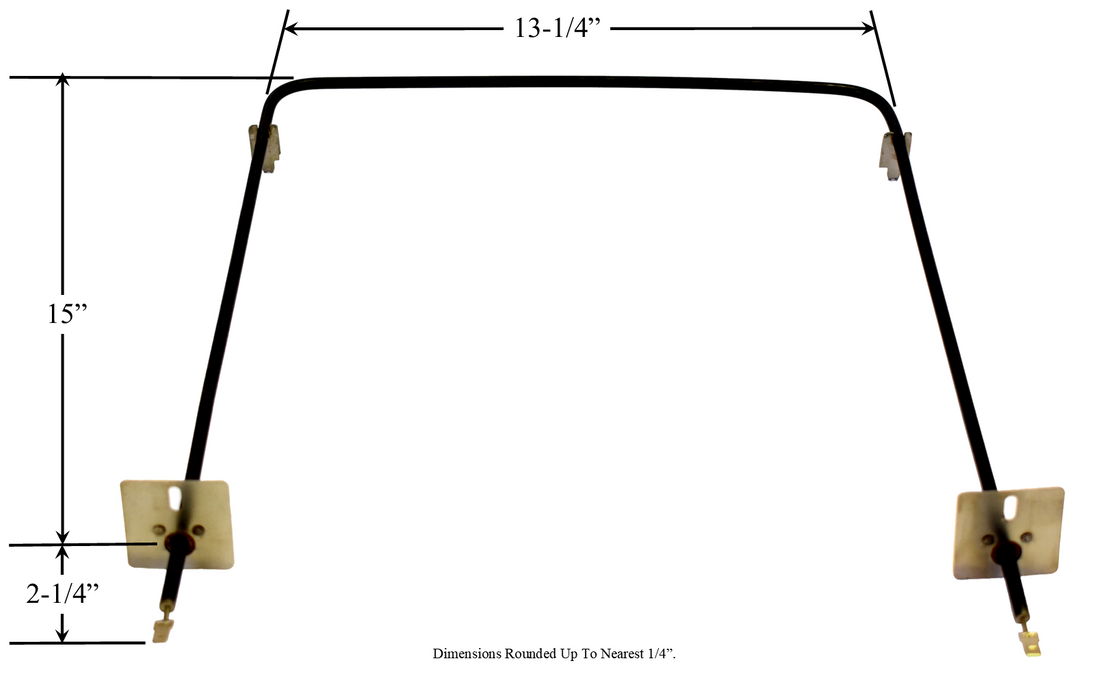

Approx. Overall Size: 17-3/4" Width x 15-3/4" Length From Back Of Element To Mounting Brackets x 2-3/8" Insert From Bracket To Terminal Ends.

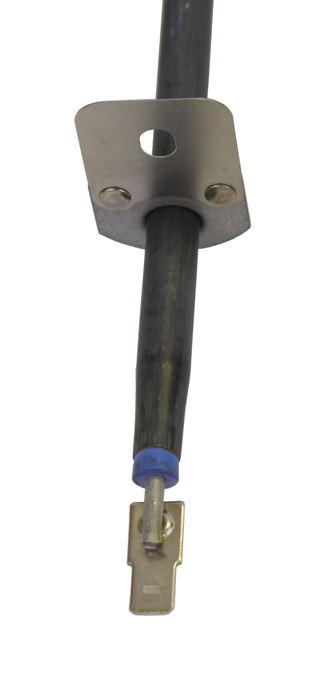

- Male Quick-Connect Push-In Terminals
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.
