CQ2-1011: Copper Element, 1kW, 120V 1-Phase, 1-1/4" NPT Brass Screw Plug Immersion Heater With NEMA 1 General Purpose Enclosure (Unregulated), 6" Immersion Length

Call for Availability
Original price $ 0.00 - Original price $ 0.00
Original price
$ 0.00
$ 0.00 - $ 0.00
Current price $ 0.00
Availability:
Call for Availability

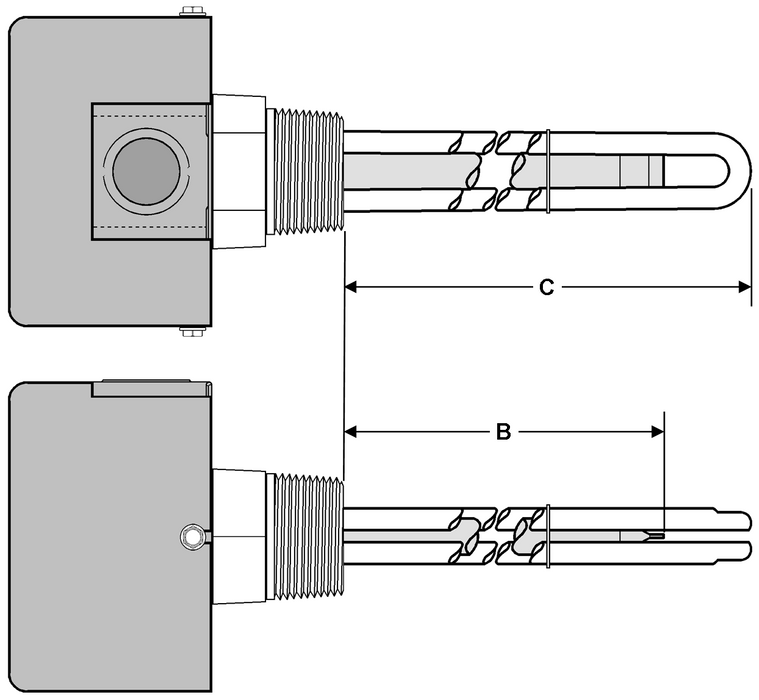

Therm Coil Drawing No.: 353D-1001-015

Therm Coil Model No: CQ2-1011


Series General Information:

  • Copper Sheath with Brass 1-1/4" NPT Screw Plug (Silver Brazed): Our CQ2 models with 48-96 watt density (W/IN.²) are for use in clean water.
  • Unregulated (No Thermostat): If you need this type of element but with temperature control, please see our ECQ2 Models.
  • Includes Thermowell: accommodates up to 3/8" DIA. sensing bulb.
  • NEMA 1, General Purpose Enclosure: the default enclosure type. If you require a Weather-Resistant and/or Explosion-Resistant Enclosures (Also Dust & Weather-Resistant), please contact us at 1-724-872-5007 or rheinhold@thermcoil.com.
  • Screw plug immersion heaters must be fully covered by your liquid to prevent heater failure. (Other medium applications are possible, but require factory consultation.)
  • All 240V models have the option to be operated at 208 VAC with a 25% reduction in wattage rating.

Product Description

  • 1,000W @ 120V Single-Phase With 6" Immersion Length (C Dim.)
  • Copper Sheath Elements: Suitable for clean water applications
  • Unregulated (No Thermostat): See model ECQ2-1511 if you need adjustable thermostat temperature control, or contact us to discuss independent regulation needs and/or requirements
  • Includes Thermowell: 4-1/2" Immersion Length (B Dim.) and accommodates up to 3/8" DIA. sensing bulb..
  • NEMA 1 General Purpose Enclosure
  • 1-1/4" NPT Brass Screw Plug.
  • Screw plug immersion heaters must be fully covered by your liquid to prevent heater failure. (Other medium applications are possible, but require factory consultation.)


Technical Specifications

  • Element Sheath Material: Copper
  • Quantity Of Elements: 2
  • Voltage: 120 VAC
  • Electrical Phasing: 1 (Single-Phase)
  • Wattage: 1,000 W (1 KW)
  • Current: 14.4 Amps
  • Immersion Length: 6" (C Dim.)
  • Watt Density (NOM.): 48 W/IN.²
  • Screw Plug Size: 1-1/4" NPT
  • Screw Plug Material: Brass
  • Enclosure Type: NEMA 1 General Purpose
  • Thermowell Immersed Length: 4-1/2" (B Dim.)
  • Thermowell Accommodates Sensing Bulb Size: .375" DIA.
  • Temperature Control Type: None
  • Temperature Control Range: N/A


    Note: Image(s) may not represent exact item, but one in the same series.
