ESQ2-1511: Steel Element, 1.5KW @ 120V AC, 1-Phase 1-1/4" NPT Steel Screw Plug Immersion Heater With NEMA 1 General Purpose Enclosure and Adjustable Thermostat (60°-250°F), 18" Immersion Length

Therm Coil Model No: ESQ2-1511       Therm Coil Drawing No.: 354B-1225-004

Product Description

• 1,500W @ 120V AC, Single-Phase With 18" Immersion Length (C Dim.)
• Steel Sheath Elements: Suitable for lightweight oil applications
• Regulated with a 60°-250°F Adjustable Thermostat (SPST): If you would like a different temperature range, please contact us at customer.service@thermcoil.com or call 1-724-872-5007.
• Includes Thermowell: 10-1/2" Immersion Length (B Dim.) and accommodates up to 3/8" DIA. sensing bulb.
• NEMA 1 General Purpose Enclosure
• 1-1/4" NPT Steel Screw Plug.
• Screw plug immersion heaters must be fully covered by your liquid to prevent heater failure. (Other medium applications are possible, but require factory consultation.)

Technical Specifications

• Element Sheath Material: Steel
• Quantity Of Elements: 2
• Voltage: 120V AC
• Electrical Phasing: 1 (Single-Phase)
• Wattage: 1,500 W (1.5 KW)
• Immersion Length: 18" (C Dim.)
• Watt Density: 22 W/IN.²
• Screw Plug Size: 1-1/4" NPT
• Screw Plug Material: Steel
• Enclosure Type: NEMA 1 General Purpose
• Thermowell Immersed Length: 10-1/2" (B Dim.)
• Thermowell Accommodates Sensing Bulb Size: .375" DIA.
• Temperature Control Type: Adjustable SPST Thermostat
• Temperature Control Range: 60°-250°F

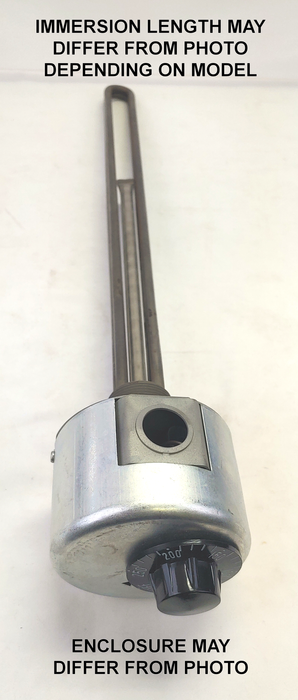

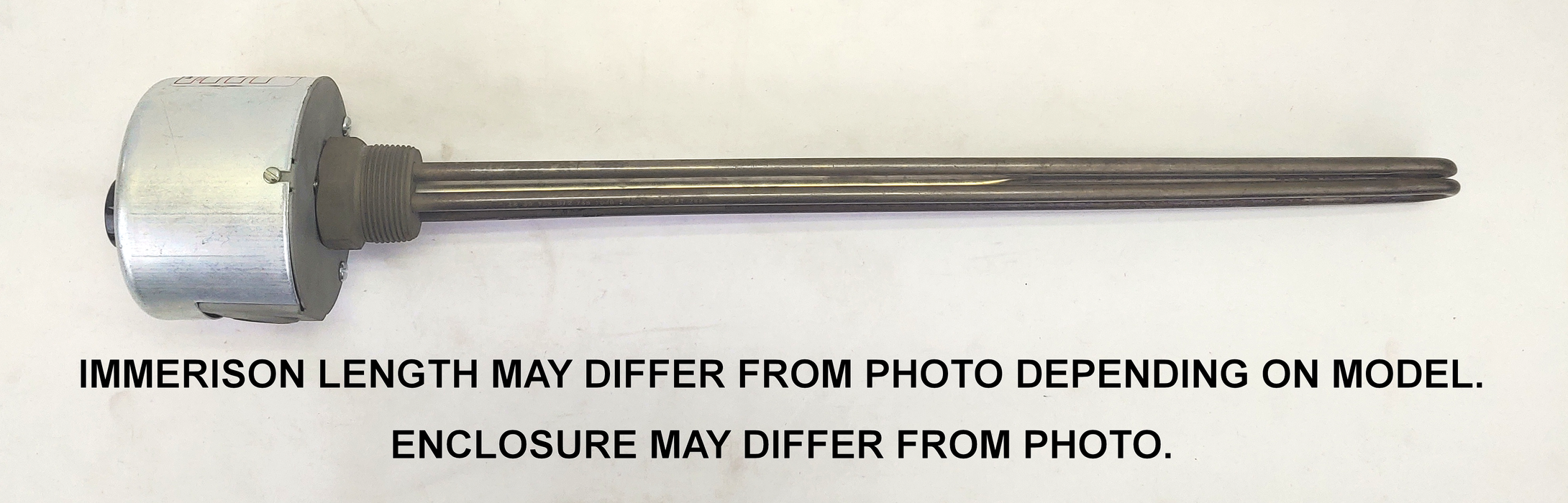

Note: Image(s) may not represent exact item, but one in the same series.
